2010 SMD Datasheet

0.6 Watt Wirewound Surface Mount Power

Features

1% Tolerance standard
Smallest wirewound on the market
Available in low ohmic values

Specifications

Wattage:

0.6

Ohms:

0.01-1K

Voltage:

50

Characteristics

0.6 watts at 25°C ambient

50V max.

1%

0.010Ω–1KΩ

0.1Ω–1Ω: ±90ppm

1Ω–10Ω: ±50ppm

10Ω+: ±20ppm

1000V

12mm, 13” reel, 2500 pcs. per reel

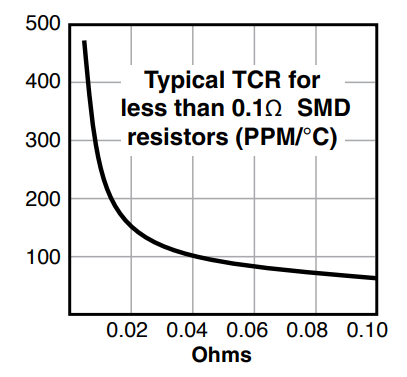

TCR

Derating

Performance Data

(-55°C to 125°C, 1000 cycles)

±0.5%+.05Ω

(1000 hours at 25°C)

±3.0%+.05Ω

(260°C for 10 sec.)

±0.1%+.05Ω

(260°C Solder immersion, 60 sec.)

No visible leaching

(Units at -55°C, then rated power applied)

No mechanical damage

UL Material rating

UL94V0

The temperature rise graph data was obtained by a selection of test substrate size and trace width for each resistor size to limit operating temperatures to safe values.

The operating temperature safe rises are either 100°C substrate temperature rise or 180°C package hot spot temperature rise at 25°C ambient.

FR4: 0.062 in. thick; 0.062 in. traces

Alumina: 0.040 in. thick; 0.010 in. traces

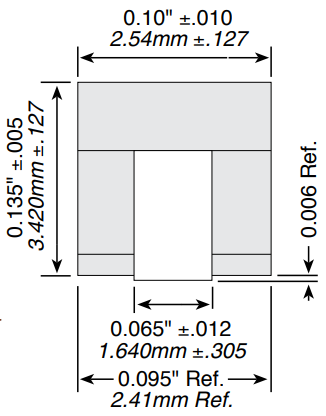

Dimensions

Land Pattern

Tape and Reel

Reels are compatible with major pickand-place machines and made in accordance with EIA 481

Ordering Information

Standard Part Numbers for 2010 SMD

RW0S6BBR010FE

RW0S6BBR015FE

RW0S6BBR020FE

RW0S6BBR030FE

RW0S6BBR050FE

RW0S6BBR075FE

RW0S6BBR100FE

RW0S6BBR240FE

RW0S6BBR470FE

RW0S6BBR750FE

RW0S6BB1R00FE

RW0S6BB2R00FE

RW0S6BB5R00FE

RW0S6BB7R50FE

RW0S6BB10R0FE

RW0S6BB15R0FE

RW0S6BB24R0FE

RW0S6BB36R0FE

RW0S6BB47R0FE

RW0S6BB100RFE
