60S Series Datasheet

Surface Mount Metal Plate Current Sense

Res 60s product image

Features

  • Superior thermal expansion cycling
  • Inductance less than 10 nanohenries
  • Flameproof
  • Solderable pads: Tin (Sn) plate
  • Lead flexible for thermal expansion
  • Low termination stress (“J” terminals)
  • Shape provides cooler operation
  • Custom values available

Applications

  • Current sensing
  • Low inductance
  • AC applications
  • Feedback

Specifications

Tolerance:

±5%

TCR (ppm/C°):

±100

Power Rating (watts):

0.25

Resistance Values (Ω):

0.003, 0.005

Rated Ambient Temp. (°C):

+70°C

Operating Temp. Range (°C):

-40 - +155

Qty./Reel:

2000

Tolerance:

±5%

TCR (ppm/C°):

±100

Power Rating (watts):

0.5

Resistance Values (Ω):

0.002, 0.0375, 0.005, 0.008

Rated Ambient Temp. (°C):

+70°C

Operating Temp. Range (°C):

-40 - +155

Qty./Reel:

2000

Tolerance:

±5%

TCR (ppm/C°):

±350

Power Rating (watts):

0.25

Resistance Values (Ω):

0.002, 0.003

Rated Ambient Temp. (°C):

+85°C

Operating Temp. Range (°C):

-40 - +155

Qty./Reel:

1500



* 605SJR discontinued March 2017, Specifications remain for reference only

Characteristics

Requirement:

Within regulated tolerance

Test Method (JIS C 5202):

25°C

Requirement:

Within specified T.C.R.

Test Method (JIS C 5202):

Room temperature/100°C up

Requirement:

±2.0%

Test Method (JIS C 5202):

350°C ± 10°C, 3 seconds

Requirement:

95% coverage minimum

Test Method (JIS C 5202):

235°C ± 5°C, 5 seconds

Requirement:

±3.0%

Test Method (JIS C 5202):

40°C, 90 - 95% RH, 1000 hours, no load

Requirement:

±5.0%

Test Method (JIS C 5202):

Power rating x 1/10, 40°C, 90 - 95% RH, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle

Requirement:

±5.0%

Test Method (JIS C 5202):

Rating voltage, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle

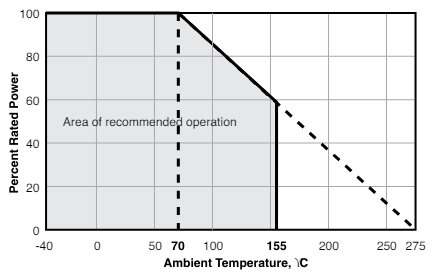

Derating

Res 60s derating graph

Dimensions

inches (mm)

L:

0.39 ± .008 (10.0 ± 0.2)

L2:

0.018 ± .008 (2 ± 0.2)

H:

0.024 (0.6 ± 0.1)

W:

0.118 ± .008 (3.0 ± 0.2)

L:

0.39 ± .008 (10.0 ± 0.2)

L2:

0.018 ± .008 (2 ± 0.2)

H:

0.079 (2 max.)

W:

0.20 ± .008 (5.2 ± 0.2)

L:

0.44 ± .016 (11.2 ± 0.4)

H:

0.137 ± .016 (3.5 ± 0.4)

D:

0.095 ± .010 (2.35 ± 0.25)

A:

0.189 ± .030 (4.8 ± .75)

W:

0.126 ± .016 (3.2 ± 0.40)

Res 60s dimensions

Packaging Specifications

Tape

A:

0.057 (1.45 ± 0.2)

B:

0.134 (3.4 ± 0.2)

W:

0.079 (2.0)

T1:

0.098 (2.5 ± 0.2)

A:

0.057 (1.45 ± 0.2)

B:

0.224 (5.7 ± 0.2)

W:

0.079 (2.0)

T1:

0.091 (2.3 ± 0.2)

A:

0.461 (11.7 ± 0.1)

B:

0.169 (4.3 ± 0.1)

W:

0.945 (24.0 ± 0.2)

T1:

-

Reel

A:

10.0 (255 +0.0 -3.0)

B:

3.15 (80 +1.0 -0)

C:

0.511 (13.0 ±0.2)

E:

0.079 (2.0 ±0.5)

W1:

1.0 (25.5 ± 2.0)

qty./reel:

2000

A:

10.0 (255 +0.0 -3.0)

B:

3.15 (80 +1.0 -0)

C:

0.511 (13.0 ±0.2)

E:

0.079 (2.0 ±0.5)

W1:

1.0 (25.5 ± 2.0)

qty./reel:

2000

A:

12.99 (330 ± 2.0)

B:

3.94 (100 ± 2.0)

C:

0.511 (13.0 ±0.2)

E:

0.079 (2.0 ±0.5)

W1:

1.0 (25.5 ± 2.0)

qty./reel:

1500

Res 60s reel image

Land Pattern

M:

0.622 (16.0)

N:

0.118 (3.0)

O:

0.150 (3.8)

L:

0.394 (10.0)

M:

0.622 (16.0)

N:

0.118 (3.0)

O:

0.236 (6.0)

L:

0.394 (10.0)

M:

0.369 (9.36)

N:

0.121 (3.07)

O:

0.142 (3.60)

L:

0.127 (3.22)

Res 60s land pattern image

Ordering Information

Res 60s Ordering Info



Standard Part Numbers for 60S Series

Res 60s standard part numbers
