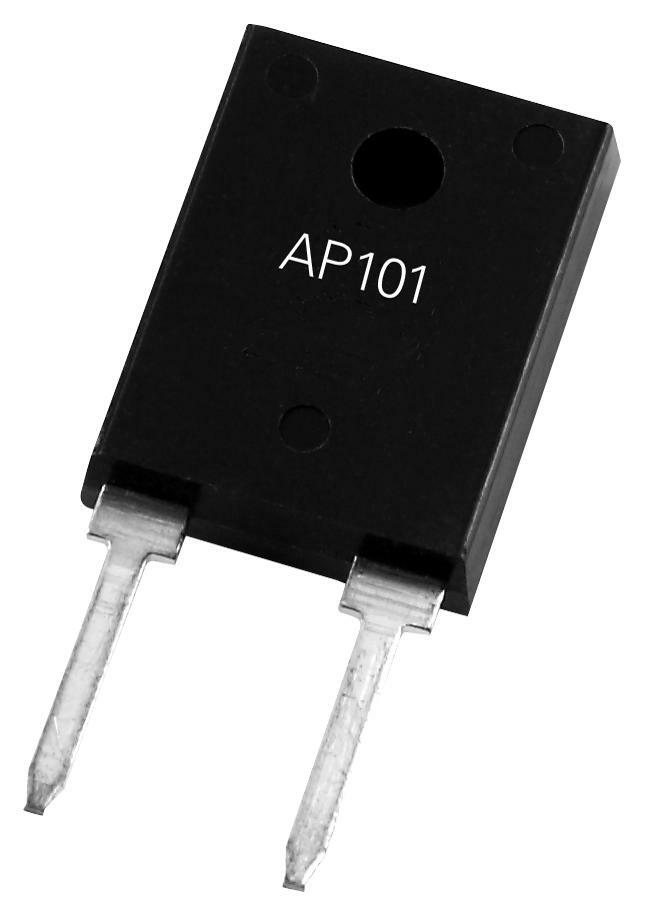

AP101 Datasheet

Tolerance Pref. Value Range:

± 1% (F) E12, E24, E96

± 5% (J) E12, E24

± 10% (K) E12

TCR (ppm/ ̊C):

Not specified

Tolerance Pref. Value Range:

± 1% (F) E12, E24, E96

± 5% (J) E12, E24

± 10% (K) E12

TCR (ppm/ ̊C):

± 300ppm/°C

Tolerance Pref. Value Range:

± 1% (F) E12, E24, E96

± 5% (J) E12, E24

± 10% (K) E12

TCR (ppm/ ̊C):

± 100ppm/°C, ± 200ppm/°C

Tolerance Pref. Value Range:

± 1% (F) E12, E24, E96

± 5% (J) E12, E24

± 10% (K) E12

TCR (ppm/ ̊C):

± 50ppm/°C, ± 100ppm/°C, ± 200ppm/°C

± 1% (F), ± 5% (J), ± 10% (K)

-65°C to +175°C

± 50ppm/°C to ± 300ppm/°C (re to ohmic values), referenced to 25°C, ∆R taken at +105°C

700V max

1800Vac 60 seconds, ∆R±0.15%

10G min

0.9 Nm

25°C, rated at 3.5W

∆R±1.0%, Rated power, 2,000 hours

90% min. coverage, 245±5°C for 3 seconds

∆R±0.5%,1.5 times rated power and V (dc) ≤ 1.5VMax. for 5 seconds

∆R±0.5%, -10°C - +65°C, RH>90%, cycle 240 hours

∆R±0.5%, -65°C - 150°C, 100 cycles

∆R±0.2%, (Pull Test) 2.4N

∆R±0.4%, 20g peak
