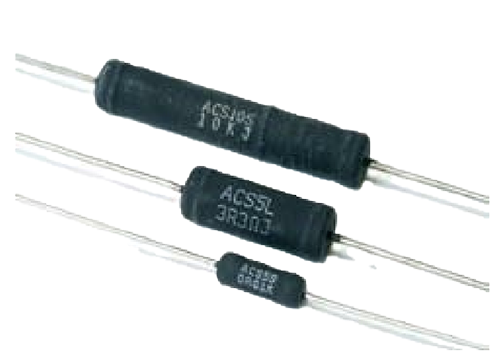

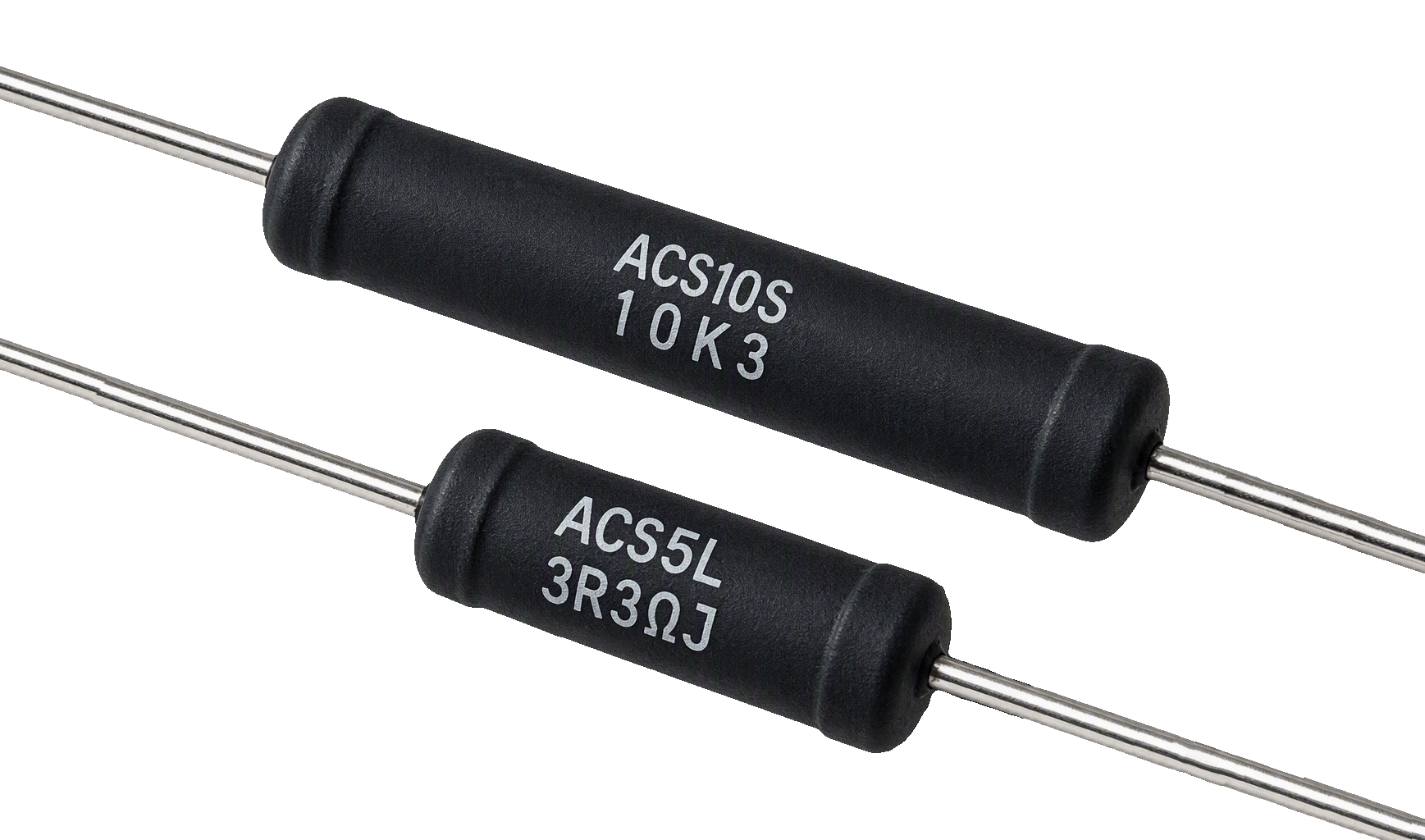

The design of the ACS resistor provides a good balance of
power density, stability and resistance to environment for a
broad range of industrial power applications, such as drives and
controls.
- Good ratio between power capability and physical size
- Wound to maximise high pulse capability
- Low inductive versions available
- Available on tape and reel 1W to 5W or bulk
- RoHS Compliant
Characteristics
Specifications
Derating
Ordering Procedure
Standard Resistor To specify standard: Series, Wattage Rating, Winding Type, Resistance and
Tolerance Code, e.g.: ACS3 18K F ACS3N 18K F (non-inductive) Tolerance (Code) ±1% (F), ±5% (J), ±10% (K)
Typical Inductance
As specified by MIL-R-39007. Max series inductance at 0.5MHz.
Dimensions
The information contained herein does not form part of a contract and is subject to change without notice. Arcol operate a policy of continual product development, therefore, specifications may change.
It is the responsibility of the customer to ensure that the component selected from our range is suitable for the intended application. If in doubt please ask Arcol.
