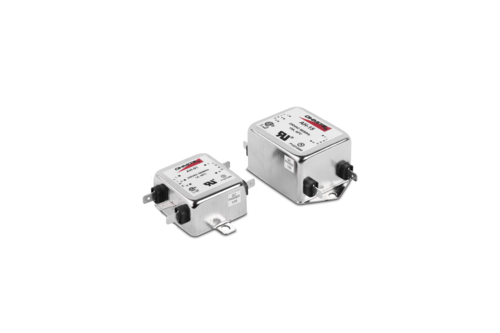

AHM-L Series - Medical Dual Stage - Low Frequency Filter

The AHM-L series includes design elements and components providing additional differential mode rejection in low frequency. For use with switched mode power supplies to reduce noise from power supply back into the mains. Filter also provides good attenuation of incoming interference. The AHL is available in the same case sizes as the AH series and contains the same 1A to 50A current rating range.

The AHM-L Series is designed for medical applications requiring high performance with no leakage currents.

  • Meets the requirements of IEC 60601 -1 Standard.
  • Compliance to the requirements of the standard IEC 61010-1.
  • Available in different mounting style and termination.
  • Available in different circuit configuration.
  • Tested and approved per the standards UL 60939-3
