AP836 Datasheet

Available Tolerance & Pref.Value Ranges:

J (±5%) K (±10%)

Available TCR:

Not specified

Available Tolerance & Pref.Value Ranges:

F (±1%) , J (±5%) ,K (±10%)

Available TCR:

±300ppm/ ̊C

Available Tolerance & Pref.Value Ranges:

F (±1%) , J (±5%) ,K (±10%)

Available TCR:

±100ppm/ ̊C, ±200ppm/ ̊C

Available Tolerance & Pref.Value Ranges:

D (±0.5%) F (±1%) J (±5%) K (±10%)

Available TCR:

±50ppm/ ̊C, ±100ppm/ ̊C, ±200ppm/ ̊C

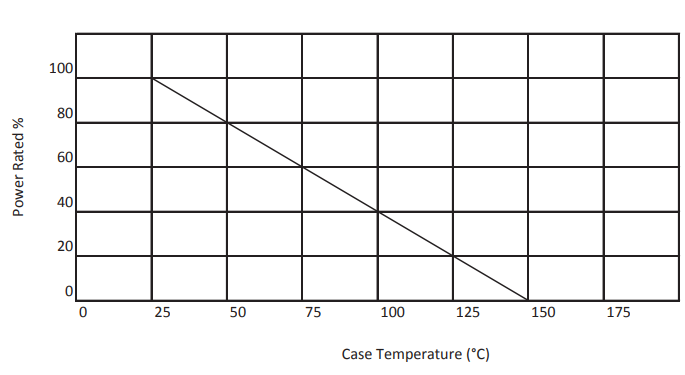

2.50 Watts in free air

350V max

1800Vac

10GΩ min

-65 ̊C to +150 ̊C

As specified, referenced to 25 ̊C, ∆R taken at +105 ̊C

∆R ±0.3%, 2 times rated power with applied voltage not to exceed 1.5 times maximum continuous operating voltage for 5 seconds

∆R ±1.0%, 2000 hours at rated power

∆R ±0.5%, 40 ±2 ̊C, 90 - 95% R.H max working voltage for 1000 hours with 1.5 hours “ON” and 0.5 hours “OFF“

90% min coverage, 245 ±5 ̊C for 3 seconds

∆R ±0.3%, -65 ̊C - 150 ̊C, 100 cycles

∆R ±0.2%, 2.4 N

∆R ±0.2%, 20g peak
