PDFs and Datasheets ACPP Datasheet

ACPP Datasheet

Precision Surface Mount Passivated Resistors

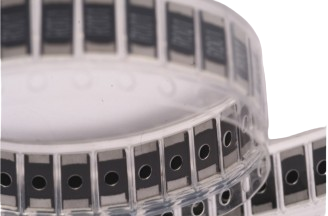

Acpp product image



Features

  • Precision thin film technology
  • Extended ohmic range 10R – 1M5
  • Precision to ±0.1% and 15ppm/ºC
  • Passivated range for superior humidity performance
  • RoHS Compliant

Characteristics

±0.1% (B), ± 0.25% (C), ± 0.5% (D)

-55°C to +155°C

±15ppm/°C, ±25ppm/°C, ±50ppm/°C

≤±0.2%, ≤±0.1% (ACPP0402), RCWV*2.5 or maximum overload voltage (whichever is lowest) for 2 seconds

≤±0.02%, ≤±0.1% (ACPP0402), -55ºC +150ºC 100 cycles

≤±0.05%, ≤±0.25% (ACPP0402), 70 ± 2ºC, RCWV for 1000 hours with 1.5 hours on and 0.5 hours off

≤±0.05%, ≤±0.5% (ACPP0402), 1000 hours at 40±2ºC, 90-95% R.H with 1.5 hours on and 0.5 hours off

Specifications

Wattage

0.0625

Maximum operating voltage

25V

Maximum overload voltage

50V

TCR ppm/°C: ±15

Ohmic value range: 49R9 - 12K

TCR ppm/°C: ±25

Ohmic value range: 24R9 - 24K9

Wattage

0.0625

Maximum operating voltage

50V

Maximum overload voltage

100V

TCR ppm/°C: ±15

Ohmic value range: 24R9 - 332K

TCR ppm/°C: ±25

Ohmic value range: 24R9 - 332K

TCR ppm/°C: ±50

Ohmic value range: 24R9 - 332K

Wattage

0.1

Maximum operating voltage

100V

Maximum overload voltage

200V

TCR ppm/°C: ±15

Ohmic value range: 10R - 1M

TCR ppm/°C: ±25

Ohmic value range: 10R - 1M

TCR ppm/°C: ±50

Ohmic value range: 10R - 1M

Wattage

0.125

Maximum operating voltage

150V

Maximum overload voltage

300V

TCR ppm/°C: ±15

Ohmic value range: 10R - 1M

TCR ppm/°C: ±25

Ohmic value range: 10R - 1M

TCR ppm/°C: ±50

Ohmic value range: 10R - 1M

Wattage

0.25

Maximum operating voltage

150V

Maximum overload voltage

300V

TCR ppm/°C: ±15

Ohmic value range: 24R9 - 1M

TCR ppm/°C: ±25

Ohmic value range: 10R - 1M5

TCR ppm/°C: ±50

Ohmic value range: 10R - 1M5

Wattage

0.5

Maximum operating voltage

150V

Maximum overload voltage

300V

TCR ppm/°C: ±15

Ohmic value range: 24R9 - 1M

TCR ppm/°C: ±25

Ohmic value range: 10R - 1M5

TCR ppm/°C: ±50

Ohmic value range: 10R - 1M5

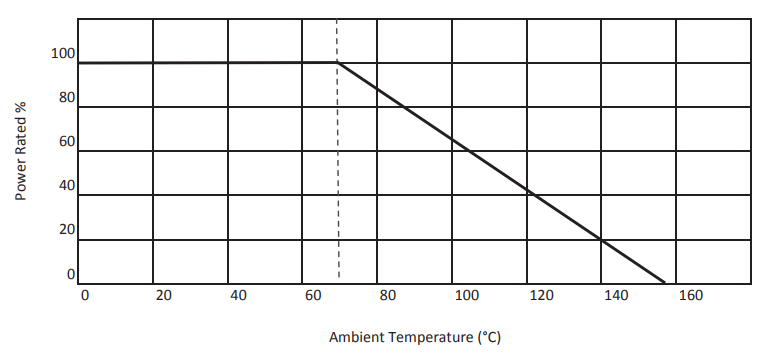

Derating Curve

ACPP derating curve chart.

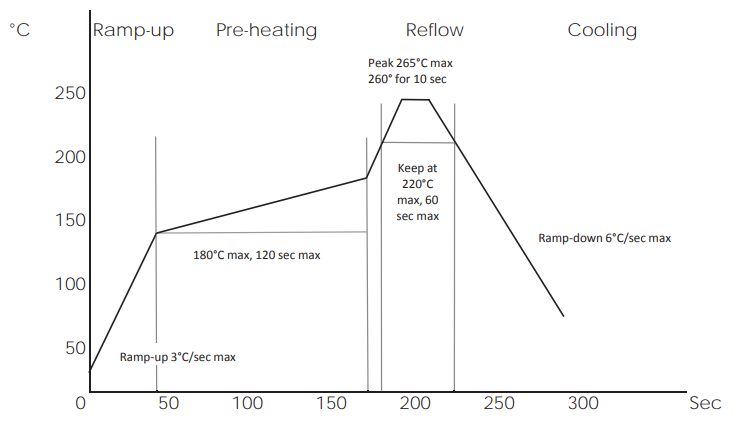

Soldering Curve

ACPP Soldering curve chart

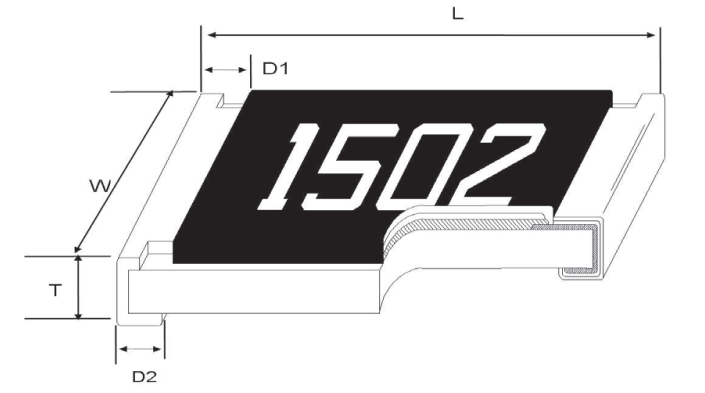

Dimensions

L:

1.00 ± 0.05

W:

0.50 ± 0.05

T:

0.30 ± 0.05

D1:

0.20 ± 0.10

D2:

0.20 ± 0.10

L:

1.55 ± 0.10

W:

0.80 ± 0.10

T:

0.45 ± 0.10

D1:

0.30 ± 0.20

D2:

0.30 ± 0.20

L:

2.00 ± 0.15

W:

1.25 ± 0.15

T:

0.55 ± 0.10

D1:

0.30 ± 0.20

D2:

0.40 ± 0.20

L:

3.05 ± 0.15

W:

1.55 ± 0.15

T:

0.55 ± 0.10

D1:

0.42 ± 0.20

D2:

0.35 ± 0.20

L:

4.90 ± 0.15

W:

2.40 ± 0.15

T:

0.55 ± 0.10

D1:

0.60 ± 0.30

D2:

0.50 ± 0.20

L:

6.30 ± 0.15

W:

3.10 ± 0.15

T:

0.55 ± 0.10

D1:

0.60 ± 0.30

D2:

0.50 ± 0.20

ACPP Dimensions

Ordering Information



Standard Resistor: Series, Resistance Value, Tolerance, TCR
.i.e: ACPP0603 100K B 15PPM

The information contained herein does not form part of a contract and is subject to change without notice. Arcol operate a policy of continual product development, therefore, specifications may change.

It is the responsibility of the customer to ensure that the component selected from our range is suitable for the intended application. If in doubt please ask Arcol.
