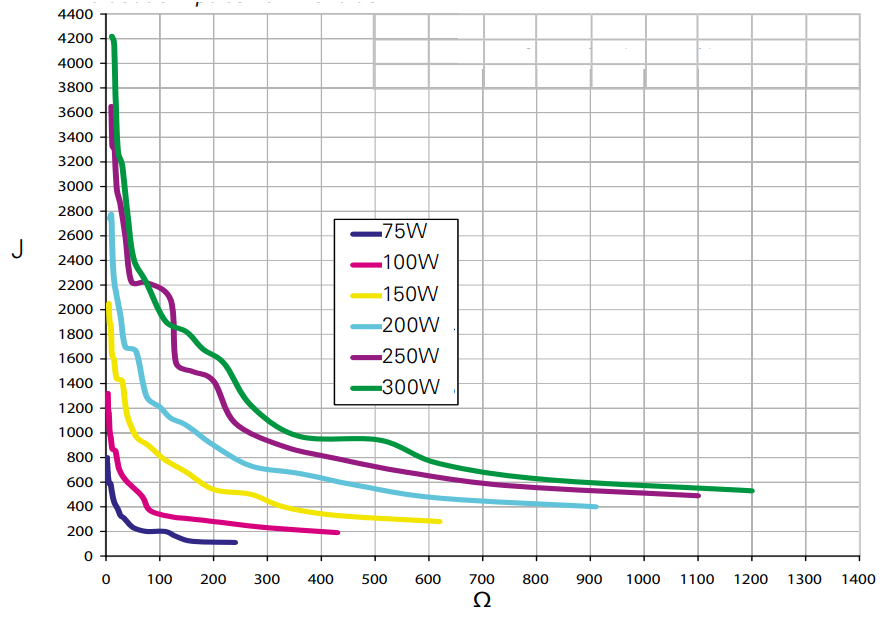

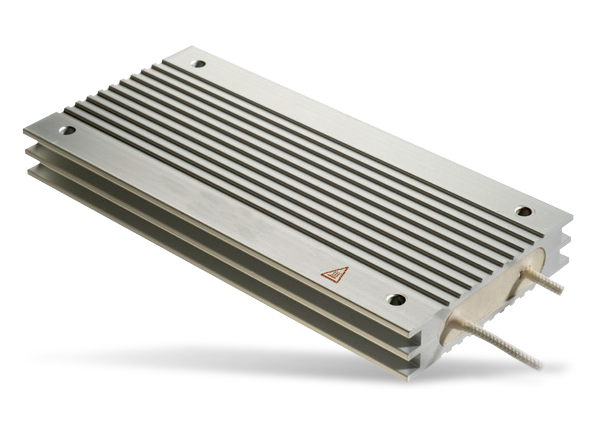

Flexible design with high pulse capability, ideally suited to braking and inverter / converter applications. Enhanced power levels can be achieved when heatsink mounted.
Features
- High power density
- Low profile
- 600V cables as standard
- Heatsink mount for increased power dissipation
- RoHS Compliant
Electrical Specifications
Characteristics
Ordering Procedure
Standard Resistor Series, Resistance Value, Tolerance code (J
±5%) e.g. ARF150 5R6 J
The information contained herein does not form part of a contract and is subject to change without notice. ARCOL operate a policy of continual product development, therefore,specifications may change.
It is the responsibility of the customer to ensure that the component selected from our range is suitable for the intended application. If in doubt please ask ARCOL.
