Due to a Non-Inductive design these elements are ideally suited for high frequency and pulse load applications.
Features
- Non Inductive Performance for HF Applications
- Power Applications 100W to 250W
- Tolerance Options: ±5% or ±10% standard
- Very Good Power/Volume Ratio
- RoHS Compliant

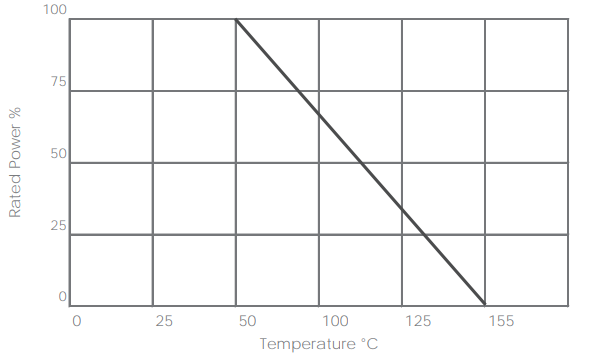

Characteristics
Ordering Procedure
Standard Resistor Specify Series, Watts, Ohmic Value, Tolerance Code e.g.: FPA250 10R J
Pulse Rating
For pulse duration >5.0 µS, and at maximum allowed voltage levels, the maximum peak energy of 0.3J is limited by the average power rating of 250W. For pulse duration times <5.0 µS it has not been possible to reliably establish maximum energy failure point, although it is known that the pulse capability is higher than the curve shown in the graph below.
Whilst these parts are designed to operate in high frequency circuits, where dv/dt is faster than 250V/µS, it is recommended that the resistor is tested under worst case application conditions to ensure that unknown attribute of the application waveform are completely accounted for.
Dimensions
(mm)
The information contained herein does not form part of a contract and is subject to change without notice. ARCOL operate a policy of continual product development therefore, specifications may change.
It is the responsibility of the customer to ensure that the component selected from our range is suitable for the intended application. If in doubt please ask ARCOL
