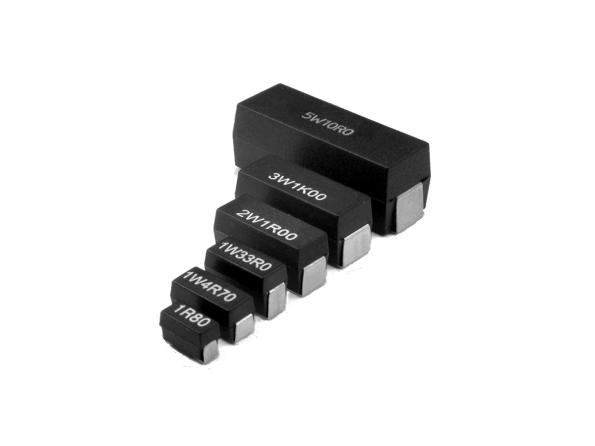

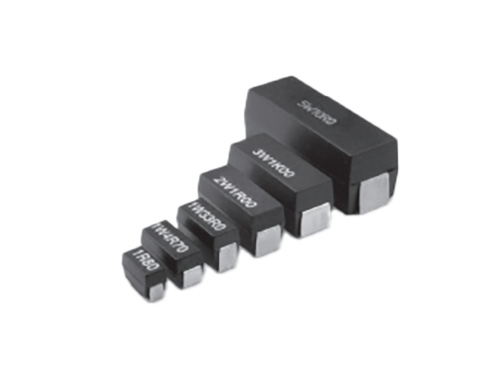

RWS Datasheet

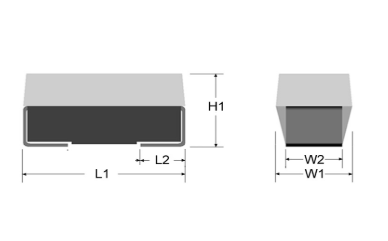

Wattage:

0.5

Tolerance:

D (0.5%)

F (1%)

J (5%)

Resistance Range:

Min: R005

Max: 1K2

Resistance Range - Non-inductive:

Min: R1

Max: 200R

Wattage:

1

Tolerance:

D (0.5%)

F (1%)

J (5%)

Resistance Range:

Min: R005

Max: 5K

Resistance Range - Non-inductive:

Min: R1

Max: 1K

Wattage:

2

Tolerance:

D (0.5%)

F (1%)

J (5%)

Resistance Range:

Min: R005

Max: 12K

Resistance Range - Non-inductive:

Min: R1

Max: 2K4

Wattage:

3

Tolerance:

D (0.5%)

F (1%)

J (5%)

Resistance Range:

Min: R01

Max: 20K

Resistance Range - Non-inductive:

Min: R1

Max: 4K

Wattage:

5

Tolerance:

D (0.5%)

F (1%)

J (5%)

Resistance Range:

Min: R05

Max: 50K

Resistance Range - Non-inductive:

Min: R1

Max: 10K

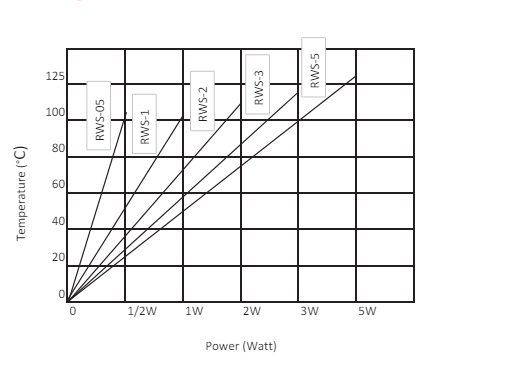

± 0.5% (D),± 1% (F), ± 5% (J)

-55°C to +155°C

± 90ppm/°C R1 - R99, ± 50ppm/°C 1R - 10R, ± 20ppm/°C > 10R

(PxR) 1/2

5 times rated wattage for 5 seconds ±(1.0% + 0.05Ω)∆R

Bath temperature 235±5 ̊C, immersion time 2±0.5 seconds JIS C 5201 4.17>95% of contact face covered new solder

Bath temperature 260±5 ̊C, immersion time 10±1 seconds JIS C 5201 4.18±(0.5% + 0.05Ω)∆R

Test voltage >500V, duration 1 minute JIS C 5201 4.7

70 ̊C ±2 ̊C, rated DC working voltage applied 1.5 hours on and 0.5 hours off, 1000 hours, ±(2.0% + 0.05Ω)∆R
