The TFBR series provides high power density in a low profile package. Designed for easy assembly and supplied with a variety of terminal styles, the film technology lends itself to high frequency operation due to its low inductance characteristics. The added benefit of high instantaneous pulse capacity also makes the TFBR suitable for braking, snubbing and discharge requirements. This product is RoHS compliant.
Characteristics
Specifications
Derating

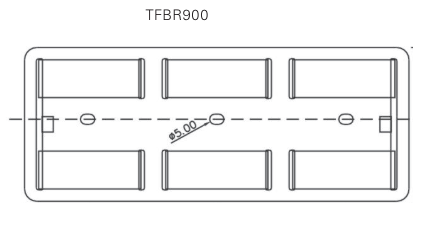

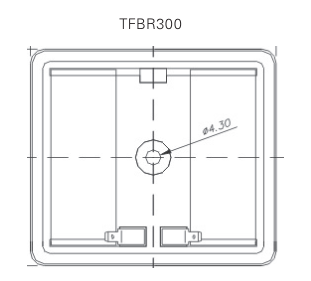

Dimensions
Mounting Notes: It is recommended that the resistor is mounted to a heatsink with a surface finish of <6.3μm with a flatness of <0.05mm. Thermal grease (e.g. Dow Corning DC340 or equivalent) should also be applied between heatsink and resistor. Torque: The resistor should be mounted using an M4/M5 screw head bolt, torqued to a maximum of 6Nm. Cable specifications: AWG 20 - 0,519mm² wire Ø, UL style 1015, 105°C, 600V, 100mm length but other length available on request. Push-on terminals: 5.5x2.8mm, 0.8 mm thick
Ordering Information
Standard Resistor: Series, Resistance Value, Tolerance, Terminal
Terminal types: F - 100mm Cable, L - Solder pad, M - Push-on terminals
e.g TFBR100S 10R K F
The information contained herein does not form part of a contract and is subject to change without notice. Arcol operate a policy of continual product development, therefore, specifications may change.
It is the responsibility of the customer to ensure that the component selected from our range is suitable for the intended application. If in doubt please ask Arcol.
