Element resistors, or Shunts, are produced using a solid piece of resistance material. Depending on the material chosen, these resistors can yield great stability in very low values. This stability can be difficult to achieve in other constructions at such low values. The low values and single material construction also allow high current handling, in some cases up to 1200 amps. Shunts are commonly used to measure the current output of a circuit. The voltage drop across the extremely lower resistance value can be used to calculate current flow in high current applications.
Axial Wire Element Current Sense
Two and Four Terminal Axial
Ohmite’s 10 series current sense resistors are available in a standard two-terminal axial and a four-terminal Kelvin design. 1%… Read More
Four Terminal Bare Element Resistors
Ohmite’s Four Terminal Bare Element Resistors provide ultra-low resistance values (to 0.0005Ω) for relatively high current requirements, with the advantages… Read More
Surface Mount
Metal Plate Current Sense
The 60S series current sense resistor series design has low termination stress (“J” terminals), and flexible leads for thermal expansion. This terminal… Read More
CRS SMD Shunt Resistor
Available in two sizes ARCOL’s CRS utilizes Electron Beam Welding technology to connect its Manganin or NiCr element to heavy copper connectors. Suitable for typical… Read More
Metal Element Four Terminal
Precision Current Sense

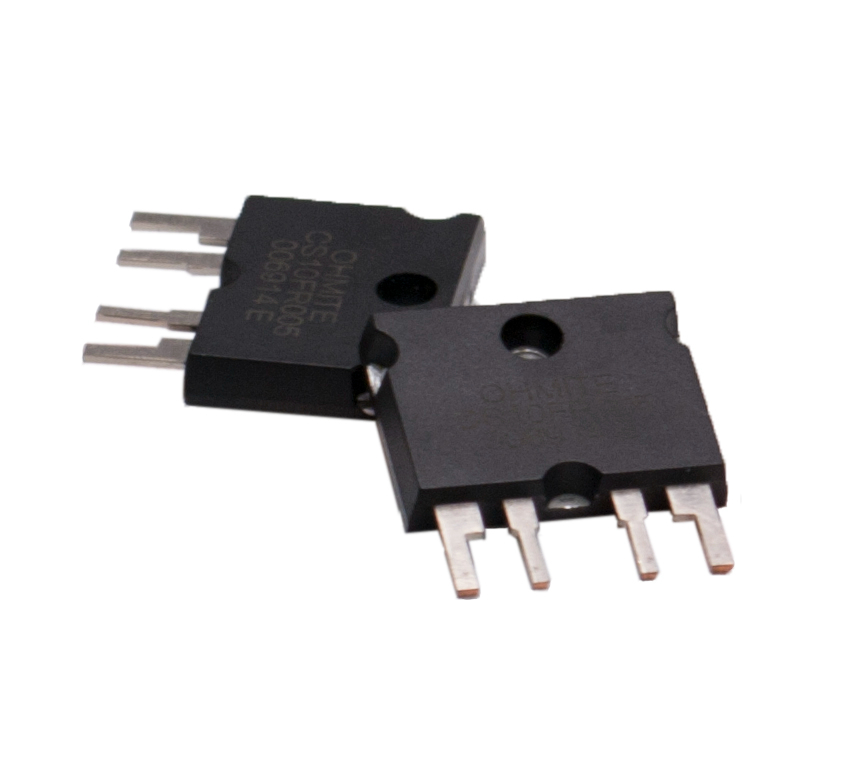

The CS10 Series utilizes state of the art technology to achieve highly reliable non-inductive performance. The CS10 is ideal for current… Read More
High Power Precision Current Sense
The CS5 is a high power precision current sensing resistor designed with four terminals. This resistor series is distinguished by excellent long term stability… Read More
Manganin/NiCr Current Sense
The EBW Series are manufactured using electron beam welding technology. This allows the joining of different alloys with great accuracy and tolerance. The EBW Series… Read More
Ohmite extends its FCSL Series with this 4-terminal Kelvin type FC4L derivative in package sizes up to 5 watts. Employing the same Ni-Cu-Mn resistive element this product affords the user an… Read More
Ohmite continues to add to its complement of Current Sense offerings with the FCSL Series. FCSL incorporates proven metal foil technology to produce the ultimate in a current sense resistor.… Read More
RoHS Compliant Metal Element Kelvin Resistor
Ohmite's FK/GK Series is a low-resistance, 4-terminal element resistor with a power rating up to 5W. This product offers excellent long-term stability… Read More
SMD Jumpers
The JR Series chips are the first ever jumper chips that Ohmite has carried in its 90+ year lifespan. They are some of the highest rated jumper chips on the market, capable of reaching… Read More
Four Terminal High Precision
Current Sense
Current sense resistors enable the measurement of current flow in a circuit by monitoring a voltage drop across a precisely calibrated resistance.… Read More
Metal Element Current Sense

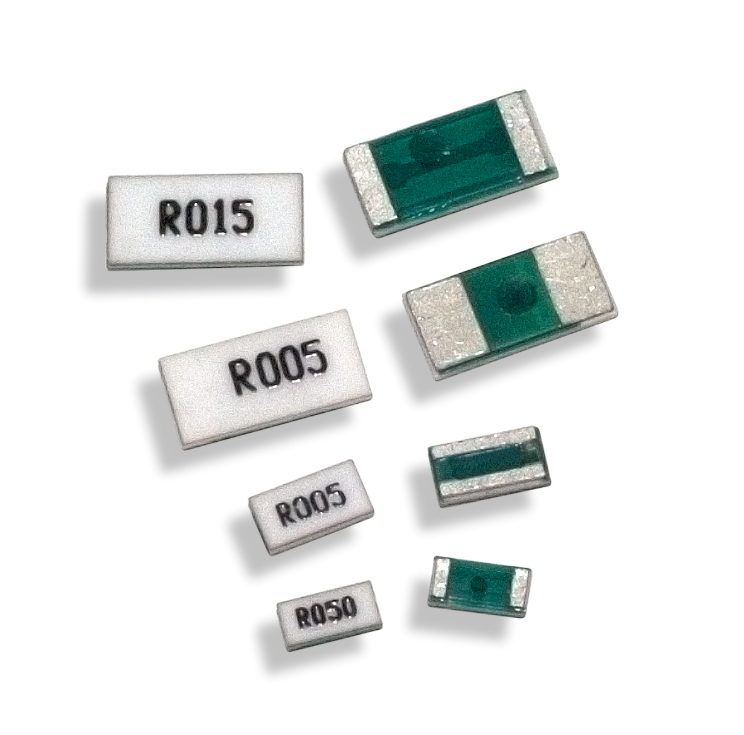

The MCS series current sense resistors are constructed with a Cu Terminal Electrode and Pb Free terminations (60% Sn, 40% Ni). This electrode sits atop a 96% alumina… Read More

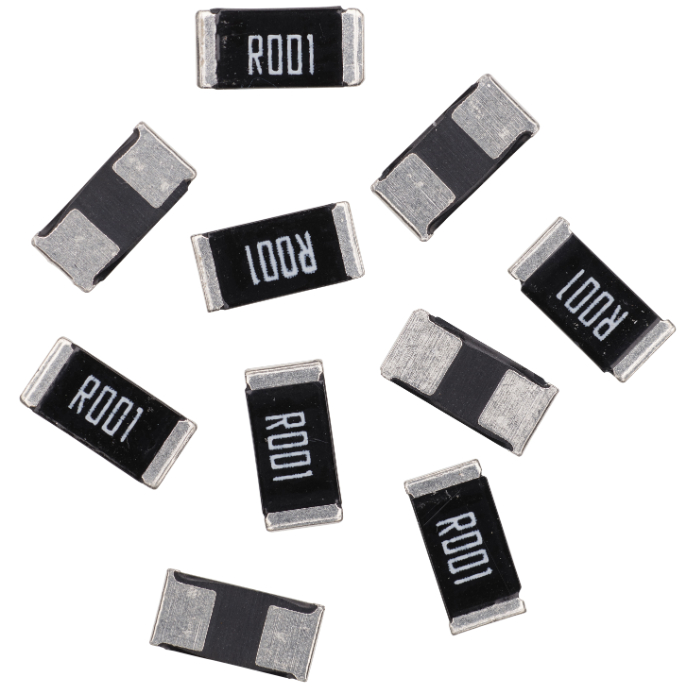

Available in three sizes (1206, 2512, and 2728) the PCS Series offers low resistance values to 0.50mΩ. This product provides users with high precision current sensing and voltage division.… Read More
Ohmite S series shunts are Ideal for lab environments or other applications requiring current handling up to 1200 amps. Large brass terminals are available in multiple types with the resistive… Read More
SHA Series Precision Shunts
Ohmite SHA series shunts are ideal for battery management systems, motor controls or other applications requiring current handling up to 1000 amps. Each part has… Read More
SB Series
The SB Series from Ohmite offers a power rating up to 5 watts and resistance values down to 5 milliohms. It is best used when applied to current sensors for power hybrid applications,… Read More
Precision metal clad resistors designed in four terminal technique, are distinguished by high load capacity as well as excellent accuracy. Isolated voltage and current connections making them… Read More
