FSP Series Datasheet

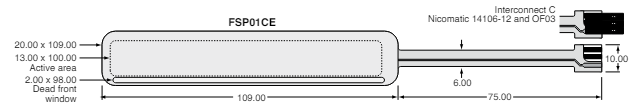

Active area:

13.00 x 100.00mm

Sensor overall width:

20.00 x 109.00mm

Sensor overall length:

184.00mm

Tail length:

75.00mm

Tail width:

10.00mm

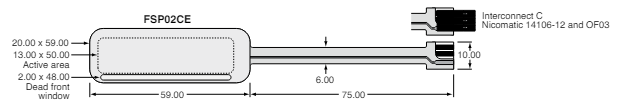

Active area:

13.00 x 50.00mm

Sensor overall width:

20.00 x 59.00mm

Sensor overall length:

134.00mm

Tail length:

75.00mm

Tail width:

10.00mm

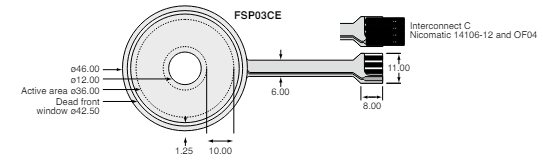

Active area:

39.70 x 39.70mm

Sensor overall width:

ø46.00mm

Sensor overall length:

83.09mm

Tail length:

49.80mm

Tail width:

11.00mm

0.375mm (inc. 0.05mm adhesive)

Shunt

0.25mm

0.50mm

0.125mm

Description:

Force to reach 10MΩ, Average of 100 samples

Value:

< 20g

Description:

linear region of log/log, Higher forces can be achieved with custom sensor and actuation meth ods

Value:

Up to 1kg

Description:

1kg for 48hrs, Per log time

Value:

< 2%

Description:

100 actuations of 1kg, 1 standard deviation/mean

Value:

5%

Description:

100 sensors same batch, 1 std. deviation/mean

Value:

±10%

Description:

–20°C for 250hrs, Avg. change in resistance of 5 sensors

Value:

2%

Description:

+85°C for 250hrs, Avg. change in resistance of 5 sensors

Value:

9%

Description:

+85°C/85%RH for 250hrs, Avg. change in resistance of 5 sensors

Value:

10%

Description:

(10M) 1kg force at 3Hz, Avg. change in resistance of 4 sensors

Value:

4%

Description:

100 actuations of 1kg, Avg. change in resistance of 100 samples

Value:

5%

Description:

100 cycles at 0.5kg,

Value:

–20 to +60°C

Description:

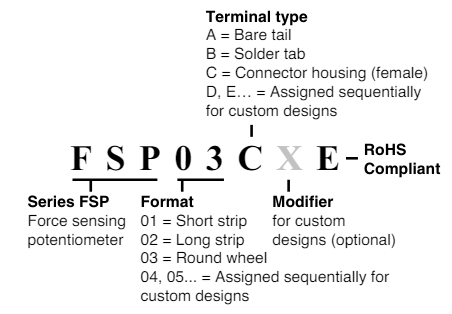

Resistance between pins 1 & 2, Average of 100 parts same batch

Value:

FSP01CE: 1.25k, ±15%

FSP02CE: 0.76k, ±15%

FSP03CE: ±15%
