The FST series design positions the contact surfaces on the side with the active measuring layer. This design produces a sensor in position for face-down mounting. This mounting optimizes current trends in the ‘adhesion instead of soldering’ electronics sector. Using conductive adhesives provides reliable and cost-effective connection to the circuit board and is an alternative to the conventional reflow or wave soldering. The FST series is available in 2 tolerance classes, 0.12% and 0.24% per the DIN EN 60751 specification. Both tolerance classes are available in the three resistance levels of the FST series.
Specifications
Other tolerances and values of resistance are available on request.
Resistance taken at 0°C.
Characteristics

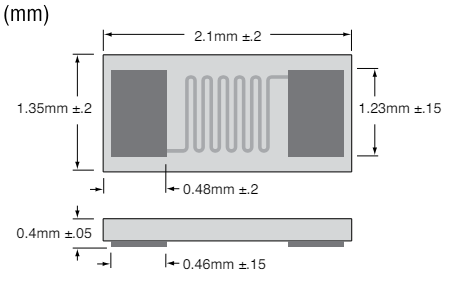

Dimensions

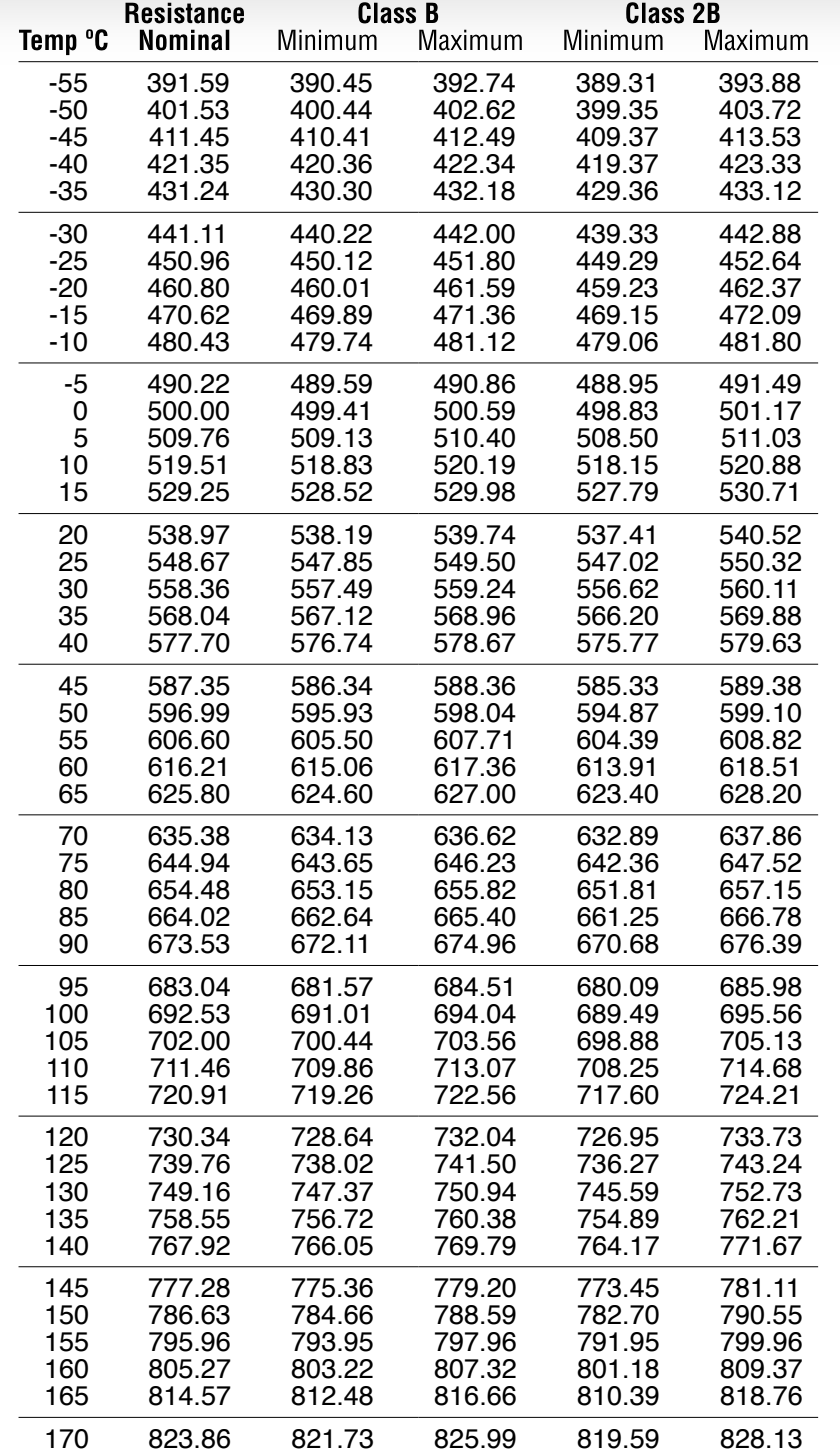

Nominal Resistance Values

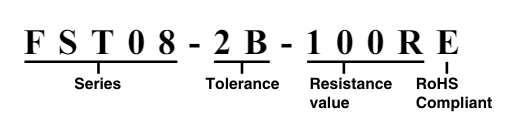

Ordering Information
