Guide to Wirewound Resistors

Construction

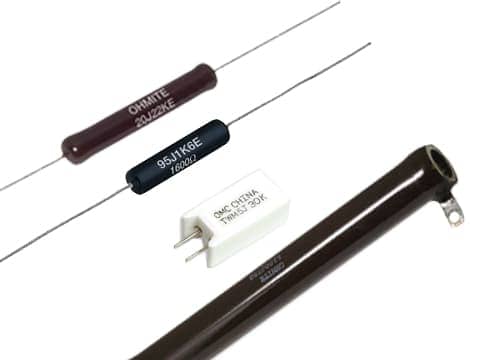

Wirewound resistors consist of a resistive wire, typically made of materials such as nichrome or constantan, wound around a ceramic or fiberglass core. The resistive wire is wound in a helical or spiral pattern, providing precise resistance values and high power dissipation capabilities.

Characteristics

Wirewound resistors exhibit excellent stability, low temperature coefficients of resistance (TCR), and high precision, making them ideal for applications requiring accurate resistance values. They offer high power handling capacities and are capable of dissipating significant amounts of heat without compromising performance.

Temperature Coefficient of Resistance (TCR)

The TCR of wirewound resistors is typically low, ensuring minimal resistance drift over temperature variations. Low TCR values make wirewound resistors suitable for applications requiring stable performance across varying operating temperatures.

Precision and Tolerance

Wirewound resistors provide precise resistance values with tight tolerances, typically ranging from ±1% to ±5%. High precision and tolerance levels ensure accurate and consistent performance in critical electronic circuits.

Power Electronics

Wirewound resistors are extensively used in power electronics applications such as power supplies, voltage regulators, and motor drives. Their high power handling capacity and stability make them ideal for dissipating heat and providing precise resistance in power circuits.

Precision Instrumentation

Wirewound resistors find applications in precision instrumentation and measurement equipment, where accuracy and stability are paramount. They provide precise resistance values with minimal drift, ensuring reliable performance in sensitive electronic circuits.

High-Frequency Applications

Wirewound resistors are suitable for high-frequency applications such as RF (radio frequency) circuits, telecommunications equipment, and antenna matching networks. Their low inductance and high-frequency response make them well-suited for impedance matching and signal conditioning in RF circuits.

Temperature Sensing and Control

Wirewound resistors are utilized in temperature sensing and control systems, where they act as temperature sensors or heating elements. Their stable resistance values and low TCR enable accurate temperature measurements and precise control of heating systems.

Resistance Value and Tolerance

Choose wirewound resistors with resistance values and tolerances that meet the requirements of the application. Consider factors such as precision, stability, and tolerance level when selecting the appropriate resistor.

Power Rating

Select wirewound resistors with power ratings compatible with the expected power dissipation in the circuit. Ensure that the chosen resistor can handle the maximum power without overheating or compromising performance.

Temperature Coefficient

Consider the temperature coefficient of resistance (TCR) when selecting wirewound resistors for applications with wide temperature ranges. Opt for resistors with low TCR values to minimize resistance variation over temperature changes.

Size and Mounting

Evaluate the physical dimensions and mounting options of wirewound resistors to ensure compatibility with the circuit layout and space constraints. Choose resistors with appropriate package sizes and mounting configurations for easy integration into the design.

Environmental Considerations

Assess the environmental conditions of the application, including temperature, humidity, and vibration, and select wirewound resistors with suitable ratings for reliable operation.

Wirewound resistors epitomize precision, stability, and reliability in the world of electronics, offering engineers a robust solution for a wide range of applications. From power electronics and precision instrumentation to RF circuits and temperature control systems, wirewound resistors find applications in diverse fields. By understanding their construction, characteristics, applications, and selection considerations, engineers can harness the full potential of wirewound resistors to design innovative and dependable electronic systems with confidence.
