Extruded Heatsink for Aluminum Housed Resistors - HS Series

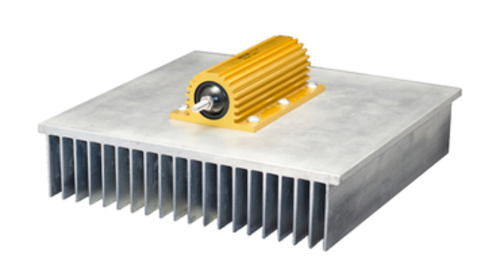

HS Series Heatsink

If you are using popular aluminum housed resistors, look no further than the HS series extruded heatsinks to complete your design. Each heatsink is drilled and tapped to the standard pattern for these popular resistor types. Each HS series heatsink is specifically characterized for each resistor size, so no guesswork is required.

HS Series Heatsink Features

  • Three extrusion styles in four lengths
  • Pre-drilled hole patterns accommodate HS Series chassis mount resistors
  • Each heatsink is designed for a specified HS Series resistor wattage
  • Thermal resistance down to 0.34° C / W
  • Full customizations available, including multiple finishes, bolt patterns, and extrusions
