Little Rebel® Datasheet

Carbon Film Resistors, 5% Tolerance
Available in E24 Ohmic values

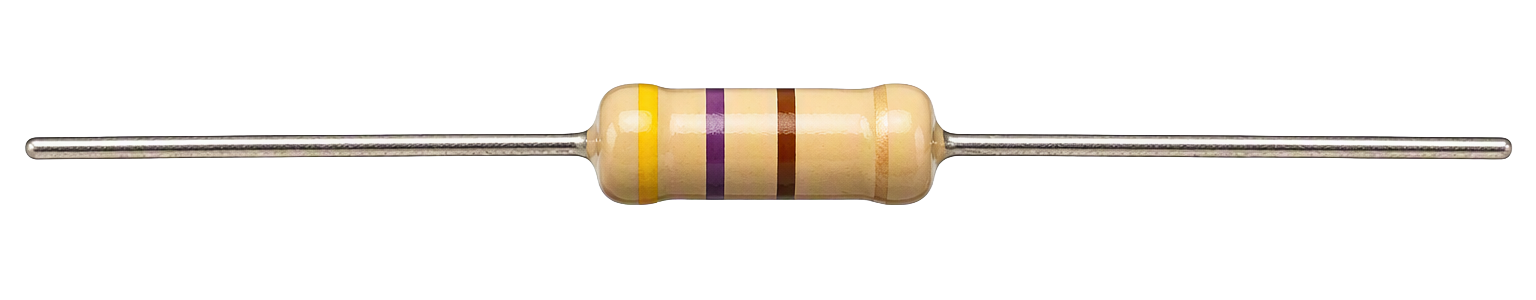

Res Little Rebel product image



Little Rebels are one of Ohmite’s more economical lines of low wattage resistors. Constructed of a pure carbon film deposited on a high-grade ceramic body, these units offer better stability performance than comparable carbon composition resistors. Little Rebels are designed for electrical and electronic applications that demand small sizes and small power ratings plus high performance and reliability.

Features

  • High stability, low noise level, long life.
  • Ideal for applications requiring a steady low power drop.
  • Available in Resistor Cabinet Assortments.
  • 24 Values per decade.

Specifications

Wattage:

0.125

Ohms:

1.0- 1M

Max. Working Voltage:

200

Wattage:

0.250

Ohms:

1.0-10M

Max. Working Voltage:

250

Wattage:

0.500

Ohms:

1.0-10M

Max. Working Voltage:

350

Wattage:

1.00

Ohms:

1.0-10M

Max. Working Voltage:

500

Wattage:

2.00

Ohms:

1.0-10M

Max. Working Voltage:

500



*Available in Cabinet Assortments

Characteristics

High-grade ceramic.

Solder-coated copper lead.

Linearly from 100% @ +70°C to 0% @ 155°C.

±5%.

1Ω to 10: ±350 ppm/°C

11Ω to 91K: -450 ppm/°C

100K to 1M: -700 ppm/°C

1.1M to 10M: -800 to 1500 ppm/°C

OJ: 400 Volts

OK: 500 Volts

OL: 700 Volts

OM: 1000 Volts

ON: 1000 Volts

OJ: 5000

OK: 5000

OL: 4000

OM: 2500

ON: 1000

Dimensions

Wattage: 0.125

Max. Length: 0.138 / 3.5

Max. Diam.: 0.073 / 1.85

Lead ga.: 24

Wattage: 0.250

Max. Length: 0.268 / 6.8

Max. Diam.: 0.099 / 2.5

Lead ga.: 22

Wattage: 0.500

Max. Length: 0.355 / 9.0

Max. Diam.: 0.118 / 3.0

Lead ga.: 22

Wattage: 1.00

Max. Length: 0.473 /12.0

Max. Diam.: 0.197 / 5.0

Lead ga.: 20

Wattage: 2.00

Max. Length: 0.630 / 16.0

Max. Diam.: 0.217 / 5.5

Lead ga.: 20

Res Little Series dimensions

Ordering Information



Standard part numbers for standard resistance values

Res Little Rebel Standard Part Numbers

Res Little Rebel Ordering info
