High Voltage 4 Resistor SMD DIP Package - MC4 Series

MC4 Series

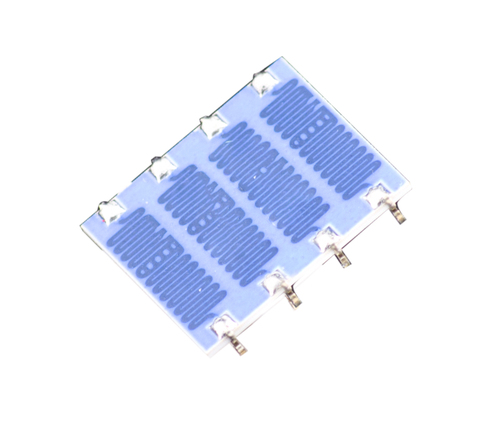

Ohmite’s MC4 Series offers 4 high voltage SMD resistors in a single DIP package, supplied on tape and reel for automated placement. Each resistor provides a rating of 0.75W with a maximum voltage of 2500 VDC. Designers can specify up to 4 different resistor value/ tolerance combinations and connect then individually, in series, or parallel to derive countless results. The flexible S-Bend terminals provide solder joint integrity while leaving space between the resistor pack and the PCB. Standard parts are available in single resistance values for immediate delivery.

High Voltage 4-Resistor SMD DIP Package Features:

  • Unique terminals allow spacing between board and resistor
  • Design allows multiple configurations
  • 2,500 volts max. per resistor per pack; 10KV total
  • Supplied on tape & reel for automated placement
