PDFs and Datasheets OW/OX/OY Series Datasheet

OW/OX/OY SERIES DATASHEET

Ceramic Composition 10% Tolerance

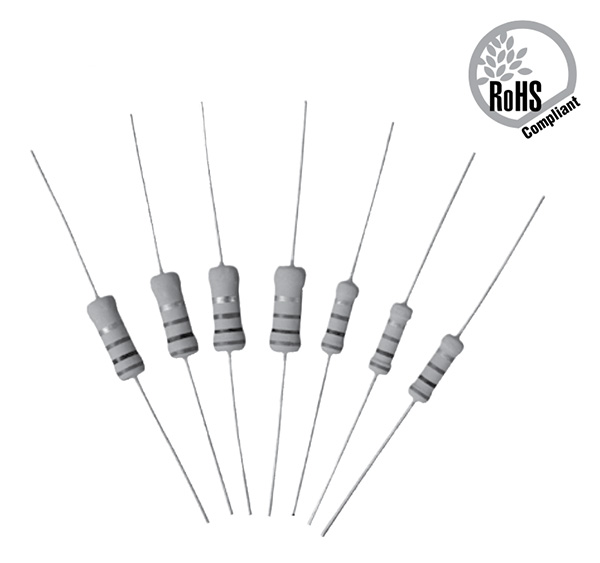

OY series product image



The OW/OX/OY Series of fixed ceramic resistors are ideal for circuitry associated with surges, high peak power or high energy. They offer enhanced performance in high voltage power supplies, R-C snubber circuits, and inrush limiters. The OW/OX/OY resistors can often replace carbon composition resistors which can be difficult to source.



Features

  • Replaces 1 and 2 watt carbon composition resistors
  • Meets high energy density demands
  • High peak power
  • 10% Tolerance
  • Non-Inductive

Specifications

Watts max.*:

0.5

Resistance Range:

4.7Ω-100K

Joules max.**:

30

Max. Working Volts:

200

Watts max.*:

1

Resistance Range:

3.3Ω-100K

Joules max.**:

50

Max. Working Volts:

300

Watts max.*:

2

Resistance Range:

3.3Ω-1M

Joules max.**:

80

Max. Working Volts:

400



* at 70°C. **For a single impulse.

Characteristics

Pb-free solder-coated axial.

Silicone ceramic.

Linear from 100% @ +70°C to 0% @ +200°C.

-40°C to +220°C

±10% standard

Based on 70°C free air rating.

-1300 ±300ppm/°C.

Condition:

MIL-STD-202, Method 108

Maximum ∆R

±5%

Condition:

MIL-STD-202 Method 108

Maximum ∆R

±5%

Condition:

2x rated V 5 sec ON @ 70°C

Maximum ∆R

±(2% +0.05Ω)

Condition:

120

Maximum ∆R

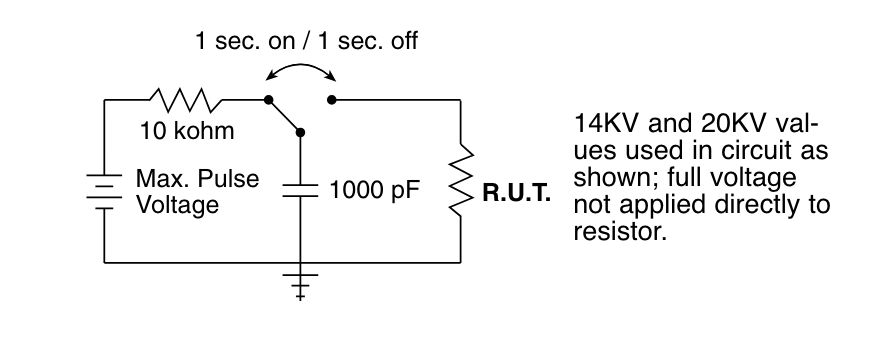

000 cycles. See circuit for test conditions

Condition:

MIL-STD-202 Method 107

Maximum ∆R

±(2% ±0.05Ω)

Condition:

1000 hrs @ 40°C 90 - 95% RH

Maximum ∆R

±5%

OW:

200V

OX:

300V

OY:

400V

OW:

500V

OX:

500V

OY:

700V

OW:

400V

OX:

600V

OY:

800V

OW:

10KV

OX:

14KV

OY:

20KV

OW:

-

OX:

1240V @ 52µF, 40J/ 35 sec.

OY:

1640V @ 52µF, 70J/35 sec.



See figures.

Characteristic figure diagram.

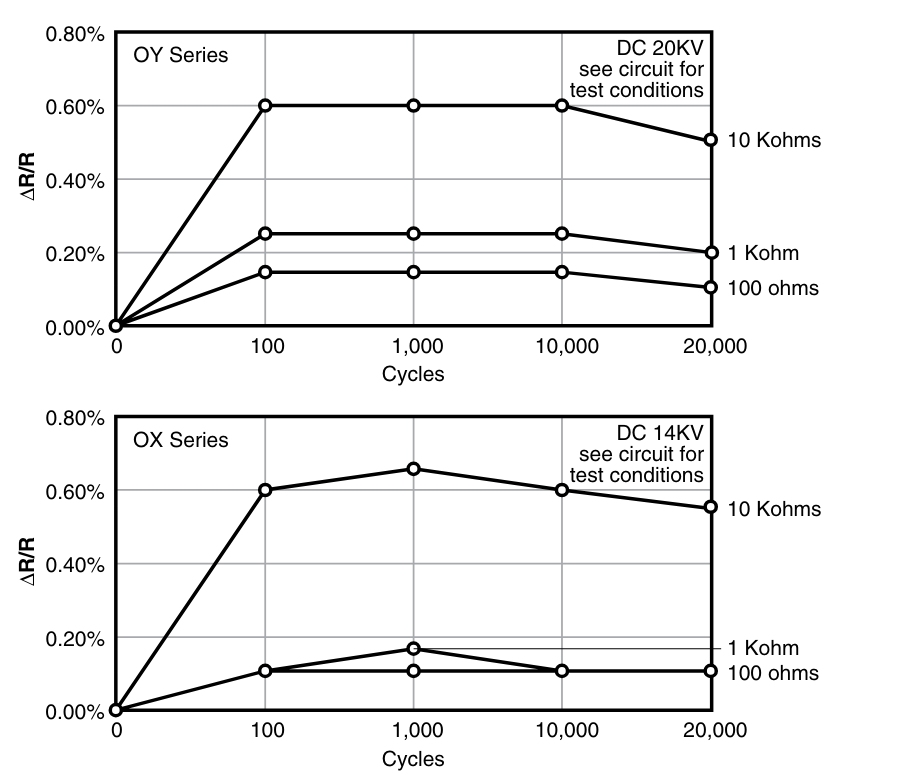

Resistance to Pulse

Resistance to pulse diagram

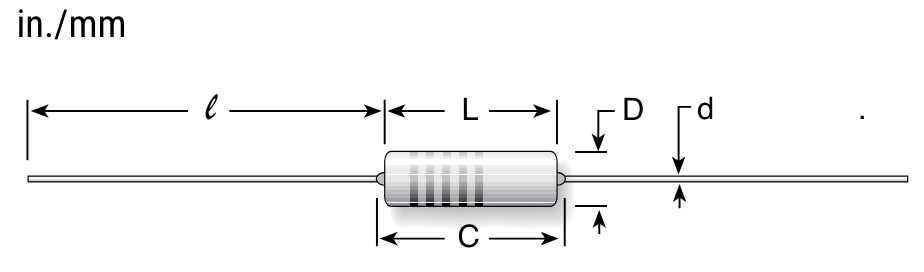

Tape and Reel Dimensions

Length L ±.039 (±1.0):

0.354

Length C Max:

/

Diameter D ±.039 (±1.0):

9

Length l* ±.118 (±3):

0.437/11.1

Diam. d (nom):

0.138/3.5**

Qty. per Reel:

1.18/30

Length L ±.039 (±1.0):

0.65/16.5

Length C Max:

0.748/19.0

Diameter D ±.039 (±1.0):

0.217/5.5

Length l* ±.118 (±3):

1.5/38

Diam. d (nom):

0.031/0.8

Qty. per Reel:

1000

Length L ±.039 (±1.0):

0.748/19.0

Length C Max:

0.886/22.5

Diameter D ±.039 (±1.0):

0.276/7.0

Length l* ±.118 (±3):

1.5/38

Diam. d (nom):

0.031/0.8

Qty. per Reel:

500



*Approx. 27mm for taped & reeled units; lead length changes depending on taping type

**±0.02" (0.5mm)

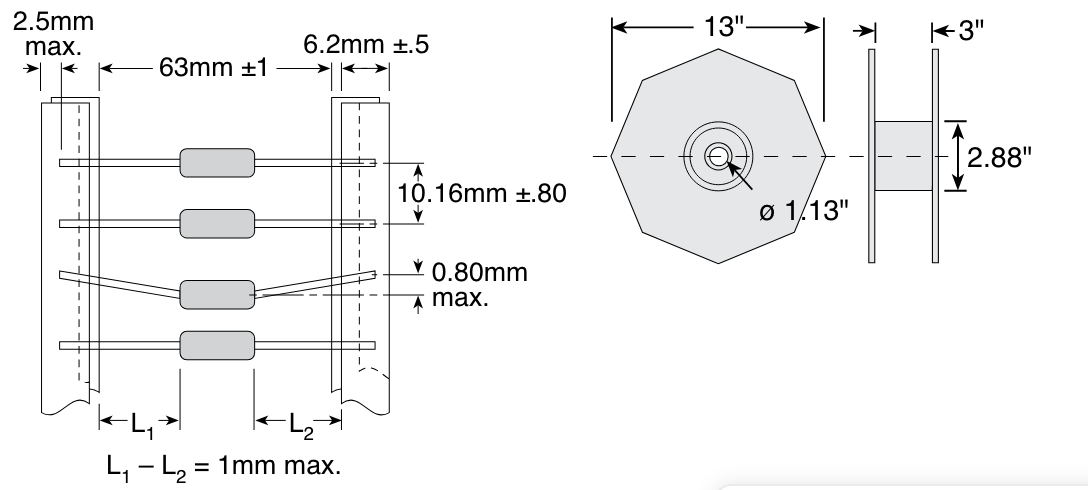

Tape and reel dimensions chart.

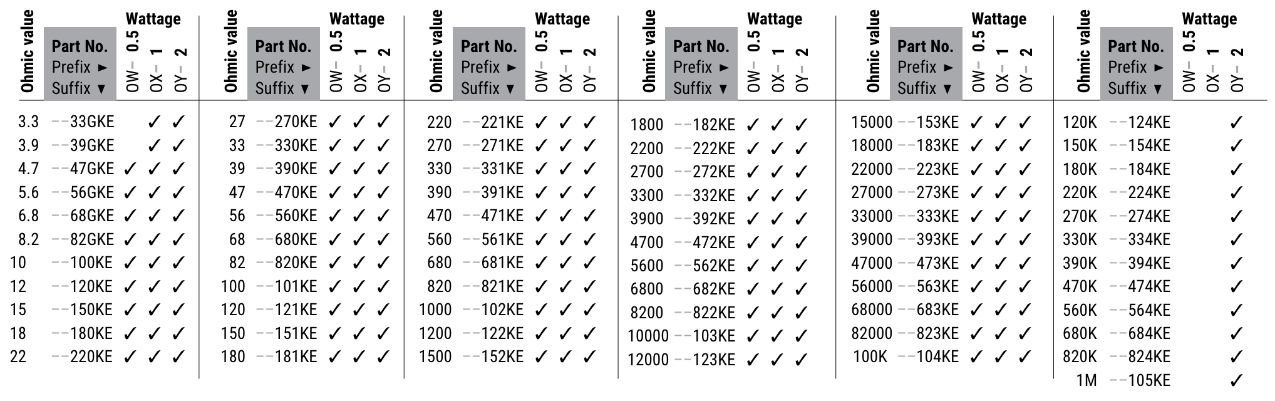

Ordering Information

Standard part numbers for OW/OX/OY Series

Ordering chart.
Ordering chart
