10 Series Datasheet

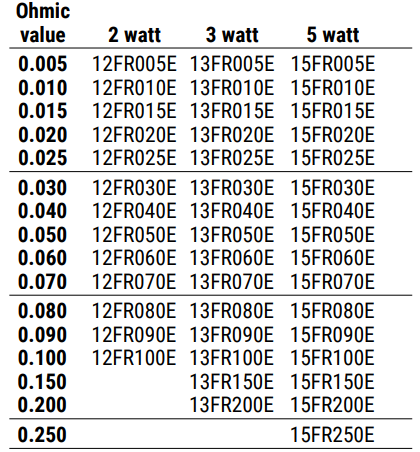

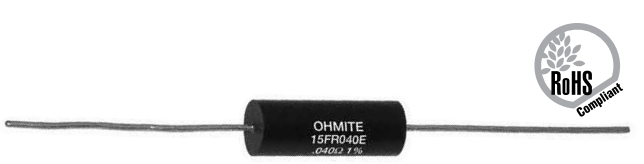

Features

• Ideal for current sensing applications
• 1% Tolerance standard, others available

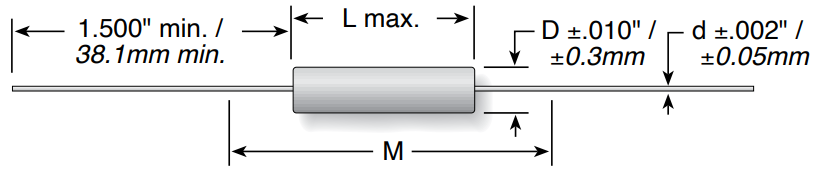

• Fixed resistance measuring point “M”
• Low inductance (non-inductive below 0.25Ω)
• RoHS compliant product available; add “E” suffix to part number to specify

Features

• Ideal for current sensing applications
• 1% Tolerance standard, others available
• Low Inductance (non-inductive below 0.25Ω)
• Tinned Copper Leads
• RoHS Compliant

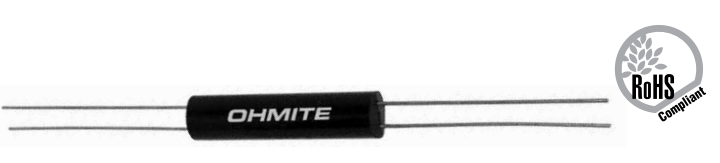

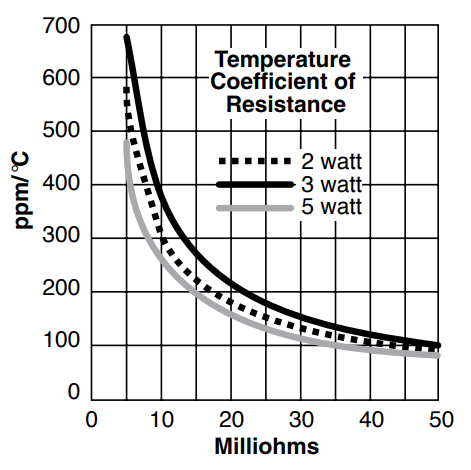

Ohmite’s Four-terminal Current-sense Resistors are specifically designed for low-resistance applications requiring the highest accuracy and temperature stability. This four-terminal version of Ohmite’s 10 Series resistor is specially designed for use in a Kelvin configuration, in which a current is applied through two opposite terminals and sensing voltage is measured across the other two terminals.The Kelvin configuration enables the resistance and temperature coefficient of the terminals to be effectively eliminated. The four terminal design also results in a lower temperature coefficient of resistance and lower self-heating drift which may be experienced on two-terminal resistors. The requirement to connect to the terminals at precise test points is eliminated, allowing for tighter tolerancing on the end application.
