Features
- Rugged lead free vitreous enamel coating
- All-welded construction
- Self supporting terminal mounting option
- Higher power ratings.
- Flame-resistant lead free vitreous enamel coating.
- RoHS compliant product available. Add “E” suffix to part number to specify.

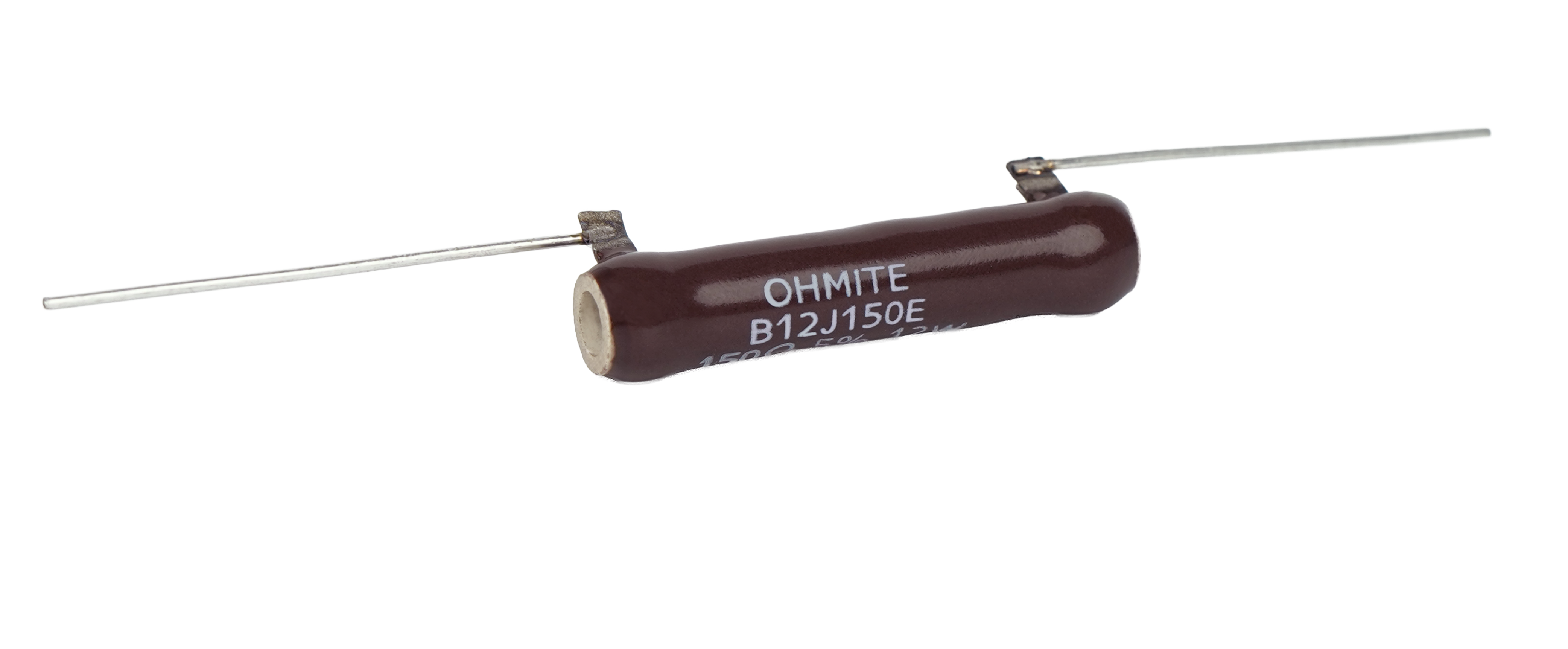

Ohmite’s Brown Devil® is a small, exceptionally durable power resistor. It features all-welded construction and rugged, flame resistant conformal lead free vitreous enamel coating to ensure successful performance under high temperatures. The wirewound 200 Series has a hollow-core construction, which accommodates rigid mounting with brackets or thru bolts. Mounting brackets not included with resistors.
Series Specifications
Non-Inductive versions available. Insert “N” before tolerance code.
Example: B5NJ10RE
Also available in low cost Centohm or Silicone coating. Consult Ohmite.
* Maximum Voltage is based on Ohm’s Law [V=√P*R] as limited by the resistance value of specified product
Characteristics
Dimensions
(in. / mm)

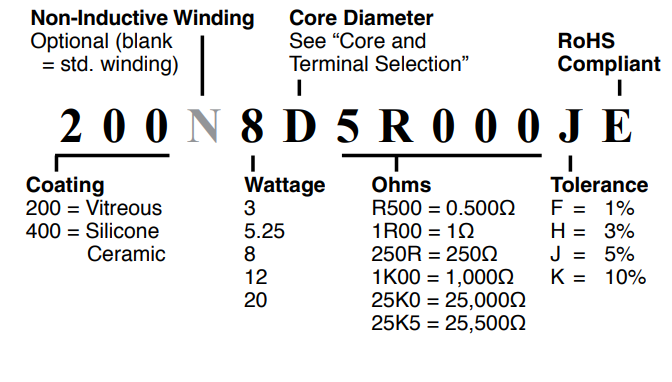

Ordering Information
Made-to-order Parts
