Features
- Also available in Centohm or Silicone coating. Consult Ohmite
- Ribbed construction aids in rapid cooling.
- Designed for equipment requiring low resistance loads at low ohmic values and high current capacity.
- Especially constructed for motor starting, dynamic braking, etc.
- RoHS compliant product available. Add “E” suffix to part number to specify.

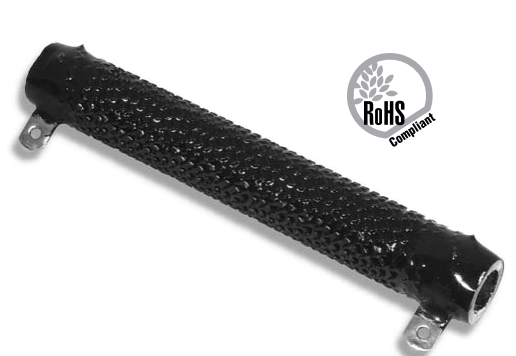

Corrib® resistors are ideal for applications involving high currents at very low resistance values—as low as 0.1Ω for the 300 Watt unit. These large, heavyduty resistors are designed to withstand frequent start-stop cycles characteristic of motor starting, dynamic braking and other similar applications. Special order units are available to accommodate up to 1500 watts. Corribs® are manufactured with corrugated resistive wire. To accelerate cooling, the wire is securely fused to the ceramic core by the protective vitreous enamel coating to improve durability. Corrib resistors are hollow-core units which can be securely fastened to chassis surfaces with thru bolts and brackets
Characteristics
Thru Bolts Mounting Brackets for 300 Watt Corrib
Includes two each bracket, bolt, washers (centering, mica, lock) and nut. Note: Single unit mounting contains one each bolt and nut; two each all washers
Lugs for 300 Watt Adjustable Corrib
Dimensions
Ordering Information
Standard

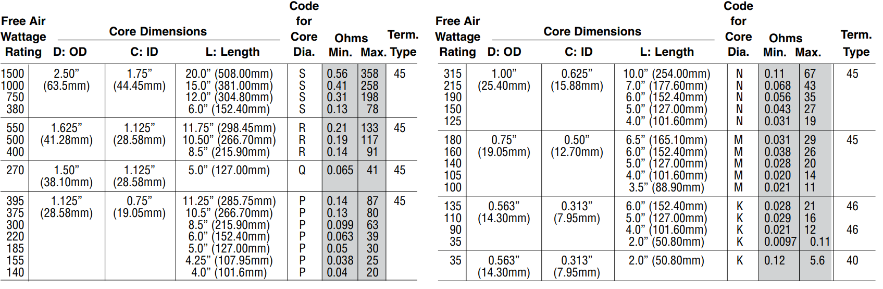

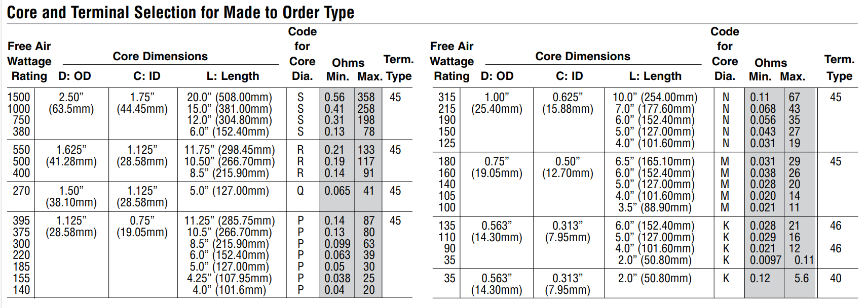

Made-to-order
Standard part numbers for 280 series
C300KR10E
C300KR12E
C300KR20E
C300KR25E
C300KR31E
C300KR40E
C300KR50E
C300KR63E
C300K1R0E
C300K1R2E
C300K1R6E
C300K2R0E
C300K2R5E
C300K3R1E
C300K4R0E
C300K5R0E
C300K6R3E
C300K8R0E
C300K10RE
C300K12RE
C300K16RE
C300K20RE
E300K10RE
E300K12RE
E300K16RE
E300K1R0E
E300K1R6E
E300K20RE
E300K2R0E
E300K2R5E
E300K3R1E
E300K4R0E
E300K5R0E
E300K6R3E
E300K8R0E
E300KR10E
E300KR12E
E300KR16E
E300KR20E
E300KR25E
E300KR31E
E300KR40E
E300KR50E
E300KR63E
E300KR80E
