The 89 Series is a high-performance axial type resistor. These molded-construction metal-housed resistors are available in higher power ratings than standard axial resistors and are better suited to withstanding vibration, shock and harsh environmental conditions. The 89 Series Metal-Mite® resistors are aluminum housed to maintain high stability during operation and to permit secure mounting to chassis surfaces. The metal housing also provides heat-sinking capabilities
Features
- High Stability: ±0.5% ∆R
- High power to size ratio
- Metal housing allows chassis mounting and provides heat sink capability

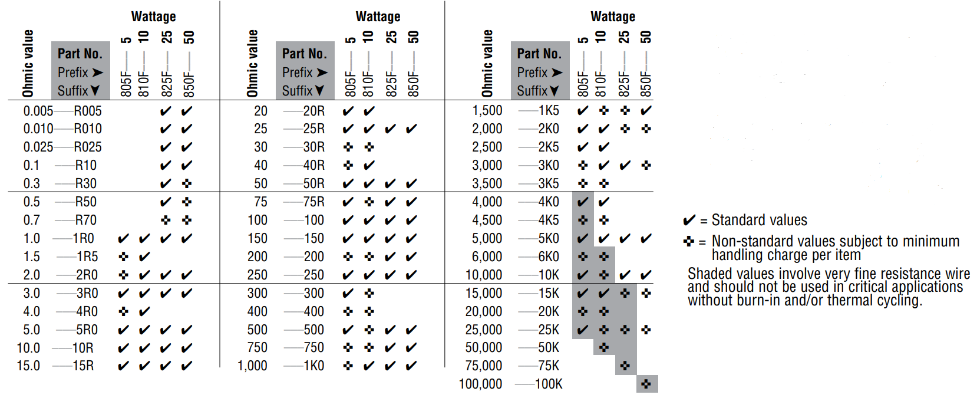

Series Specifications
Non-Inductive versions available. Insert “N” before tolerance code.
Example: 850NF560
Characteristics

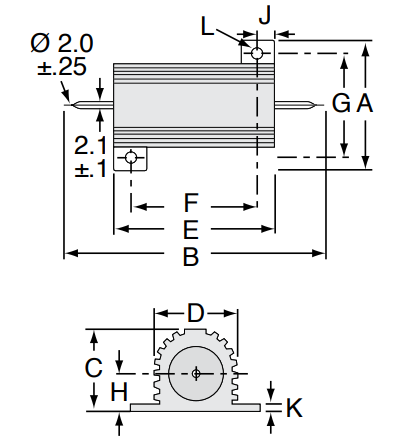

Dimensions
(in./mm)
Dimensions have change das of August 2015

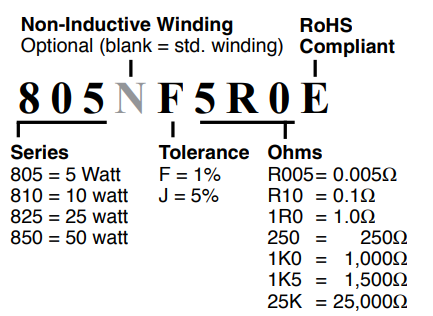

Ordering Information
