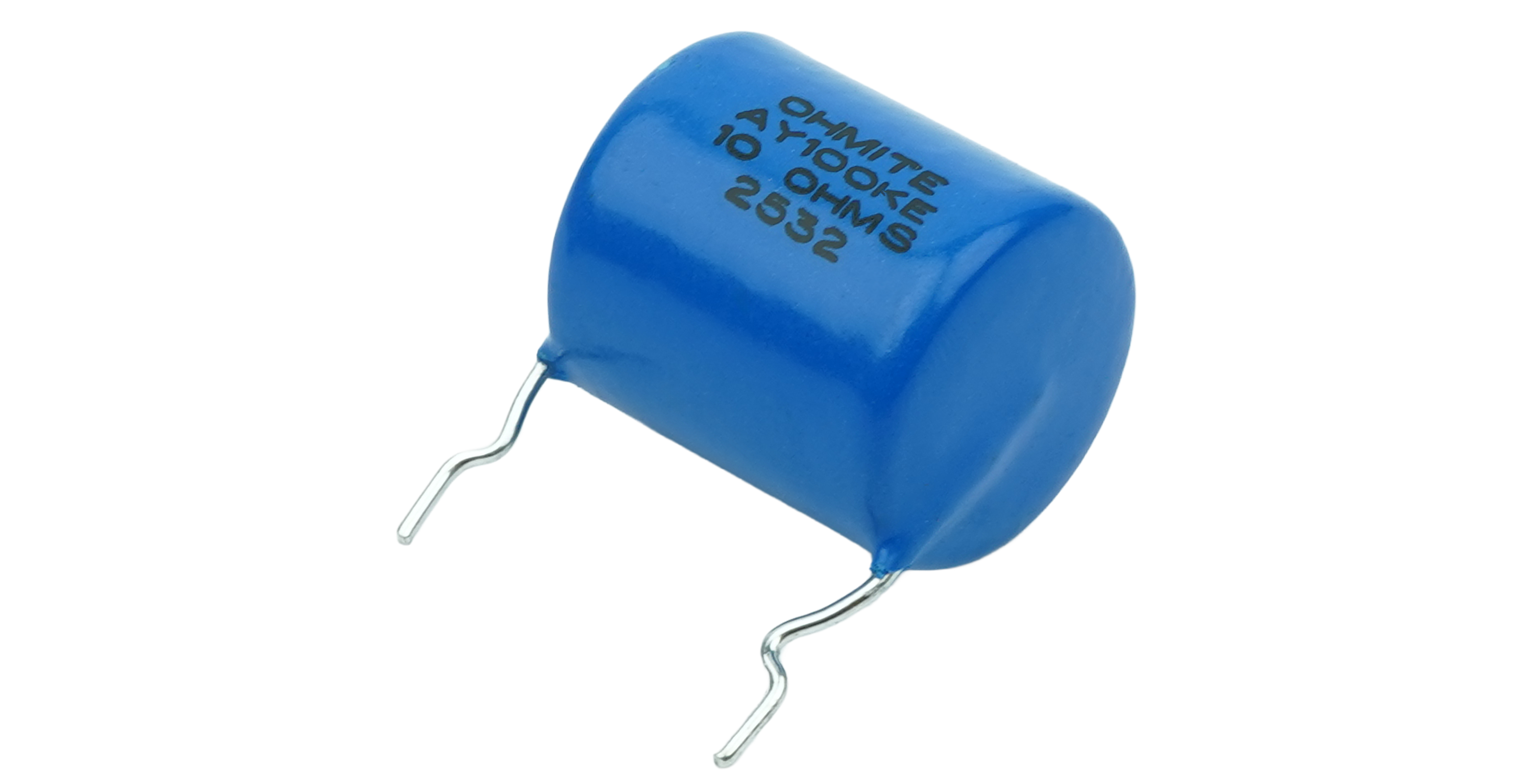

The “A” Series non-inductive, ceramic composite resistors are designed for a variety of applications where high energy handling capabilities are crucial. These resistors are ideal for any application which is subject to surges, high peak power, or impulse energy. Their unique design allows uniform distribution of energy throughout their structure which results in low thermal stress. The high-temperature, solvent-resistant epoxy coating carries a UL94V0 flammability rating which is suitable for almost any environment.
*AZ style is provided with dual terminal wires
Applications
- Motor Drives
- Power Supplies, UPS
- Power Conversion
- In-Rush Current Limiting
Features
- High Surge Energy
- Non-Inductive/li>
- Small Size
Series Specifications
E 12 Standard Values ±10%; 2Free Air 40°C Ambient; 3In Air; 4Single Impulse
Characteristics
Derating

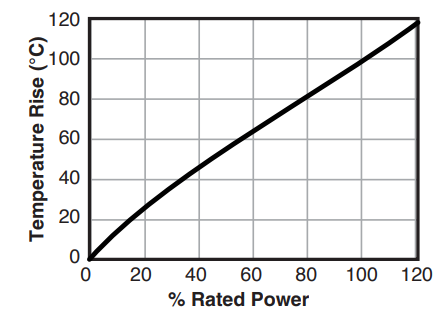

Surface Temperature Rise vs. Applied Power
Mounting clip
This saddle clip conforms to the configuration of Ohmite’s A Series resistor to provide secure mounting. Made of a durable thermoplastic polyester, the saddle clip is designed to secure the A Series in place while safely withstanding its operating temperatures. Use (2) saddle clips per resistor for extra stability.
Dim. (mm)

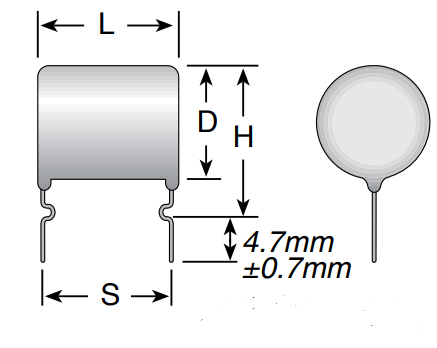

Dimensions
AV - AY
Offset crimp width is
2x terminal wire gauge
AZ
AZ series also available
with crimps upon request
Ordering Information
