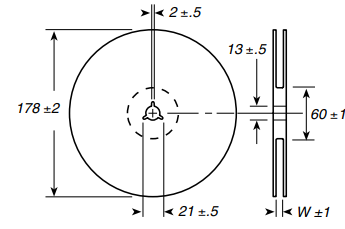

AS Series Datasheet

Power Rating at 70°C:

0.33W

Max Working Voltage:

150V

Max Overload Voltage:

300V

Dielectric Withstanding Voltage:

500V

Resistance Range:

1Ω~10MΩ

Power Rating at 70°C:

0.5W

Max Working Voltage:

200V

Max Overload Voltage:

400V

Dielectric Withstanding Voltage:

500V

Resistance Range:

1Ω~10MΩ

Power Rating at 70°C:

1.5W

Max Working Voltage:

500V

Max Overload Voltage:

500V

Dielectric Withstanding Voltage:

500V

Resistance Range:

1Ω~20MΩ

-55°C ~ +155°C

E-24 values

Thick film

Silver, copper, nickel, and tin, non-SAC alloy

Matte tin

±5% standard; ±10% and ±20% available

ΔR:

1Ω-10Ω: ≤ ±400PPM/°C (±200 PPM can be provid-ed on a case to case basis)11Ω-10MΩ: ≤ ±100PPM/°C

Test Methods (JIS C 5201-1 ):

Natural ΔR/°CR2-R1 x 106 (PPM/°C)R1(t2-t1)R1: at room temp. (T1)R2: at room temp. plus 100°C (T2)Test pattern: room temp. (T1), room temp. +100°C(T2)

ΔR:

±(1.0% + 0.1Ω) max.

Test Methods (JIS C 5201-1 ):

Permanent ΔR after the application of a potential of 2.5 times RCWV for 5 sec.

ΔR:

±(1.0% + 0.05Ω) max.

Test Methods (JIS C 5201-1 ):

Twist of Test Board: Y/X = 3/90 mm for 60 sec0

ΔR:

±(1.0% + 0.05Ω) max.

Test Methods (JIS C 5201-1 ):

260°C±3°C for 10 ±1 sec.

ΔR:

±(1.0% + 0.1Ω) max.

Test Methods (JIS C 5201-1 ):

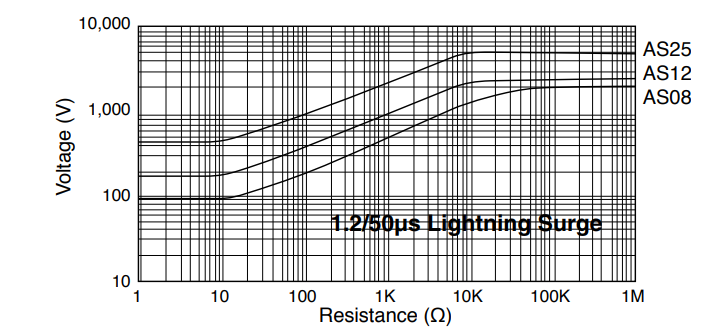

See graph on next page.

ΔR:

±(3.0% + 0.1Ω) max.

Test Methods (JIS C 5201-1 ):

Temporary ΔR after 240 hr. at 40 ±2°C and 90-95% relative humidity

ΔR:

±(3.0% + 0.1Ω) max.

Test Methods (JIS C 5201-1 ):

ΔR after 1,000 hr. (1.5 hr. "on", 0.5 hr. "off" ) at RCWV at 40 ±2°C and 90-95% relative humidity

ΔR:

±(3.0% + 0.1Ω) max.

Test Methods (JIS C 5201-1 ):

ΔR change after 1,000 hr. operat-ing at RCWV, with duty cycle of (1.5 hours"on", 0.5 hour"off") at 70°C ±2°C ambient

ΔR:

Min. 95% coverage

Test Methods (JIS C 5201-1 ):

Wave Solder: 245°C ±3°C for 2-3 sec.

ΔR:

±(1.0% + 0.05Ω) max.

Test Methods (JIS C 5201-1 ):

ΔR after 5 cycles:-55°C ±3°C 30 min.Room temp. 10-15 min.+155°C ±2°C 30 min.4 Room temp. 10-15 min.

ΔR:

No evidence of flashover, mechanical damage, arcing or insulation breakdown

Test Methods (JIS C 5201-1 ):

Clamped in the trough of a 90°C metal-lic v-block at specified AC potential 60-70 sec.0
