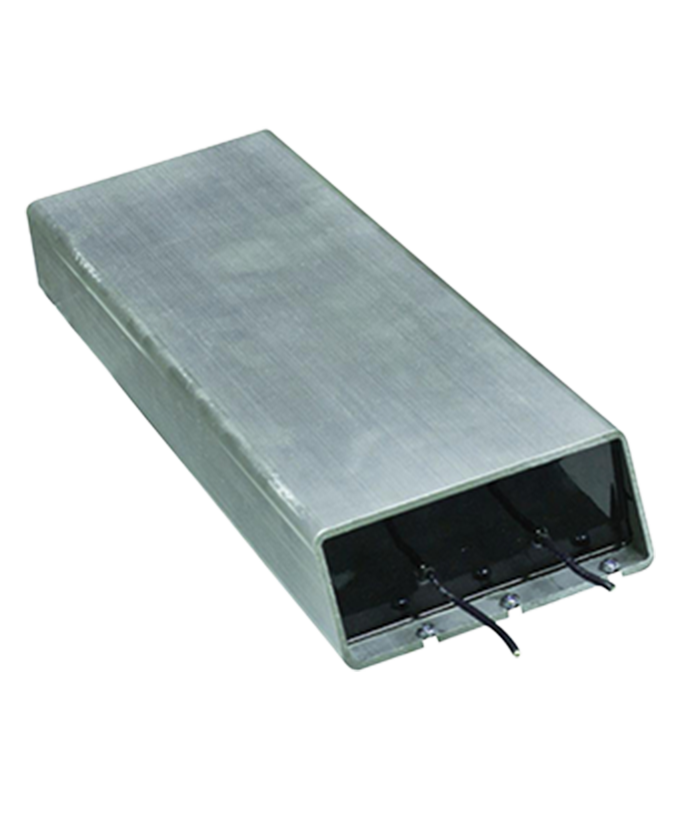

Our Aluminum housed brake resistors are designed for high power and provide great stability. These resistors are constructed using wirewound on ceramic cores and isolated using a mica sheet for high dielectric properties. The aluminum house is filled with a high thermal conductivity material to ensure quick heat dissipation during continues applications. With the ability to have a thermal cut off switch embedded inside the aluminum housing, makes the BA series ideal for any safety application.
Applications
- Dynamic Braking
- Motor Starting
- Power Control
Features
- Three extrusion forms available
- Heatsinkable
- Rugged design/li>
- Up to 1000 watts
- Thermal cut-off available
- Scalable, custom lengths available/li>
- Custom leads available
Series Specifications
*Free air rating
Characteristics
Dimensions
BA1 and BB1
BB1 style
BA1 style
BA2 and BB2
BA2 style
BB2 style
BA3 and BB3
BA3 style
BB3 style
* Custom Lengths for Different Wattages

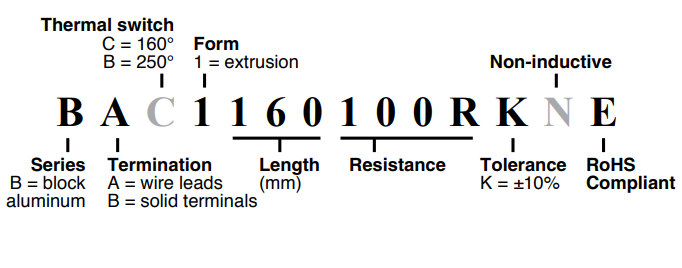

Ordering Information
Standard part numbers
BAB1160R500KE
BAB11601R00KE
BAB11602R00KE
BAB116010R0KE
BAB116025R0KE
BAB232010R0KE
BAB232025R0KE
BAB232050R0KE
BAB32666R00KE
BAB326610R0KE
BAB326615R0KE
BAB326622R0KE
BAB326650R0KE
