The CS5 is a high power precision current sensing resistor designed with four terminals. This resistor series is distinguished by excellent long term stability & TCR. The Kelvin connections allow high precision measurements even with low resistance values. The CS5 series has a non-inductive copper manganin element inserted into a cement sealed ceramic case.
Applications
- Power modules
- Frequency converters
- Switch mode power supplies
Features
- Values beginning at one miliohm
- Non Inductive Design
- Four terminal Kelvin connection
Series Specifications
* Max.current 60A at 1mΩ
Characteristics
Surface Temperature Increase Versus Power Load

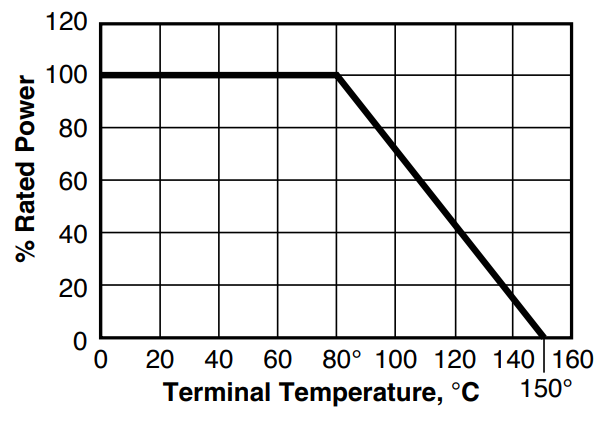

Derating
Dimensions
(mm/in.)
Ordering Information
Standard Part Numbers
1%
CS5FR001E
CS5FR002E
CS5FR003E
CS5FR004E
0.5%
CS5DR001E
CS5DR002E
CS5DR003E
CS5DR004E
