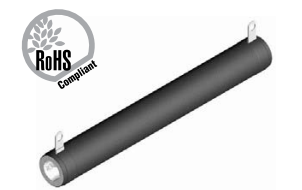

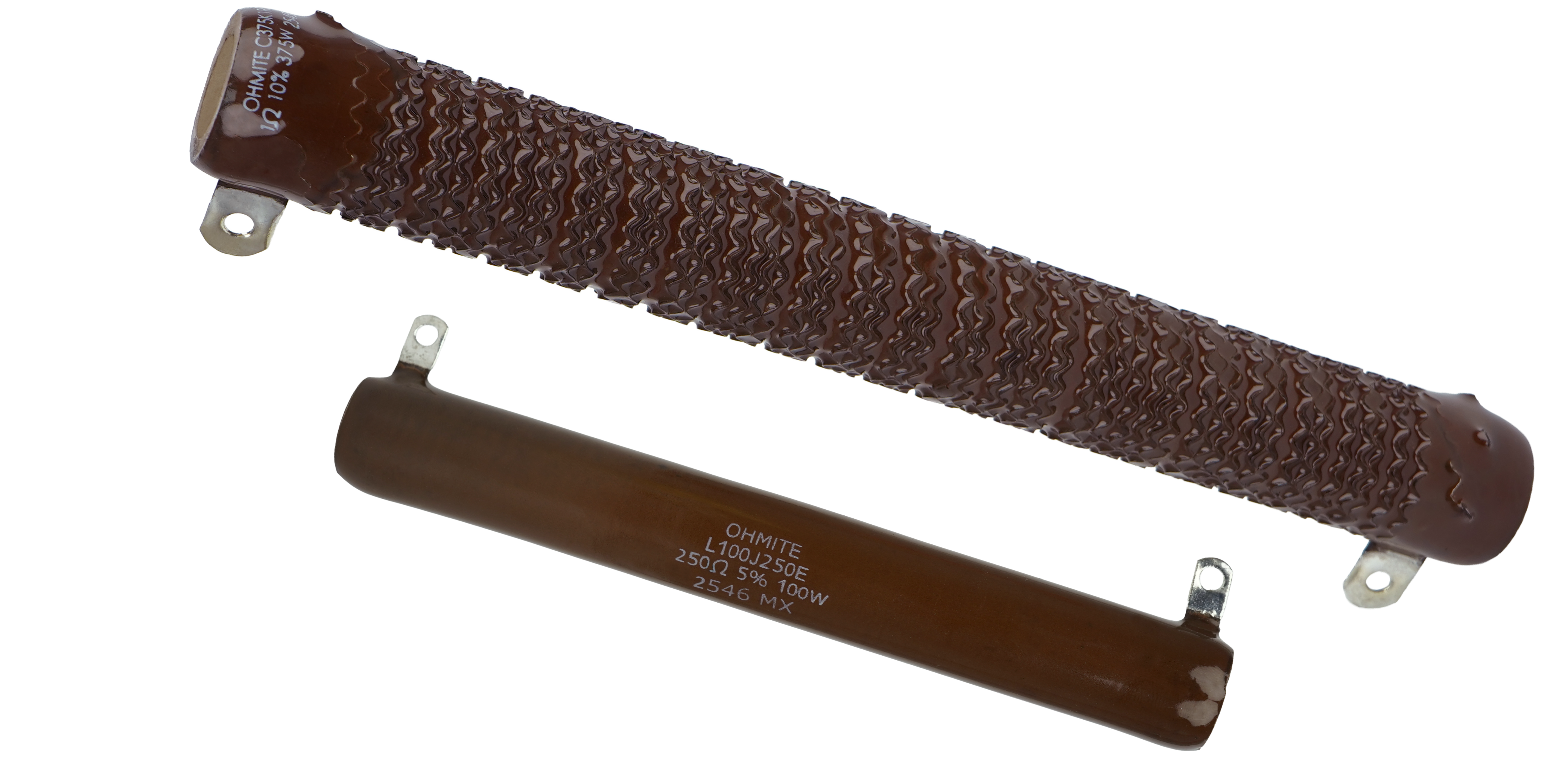

Euro-Power Wirewound Series Datasheet

Vitreous Enamel Power

Features

Terminals suitable for soldering or bolt connection
High wattage applications
Rugged lead free virtreous enamel coating
Flame resistant coating
All-welded construction
"Live" mounting option

Select Euro series fixed resistors for applications requiring wattage ratings from 72 to 1000 watts.Suitable for rugged applications, Euro-Power resistors are spot welded producing stronger mechanical and electrical connections. The vitreous enamel coating was specifically developed and provides protection against moisture and mechanical damage.Euro-Power resistors are equipped with lug terminals suitable for soldering or sturdy bolt connection.Mounting brackets not included with resistors.

Series Specifications

Wattage:

72

Ohms:

0.4Ω-250K0

Voltage:

1400

Construction:

Round wire

Wattage:

160

Ohms:

0.5Ω-100K

Voltage:

2100

Construction:

Round wire

Wattage:

280

Ohms:

0.2Ω-125K

Voltage:

3300

Construction:

Round wire

Wattage:

700

Ohms:

0.2Ω-200K

Voltage:

5000

Construction:

Round wire

Wattage:

200

Ohms:

0.10-18Ω

Voltage:

-

Construction:

Ribbon wire

Wattage:

350

Ohms:

0.22-33Ω

Voltage:

-

Construction:

Ribbon wire

Wattage:

1000

Ohms:

0.33-56Ω

Voltage:

-

Construction:

Ribbon wire

Non-Inductive versions avail- able; Other sizes available; Also available in low cost Centohm or Silicone coating; Consult Ohmite.

Characteristics

Lead free vitreous enamel. Very large models (700 watts and up) are supplied in Silicone Ceramic. Also available in low-cost Centohm coating; Consult factory.

Tubular ceramic.

solder coated radial lug with RoHS composition solder

Linearly from 100% @ +25°C to 0% @ +350°C.

±5% 1Ω and over (J); ±10% under 1Ω (K)

Based on 25°C free air rating.

10 times rated wattage for 5 seconds.

1 to 20Ω: ±400 ppm/°C; Above 20Ω: ±260 ppm/°C; Ribbon wire: 400ppm/°C

1000 VAC: 72 to 160 watt rating. 3000 VAC: 280 to 700 watt rating (Measured from terminal to mount-ing bracket)

use the formula √P/R

Solder Tab Dimensions

(mm)

L:

119

D:

20.3

C:

9.2

H ref.:

14.3

J max.:

39.4

Core Code:

EM

L:

170

D:

25.5

C:

12.4

H ref.:

15.9

J max.:

45.9

Core Code:

EN

L:

252

D:

30.6

C:

17.5

H ref.:

19.1

J max.:

54.1

Core Code:

EP

L:

375

D:

51.0

C:

27.9

H ref.:

19.1

J max.:

74.1

Core Code:

ER

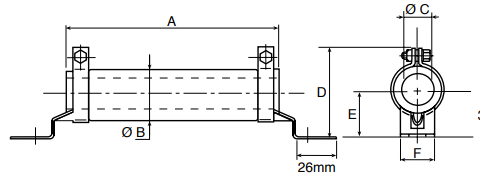

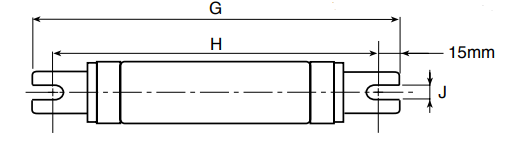

Lug Dimensions

(dimensions in millimeters)

160 and 280 Watt

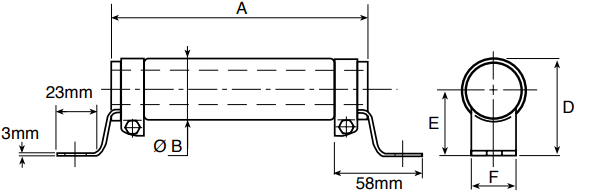

700 Watt

A ±2:

168

Ø B max.:

28

Ø C min.:

12

D:

53.8 ±1

E:

27 ±1

F ±0.5:

24

G -4/+0:

229

H -4/+0:

199

J ±0.5:

6.5

Core code:

EN

A ±2:

250

Ø B max.:

33

Ø C min.:

17

D:

63 ±1

E:

30 ±1

F ±0.5:

25

G -4/+0:

317

H -4/+0:

287

J ±0.5:

9

Core code:

EP

A ±2:

373

Ø B max.:

53

Ø C min.:

27.1

D:

80 max.

E:

51 ±1.5

F ±0.5:

30

G -4/+0:

432

H -4/+0:

405

J ±0.5:

9

Core code:

ER

Ordering Information

Standard Part numbers for Fixed Roundwire Euro series

EVFT119EM10RJE
EVFT119EM100JE
EVFT119EM1K0JE
EVFT119EM10KJE
EVFT119EM4R7JE
EVFT119EM47RJE
EVFT119EM470JE
EVFT119EM4K7JE

EVFT170EN10RJE
EVFT170EN100JE
EVFT170EN1K0JE
EVFT170EN10KJE
EVFT170EN4R7JE
EVFT170EN47RJE
EVFT170EN470JE
EVFT170EN4K7JE

EVFT252EP10RJE
EVFT252EP100JE
EVFT252EP1K0JE
EVFT252EP10KJE
EVFT252EP4R7JE
EVFT252EP47RJE
EVFT252EP470JE
EVFT252EP4K7JE

ESFT375ER10RJE
ESFT375ER100JE
ESFT375ER1K0JE
ESFT375ER10KJE
ESFT375ER4R7JE
ESFT375ER47RJE
ESFT375ER470JE
ESFT375ER4K7JE

Standard Part numbers for Fixed Ribbon wire Euro series

EVRT252EPR22KE
EVRT252EPR22KE
EVRT252EP1R0JE
EVRT252EP2R2JE
EVRT252EP10RJE
EVRT252EP22RJE
EVRT252EP4R7JE

EVRT170EN2R2JE
EVRT170ENR10KE
EVRT170EN4R7JE
EVRT170EN1R0JE
EVRT170EN10RJE
EVRT170ENR47KE
EVRT170ENR22KE

ESRT375ER2R2JE
ESRT375ER4R7JE
ESRT375ER1R0JE
ESRT375ER10RJE
ESRT375ER22RJE
ESRT375ERR47KE
ESRT375ER47RJE
