LVM Series Datasheet

Power Rating:

0.125W

Resistance Range*:

10m-19m, 20m- 100m

TCR ppm/°C:

100 ,50, 100

Tolerance:

±1% ±2% ±5%

Power Rating:

0.5W

Resistance Range*:

10m-19m, 20m- 100m

TCR ppm/°C:

100, 50, 100

Tolerance:

±1% ±2% ±5%

Power Rating:

1.0W

Resistance Range*:

7m-100m, 15m- 100m

TCR ppm/°C:

75, 50

Tolerance:

±0.5% ±1% ±5%

√(P*R) or Max. Operating voltage whichever is lower

100% @ 70°C, Derates Linearly to Zero @ 155°C (170°C for LVM25)

-55°C ~ +155°C(LVM25, -55°C ~ +170°C)

25° ±3°C C; Humidity < 80%RH

Requirement:

As Spec.

Test Method:

JIS-C-5201-1 4.8, IEC-60115-1 4.8, -55°C~+125°C, 25°C is the reference temperature

Requirement:

±(0.5%+0.05Ω)

Test Method:

JIS-C-5201-1 4.13, IEC-60115-1 4.13, 5 X Rated Power for 5 seconds

Requirement:

≥10G(100M for LVM25)

Test Method:

IS-C-5201-1 4.6, IEC-60115-1 4.6, Max. Overload voltage for 1 minute

Requirement:

±(1.0%+0.05Ω)

Test Method:

JIS-C-5201-1 4.25, IEC-60115-1 4.25.1, 70±2°C, RCWV for 1000 hrs with 1.5 hrs “ON” and 0.5 hrs “OFF”

Requirement:

±(1.0%+0.05Ω)(LVM06 & 12 only)

Test Method:

JIS-C-5201-1 4.24, 40±2°C, 90~95% R.H., RCWV for 1000 hrs with 1.5 hrs “ON” and 0.5 hrs “OFF”

Requirement:

±(0.5%+0.05Ω)(1% for LVM25)

Test Method:

JIS-C-5201-1 4.23, IEC-60115-1 2.23.2, at +155°C for 1000 hrs

Requirement:

±(1.0%+0.05Ω)

Test Method:

JIS-C-5201-1 4.33, IEC-60115-1 4.33, Bending once for 5 seconds with 3mm, 2010, 2512 sizes: 2mm

Requirement:

95% min. coverage

Test Method:

JIS-C-5201-1 4.17, IEC-60115-1 4.17, 245±5°C for 3 seconds

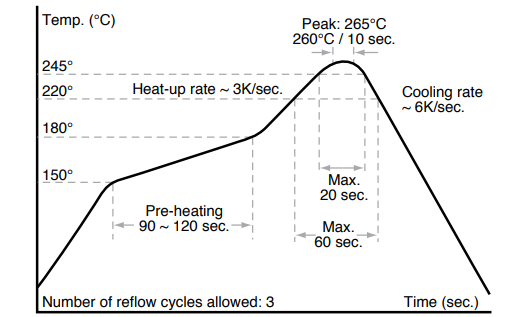

Requirement:

±(0.5%+0.05Ω)(LVM06 & 12 only)

Test Method:

JIS-C-5201-1 4.18, IEC-60115-1 4.18, 260±5°C for 10 seconds

Requirement:

No breakdown or flashover(LVM06 & 12 only)

Test Method:

JIS-C-5201-1 4.7, IEC-60115-1 4.7, 1.42 times Max. Operating Voltage for 1 minute

Requirement:

minuteLeachingIndividual leach-ing area ≤5%, Total leaching area ≤10% (LVM06 & 12 only)

Test Method:

JIS-C-5201-1 4.18, IEC-60068-2-58 8.2.1, 260±5°C for 30 seconds

Requirement:

±(0.5%+0.05Ω)1% for LVM25

Test Method:

JIS-C-5201-1 4.18, IEC-60115-1 4.18, -55°C to +155°C, 5 cycles
