Mox 600 Series Datasheet

Thick Film Axial High Voltage

Res Mox600 product image

Applications

  • HV power supplies
  • High voltage switching
  • Industrial control

Features

  • Wide resistance range up to 1000M
  • Max pulse voltage of 30KV
  • Silicone coating

Series Specifications

Rated Power:

1W

TCR:

±300ppm/°C, ±100ppm/°C,±50ppm/°C, ±30ppm/°C

Tolerance:

0.50%, 1%, 2%, 5%, 1%, 2%, 5%, 0.5%, 1%, 2%, 5%, 1%

Resistance Range:

150K to 10M, 150K to 100M, 150K to 1,000M, 600K to 10M, 10M to 20M, 21M to 100M

Max. Operating Voltage:

2,000

Max. Overload Voltage:

3,000

Max. Pulse Voltage:

5,000

Rated Power:

2W

TCR:

±100ppm/°C, ±300ppm/°C

Tolerance:

1%, 2%, 5%

Resistance Range:

1M to 100M, 101M to 1,000M

Max. Operating Voltage:

3,000

Max. Overload Voltage:

5,000

Max. Pulse Voltage:

10,000

Rated Power:

3W

TCR:

±100ppm/°C, ±300ppm/°C

Tolerance:

1%, 2%, 5%

Resistance Range:

1M to 100M, 101M to 1,000M

Max. Operating Voltage:

5,000

Max. Overload Voltage:

7,000

Max. Pulse Voltage:

15,000

Rated Power:

5W

TCR:

±100ppm/°C, ±300ppm/°C

Tolerance:

1%, 2%, 5%

Resistance Range:

1M to 100M, 101M to 1,000M

Max. Operating Voltage:

10,000

Max. Overload Voltage:

15,000

Max. Pulse Voltage:

30,000

Characteristics

3,000V (1W); 5,000V (2W)

5,000V (1W); 10,000V (3W)

-40°C to +125°C

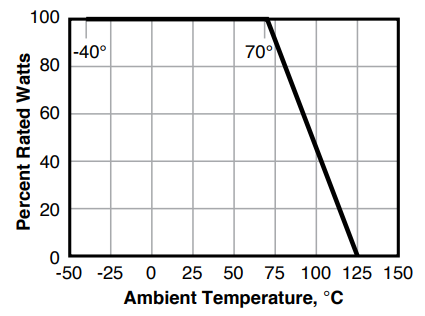

Derating

Res Mox600 Graph

Performance

Test Method:

After applying the lower of 2.5 times of rated voltage or maximum overload voltage (table 6) for 5 seconds, leave it at room temperature for 30 minutes and measure. The amount of change of resistance value (ΔR) is calculated from measured values before and after testing.

Specification:

≤±0.5%+0.05Ω

Test Method:

Dip up to 4±0.8mm from the body in solder of 350±10°C for 3.5±0.5 seconds. After leaving it at room temperature for more than 3 hours, resistance value is measured. The amount of change of resistance value (ΔR) is calculated from measured values before and after testing

Specification:

≤±0.2%+0.05Ω

Test Method:

egard the following 4 steps as 1 cycle, and run 5 cycles. The amount of change of resistance value (ΔR) is calculated from measured values before and after testing. 1.-40±3°C30 +3/0 min, 2.Room temp.10 +3/0 min, 3.125±3°C30 +3/0 min, 4.Room temp.10 +3/0 min.

Specification:

≤±2.0%+0.05Ω

Test Method:

To be measured at the voltage stipulated in the table 6 by V block method.

Specification:

min. 1000MΩ

Test Method:

In the atmosphere of temperature 40±2°C and relative humidity 90 ~95%, apply DC volt-age at the lower value of rated voltage or maximum working voltage for 1.5 hours and repeat cycle of less than half an hour for 1,000 hours. Next, resistance value is measured after leaving the object at room temperature for about an hour. The amount of change of resistance value (ΔR) is calculated from measured values before and after testing.

Specification:

≤±1.5%+0.05Ω

Test Method:

In the atmosphere of temperature 70±2°C, apply DC voltage at the lower value of rated voltage or maximum working voltage for 1.5 hours and repeat cycle of less than half an hour for 1,000 hours. Next, resistance value is measured after leaving the object at room temperature for about an hour. The amount of change of resistance value (ΔR) is calculated from measured values before and after testing.

Specification:

≤±1.5%+0.05Ω

Dimensions

(mm)

L: 15.0 ±0.5

D: 5.3 ±0.5

C: 38 ±3

d: 0.8 ±0.05

L: 18.0 ±0.5

D: 8.4 ±0.6

C: 38 ±3

d: 0.8 ±0.05

L: 52.0 ±1.5

D: 8.0 ±1.0

C: 38 ±3

d: 0.8 ±0.05

L: 69.0 ±1.5

D: 10.0 ±1.0

C: 38 ±3

d: 0.8 ±0.05

Res Mox600 Dimensions

Ordering Information

Res Mox600 Order Info



Standard Part Numbers

Resistance: 25MΩ

Tolerance: 1%

Watts: 1

Resistance: 50MΩ

Tolerance: 1%

Watts: 1

Resistance: 75MΩ

Tolerance: 1%

Watts: 1

Resistance: 100MΩ

Tolerance: 1%

Watts: 1

Resistance: 250MΩ

Tolerance: 2%

Watts: 1

Resistance: 500MΩ

Tolerance: 2%

Watts: 1

Resistance: 750MΩ

Tolerance: 2%

Watts: 1

Resistance: 1,000MΩ

Tolerance: 2%

Watts: 1

Resistance: 25MΩ

Tolerance: 1%

Watts: 2

Resistance: 50MΩ

Tolerance: 1%

Watts: 2

Resistance: 75MΩ

Tolerance: 1%

Watts: 2

Resistance: 100MΩ

Tolerance: 1%

Watts: 2

Resistance: 250MΩ

Tolerance: 1%

Watts: 2

Resistance: 500MΩ

Tolerance: 1%

Watts: 2

Resistance: 750MΩ

Tolerance: 1%

Watts: 2

Resistance: 1,000MΩ

Tolerance: 1%

Watts: 2
