OC Series Datasheet

Ceramic Composition 10% Tolerance

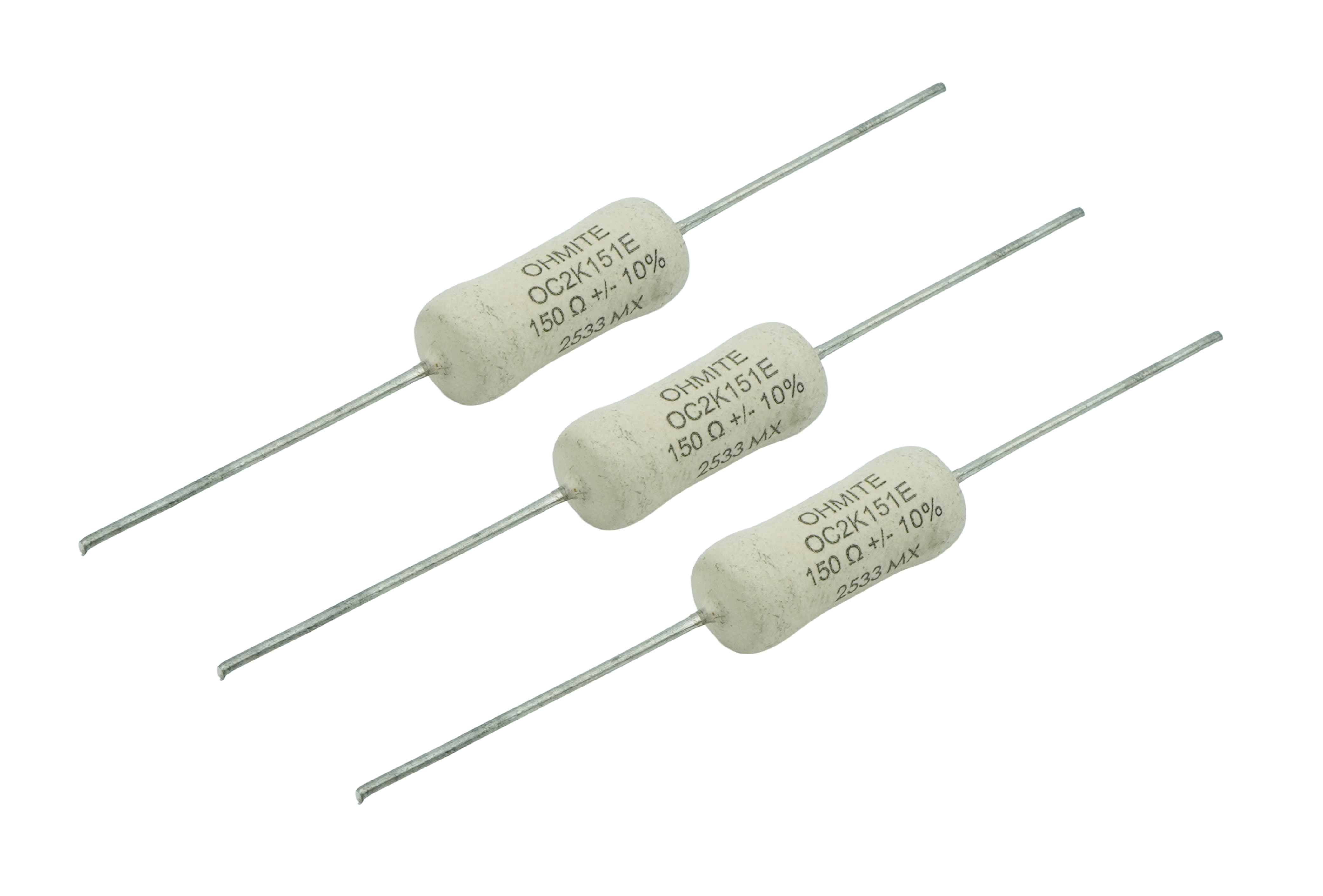

Res Oc Product Image



The OC Series of fixed ceramic resistors are ideal for circuitry associated with surges, high peak power or high energy. They offer enhanced performance in high voltage power supplies,R-C snubber circuits, and inrush limiters. The OC resistors can often replace carbon composition resistors which can be difficult to source.



Features

  • Replaces 1 and 2 watt carbon composition resistors
  • Excellent alternative to the Ohmite OX/OY series
  • Meets high energy density demands
  • High peak power
  • 10% Tolerance
  • Non-Inductive

Series Specifications

Resistance range:

6.0 - 3,200

Avg Power (w) @ 70°C:

1.2

Peak Energy (J):

140

Rated Peak Volt (v):

950

Weight (g):

1.0

Resistance range:

8.0 - 3,200

Avg Power (w) @ 70°C:

1.7

Peak Energy (J):

200

Rated Peak Volt (v):

1,100

Weight (g):

1.2

Resistance range:

12 - 5,000

Avg Power (w) @ 70°C:

2.5

Peak Energy (J):

275

Rated Peak Volt (v):

2,5000

Weight (g):

1.9

Characteristics

Pb-free solder-coated axial

Silicone ceramic

Linear from 100% @ +70°C to 0% @ +230°C

-55 °C to +230°C

±10% standard

Based on 70°C free air rating

0 to - 800 ppm/°C

Condition:

1000 hours at rated power

Maximum ∆R:

±5%

Condition:

2x rated V, 5 sec ON @ 70°C

Maximum ∆R:

±(2% +0.05Ω)

Condition:

MIL-STD-202, Method 107

Maximum ∆R:

±3%

Condition:

MIL-STD-202 Method 103

Maximum ∆R:

±5%



Pulse Limiting Power

One pulse

Res Oc Rev Graph 1



See figures

Max Working Voltage:

370V

Dielectric Strength:

300V

Max Overload Voltage:

740V

Max Pulse Voltage:

14KV

Max Working Voltage:

450V

Dielectric Strength:

700V

Max Overload Voltage:

900V

Max Pulse Voltage:

20KV

Max Working Voltage:

600V

Dielectric Strength:

700V

Max Overload Voltage:

1200V

Max Pulse Voltage:

20KV

Dimensions

in./mm

Diameter D ±0.039:

0.31 / 7.9

Length L ±0.039:

0.65 / 16.5

Length C REF:

0.75 / 19.0

Qty. per reel:

250

Diameter D ±0.039:

0.31 / 7.9

Length L ±0.039:

0.75 / 19.1

Length C REF:

0.89 / 22.6

Qty. per reel:

250

Diameter D ±0.039:

0.31 / 7.9

Length L ±0.039:

1.13 / 28.6

Length C REF:

1.26 / 32.1

Qty. per reel:

250

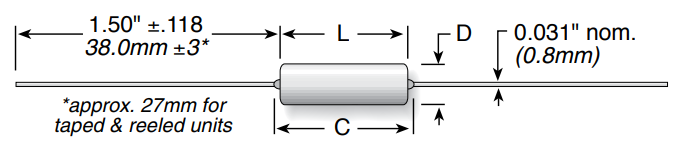

Res Oc Rev Dimensions



Tape And Reel

Res Oc Tape 1
Res Oc Tape 2
