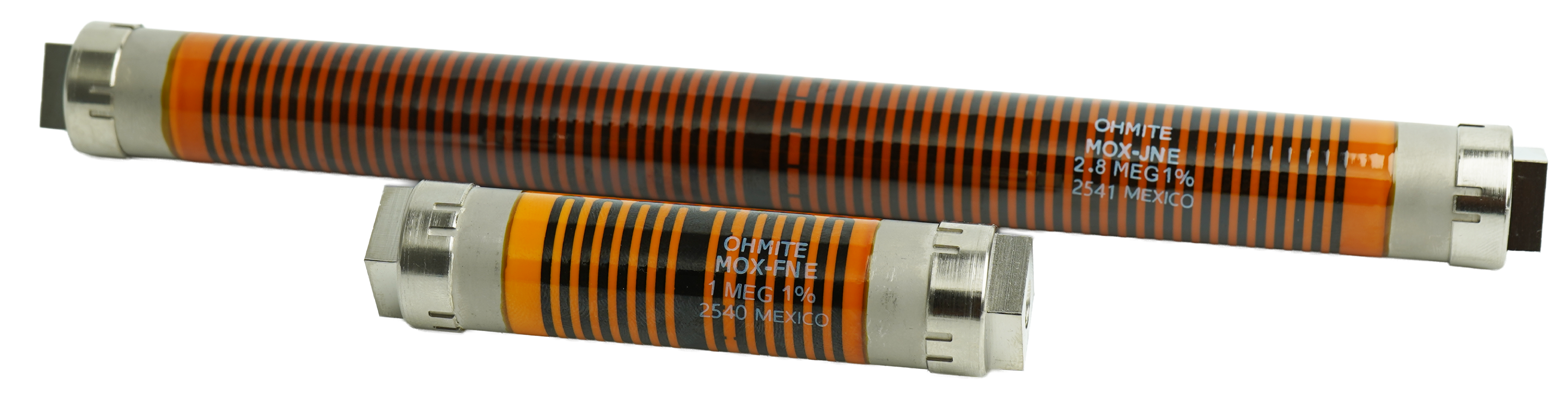

The heavy duty construction of the Power-Mox series make them durable in most high voltage industrial applications. This product is well known for its high voltage ratings, low voltage coefficients, very high ohmic values, and resistor divider options. Terminations can be selected to adapt to most mounting schemes.
Applications
- Power Transmitters
- Pollution Control Systems
- Industrial Control Systems
- Current pulse limiters
- Vacuum and space application
Features
- Wide resistance ranges
- Outstanding voltage coefficient
- 0.4” diameter ferrule, 0.25”-20 threaded end cap, or radial bands available
- Metal oxide resistive elements
Series Specifications
*Some tolerances are not available over the entire resistance range
Characteristics

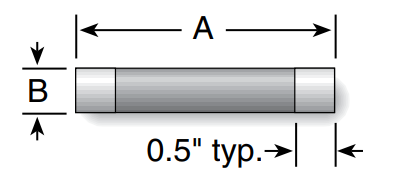

Dimensions
(in./mm)
Ordering Information
Power-Mox Dividers
Precision Power Thick Film High Voltage/High Resistance Tubular Dividers
Series Specifications
(dimensions as for Power-Mox)

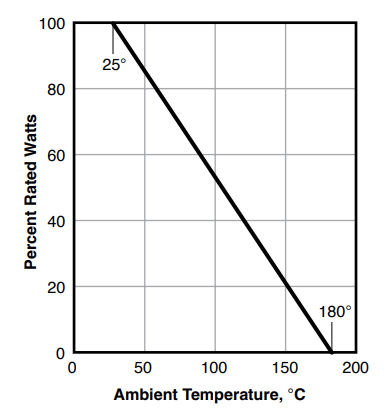

Derating

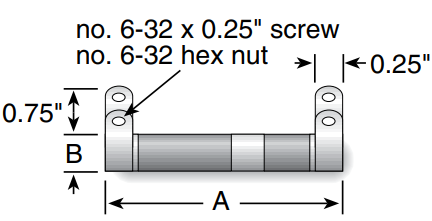

Power-Mox Alternate Terminals
“01” Lead
“Power-Mox RD” Series
with silver terminations
“02” Lead
“Power-Mox” Series with
radial band option
“03” Lead
“Power-Mox” Series
with Ferrule end caps
“04” Lead
“Power-Mox” Series with
1/4 - 20 threaded end caps
To specify Power-Mox Dividers, please see our website at:
www.ohmite.com/dividers
Ordering Information
A complete description of the Power-MOX Divider is required.
EXAMPLE:
RT = 500MΩ 5%
R1 = 499.5MΩ 5%
R2 = 500KΩ 1%
Ratio = RT / R2 = 1,000: 1, 1%
To specify Power-Mox Dividers, please see our website at www.ohmite.com/dividers. Contact Ohmite for custom configurations.
