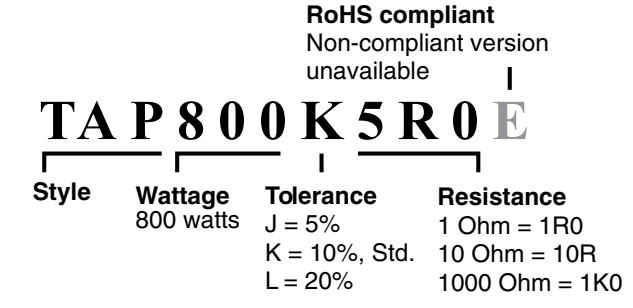

TAP800 Series Datasheet

1Ω to 10KΩ

±5% to ±10%

±150ppm/°C (others upon request)

5,000V DC, higher voltage on request, not exceeding max. power

1,200W at 70°C for 10sec., ∆R=0.4% max.

800W at 85°C Bottom case temperature.

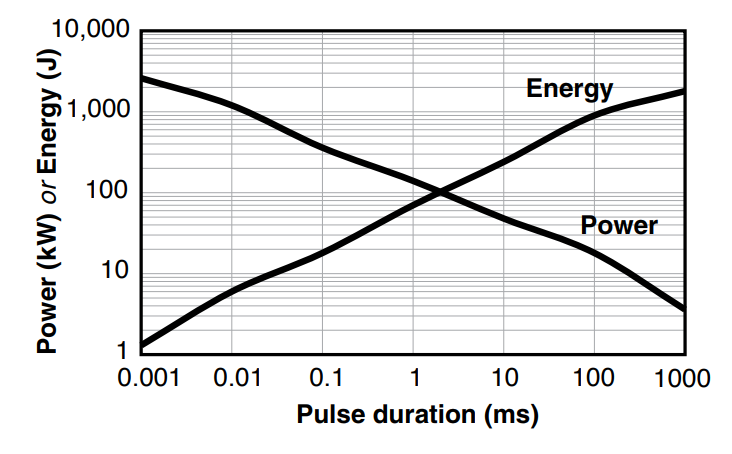

up to 1500 amp. depending on pulse length and frequency Please ask for details

7K Vrms, 50Hz, up to 12K Vrms on special request

up to 12kV Normwave (1.5/50 μsec)

4KVrms, < 10pC, up to 7kV on special request

10GΩ min. at 500V

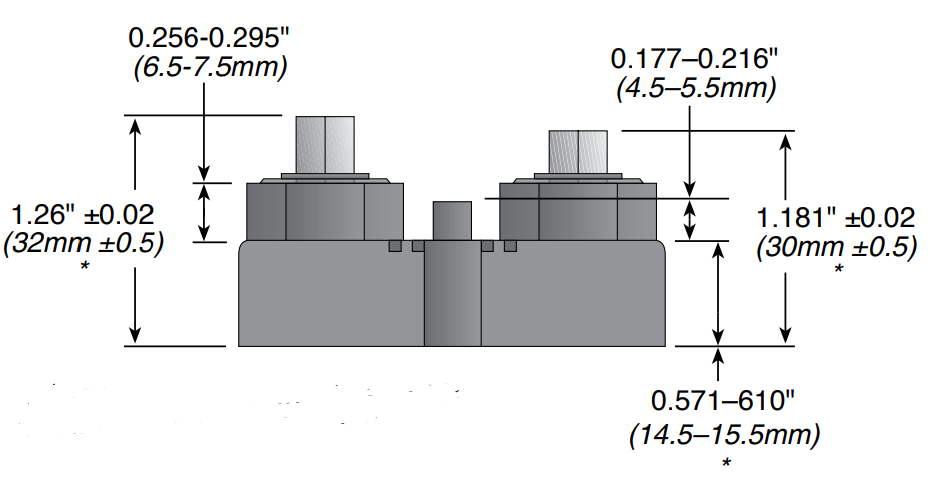

42mm min.

14mm min.

80nH

110pF

40pF

-55°C to +150°C

2 Nm

1.8 Nm M4 screws (not included)

9.09W/°K (0.11°K/W)

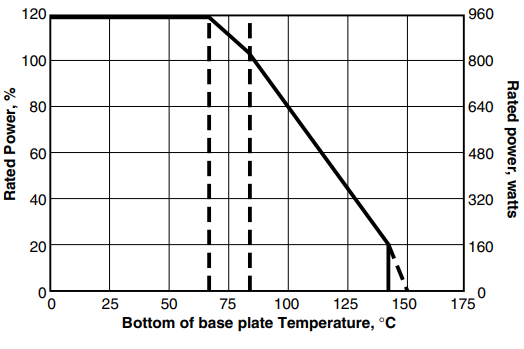

800W at 85°C bottom case temp. This value is only valid by using a thermal conduction to the heatsink Rth-cs<0.025°K/W. This value can be reached by using thermal transfer compound with a heat conduc-tivity of 1W/mK. The flatness of the cooling plate must be better than 0.05mm overall. The roughness of the surface should not exceed 6.4μm

Method:

1,000 W/10sec

Typical Results - ∆R:

0.4%

Method:

56 days/40°C/95%

Typical Results - ∆R:

0.25%

Method:

-55/+125/5 cycles

Typical Results - ∆R:

0.20%

Method:

40g/4,000 times

Typical Results - ∆R:

0.25%

Method:

2-500Hz/10g

Typical Results - ∆R:

0.25%

Method:

Pn 30 min. on/30 min off, 1,000cyl

Typical Results - ∆R:

0.40%

Method:

200N

Typical Results - ∆R:

0.05%
