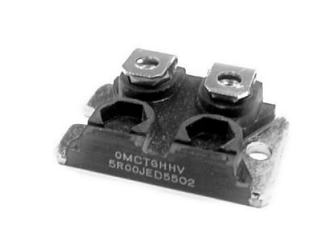

Due to their non-inductive design, these resistors are ideally suited for high-frequency and pulse-load applications. Available in 120- or 200-watt sizes, this resistor is designed for direct mounting onto a heatsink. Popular applications include variable speed drives, power supplies, control devices, telecom, robotics, motor controls, and other switching designs.
Characteristics
Derating
Best results can be reached by using a thermal transfer compound with a heat conductivity of better than 1W/mK
Configurations
(per package)
Performance Data
Requirements to be achieved under the following conditions: Tamb=25°C, THS=70°C, Papplied=Pn

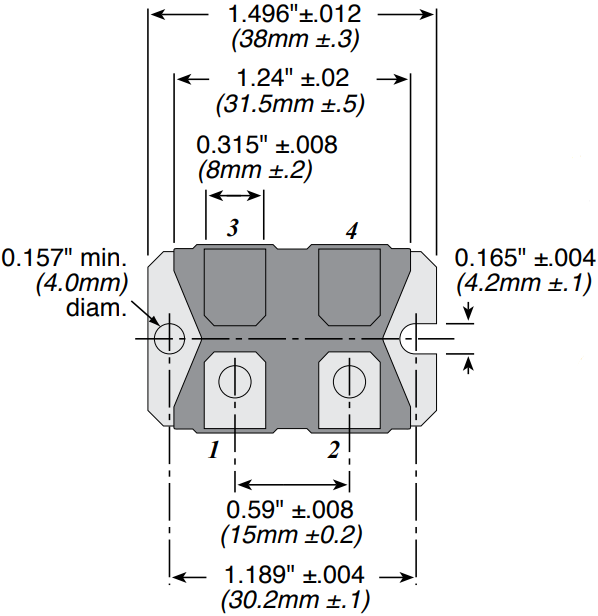

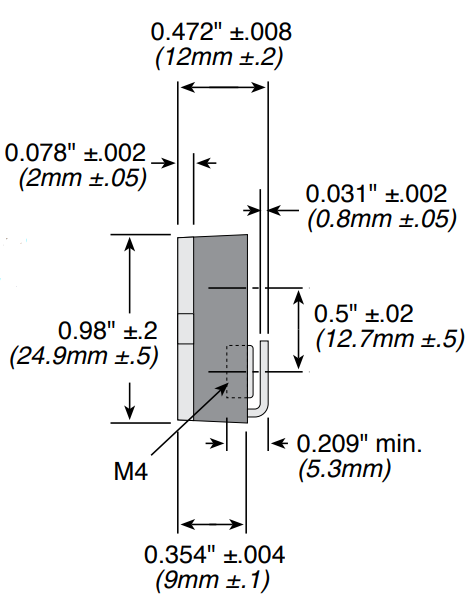

Dimensions
(in./mm)

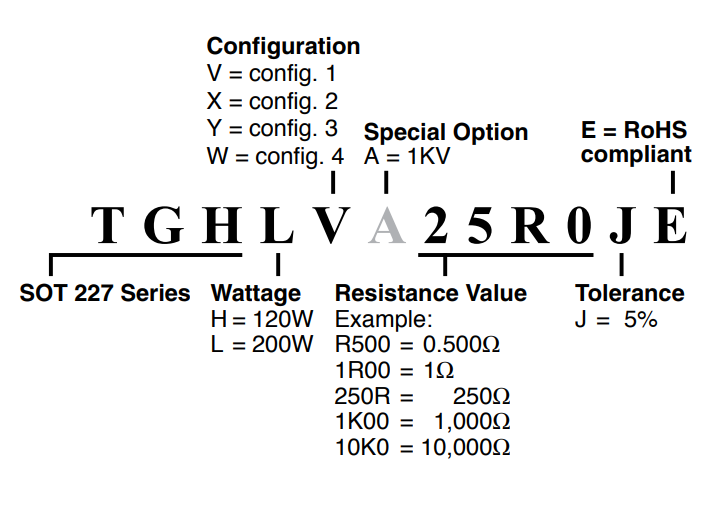

Ordering Information
Standard Part Numbers
120 Watt TGHH
200 Watt TGHL
THIS PRODUCT IS DESIGNED FOR USE WITH PROPER HEATSINKING.
Maximum base plate temperature of the resistor must be monitored and kept within specified limits to establish the power rating. Best technique is to attach a thermocouple to the side of the base plate of the resistor. Temperature of plastic housing or heat sink cannot be used to establish rating of the resistor.
