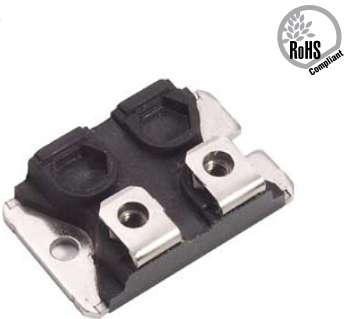

TGH600 Series Datasheet

600 Watt Thick Film SOT227 Package

Due to the TGH600's non-inductive design, they are deally suited for high-frequency and pulseload applications. The TGH600 series resistors are designed for direct mounting onto a heatsink and provides up to 600 watts of power dissipation. Popular applications include variable speed drives, power supplies, control devices, telecom, robotics, motor controls, and other switching designs.

Characteristics

0.25 to 1K

±10%; ±5% on request

±250ppm/°C (others on request)

1000V DC (higher voltage on request)

600W at 85°C bottom case temperature. Note: Liquid cooling required to achieve full power rating.

Dielectric strength up to 4,000VDC against ground

between R1 and R2: 500V; 1,000V on request

2kVrms, < 80pC

10GΩ min. at 1kV

1.25 x rated power at 85°C bottom case temp. for 10 sec, ΔR = 0.4% max.

-55°C to +155°C

(static) 1.3 Nm to 1.5 Nm M4 screws

(static) 1.1 Nm to 1.3 Nm M4 screws, screw-in depth max. 5mm

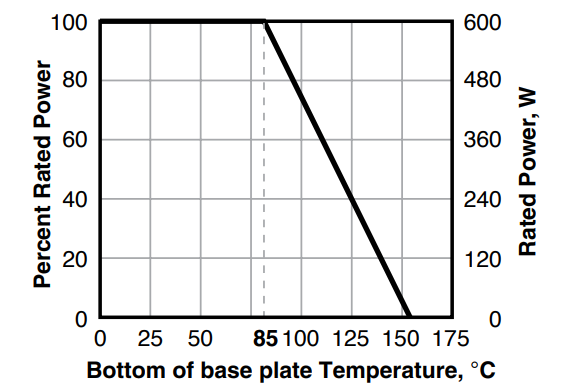

Derating

Derating (thermal resistance): 8.33 W/K (0.12 K/W) (for conf. 1, 2, 3) Best results can be obtained by using a thermal transfer compound with a heat con- ductivity of at least 2.9 W/mK. The flatness of the cooling plate must be better than 0.05 mm overall. Surface roughness should not exceed 6.4 μm.

Configurations

(per package)

Performance Data

Method: MIL-Std-202, Method 106

ΔR: (0.5% + 0.001W) max

Method: Mil-Std-202, Method 107, Cond F

ΔR: (0.3% + 0.01W) max

Method: MIL-Std-202, Method 211, Cond A (pull test) 2.4N

ΔR: (0.2% = 0.01W) max

Method: MIL-Std-202, Method 204, Cond D

ΔR: (0.2% + 0.01W) max

Method: 20 years (120,000 hours) Operating failure rate of 8.3 x 10-7 fail/hour.

ΔR: -

Requirements to be achieved under the following conditions: Tamb=25°C, THS=70°C, Papplied=Pn

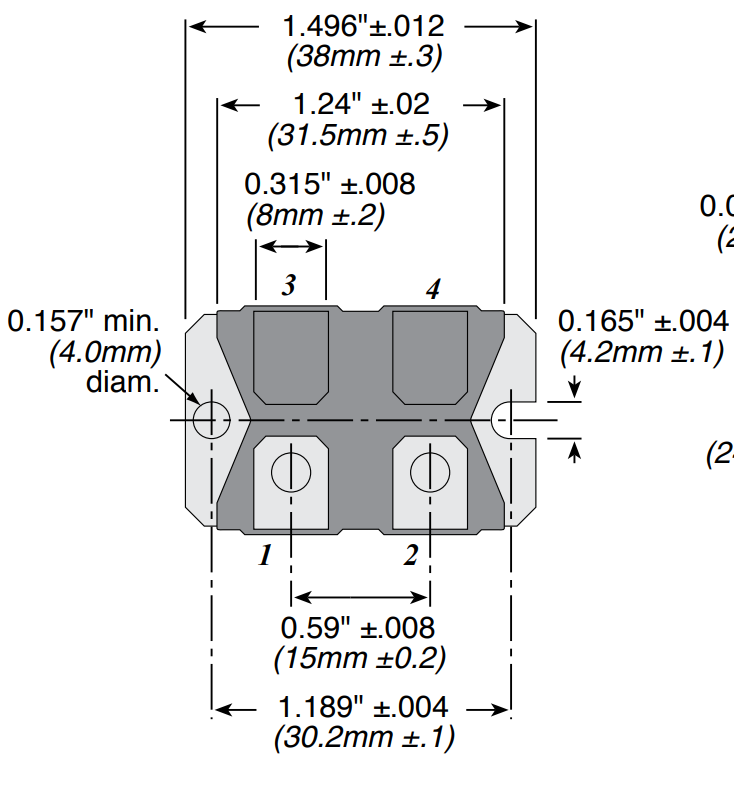

Dimensions

(in./mm)

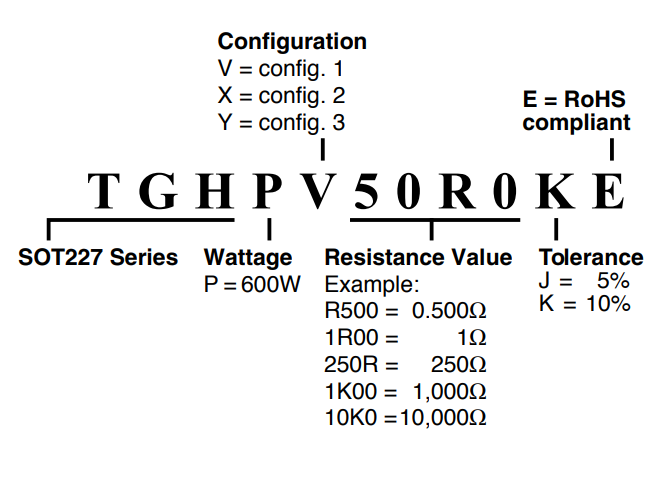

Ordering Information

Standard Part Numbers

TGHPVR500KE
TGHPV1R00KE
TGHPV5R00KE
TGHPV7R50KE
TGHPV10R0KE
TGHPV15R0KE
TGHPV27R0KE
TGHPV50R0KE

TGHPV68R0KE
TGHPV100RKE
TGHPV150RKE
TGHPV250RKE
TGHPV470RKE
TGHPV750RKE
TGHPV1K00KE

THIS PRODUCT IS DESIGNED FOR USE WITH PROPER HEATSINKING.

Maximum base plate temperature of the resistor must be monitored and kept within specified limits to establish the power rating. Best technique is to attach a thermocouple to the side of the base plate of the resistor. Temperature of plastic housing or heat sink cannot be used to establish rating of the resistor.
