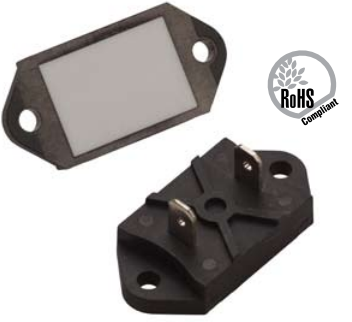

This thick-film resistor is suited for lower power applications and comes in a molded package. Suitable for variable speed drives, power supply, control equipment, communication, automatic control, engine control, etc.
Features
- Thermally efficient design uses ceramic base plate for better dissipation
- Non-Inductive design
- ROHS compliant
- Materials in accordance with UL 94 V-0/li>
Characteristics
Derating
A thermal interface material with a specific thermal resis- tance >3.4W / (mK) and a printed thickness of <0.15mm shall be pre-applied on the
resistor
Suggested Mounting Procedure
1) Position component and press down by hand
2) Fix both mounting screws (M3) with 0.1 to 0.2 Nm torque
3) Apply final torque to mounting screws of 0.6 to 0.7 Nm

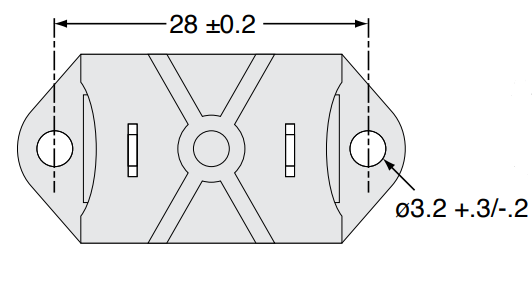

Dimensions
Ordering Information
THIS PRODUCT IS DESIGNED FOR USE WITH PROPER HEATSINKING.
Maximum base plate temperature of the resistor must be monitored and kept within specified limits to establish the power rating. Best technique is to attach a thermocouple to the side of the base plate of the resistor. Temperature of plastic housing or heat sink cannot be used to establish rating of the resistor.
