TWM/TWW Series Datasheet

Ceramic Housed Radial Terminal Power

Res Tww Twm product image



The TWM/TWW series radial terminal power resistors offer significantboard space savings over axial terminal products. Generated heat is also kept away from the circuit board. They are recommended for commercial applications requiring low cost.



Features

  • Economical Commercial Grade for general purpose use
  • Wirewound and Metal Oxide construction
  • Wide resistance range
  • Flameproof inorganic construction

Series Specifications

Wattage: 3

Resistance: 0.01-39Ω

Voltage: 250

Element: Wire

Wattage: 5

Resistance: 0.01-47Ω

Voltage: 350

Element: Wire

Wattage: 10

Resistance: 0.04-990Ω

Voltage: 750

Element: Wire

Wattage: 15

Resistance: 0.1Ω-560Ω

Voltage: 700

Element: Wire

Wattage: 20

Resistance: 0.1Ω-560Ω

Voltage: 750

Element: Wire

Wattage: 3

Resistance: 43-50KΩ

Voltage: 250

Element: Metal oxide

Wattage: 5

Resistance: 51-50KΩ

Voltage: 350

Element: Metal oxide

Wattage: 10

Resistance: 1000-50KΩ

Voltage: 750

Element: Metal oxide

Wattage: 15

Resistance: 561Ω-200KΩ

Voltage: 700

Element: Metal oxide

Wattage: 20

Resistance: 561Ω-200KΩ

Voltage: 750

Element: Metal oxide

Characteristics

Ceramic

Fiberglass

Cement based

5% standard

0.01-20Ω ±400ppm/°C; > 20-10Ω ±350ppm/°C

1,000VAC

TWW: 10x rated power for 5 sec.; TWM: 5x rated power for 5 sec.15 & 20 watt: 2.5x RCWV for 5 sec.

-55°C to 275°C

15°C-35°C, humidity: 25%-75%

Derating

Res Tww Twn Graph

Dimensions

Res Tww Twm Dimensions 1
Res Tww Twm Dimensions 2
Res Tww Twm Dimensions 3

H: 0.98 / 25

T(in./mm) ±1mm: 0.33 / 8.5

W: 0.49 / 12.5

H: 0.98 / 25

T(in./mm) ±1mm: 0.35 / 9

W: 0.51 / 13.0

H: 1.97 / 50

T(in./mm) ±1mm: 0.35 / 9

W: 0.49 / 12.5

Ordering Information

Res Tww Twm Order Info

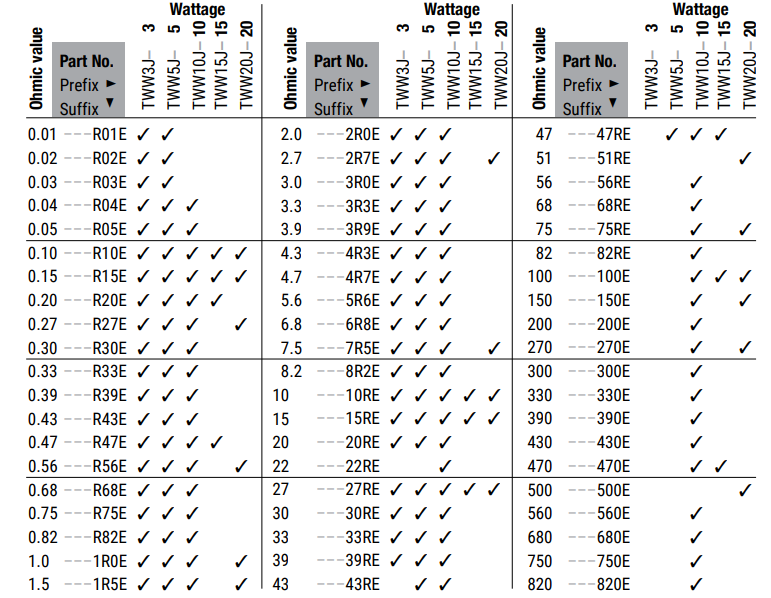

Standard part numbers for TWW series

Res Tww Twm Chart 1



Standard part numbers for TWM series

Res Tww Twm Chart 2
