Features
Inquires are welcome regarding special resistance values, frames, screened enclosures, heat shields and packages

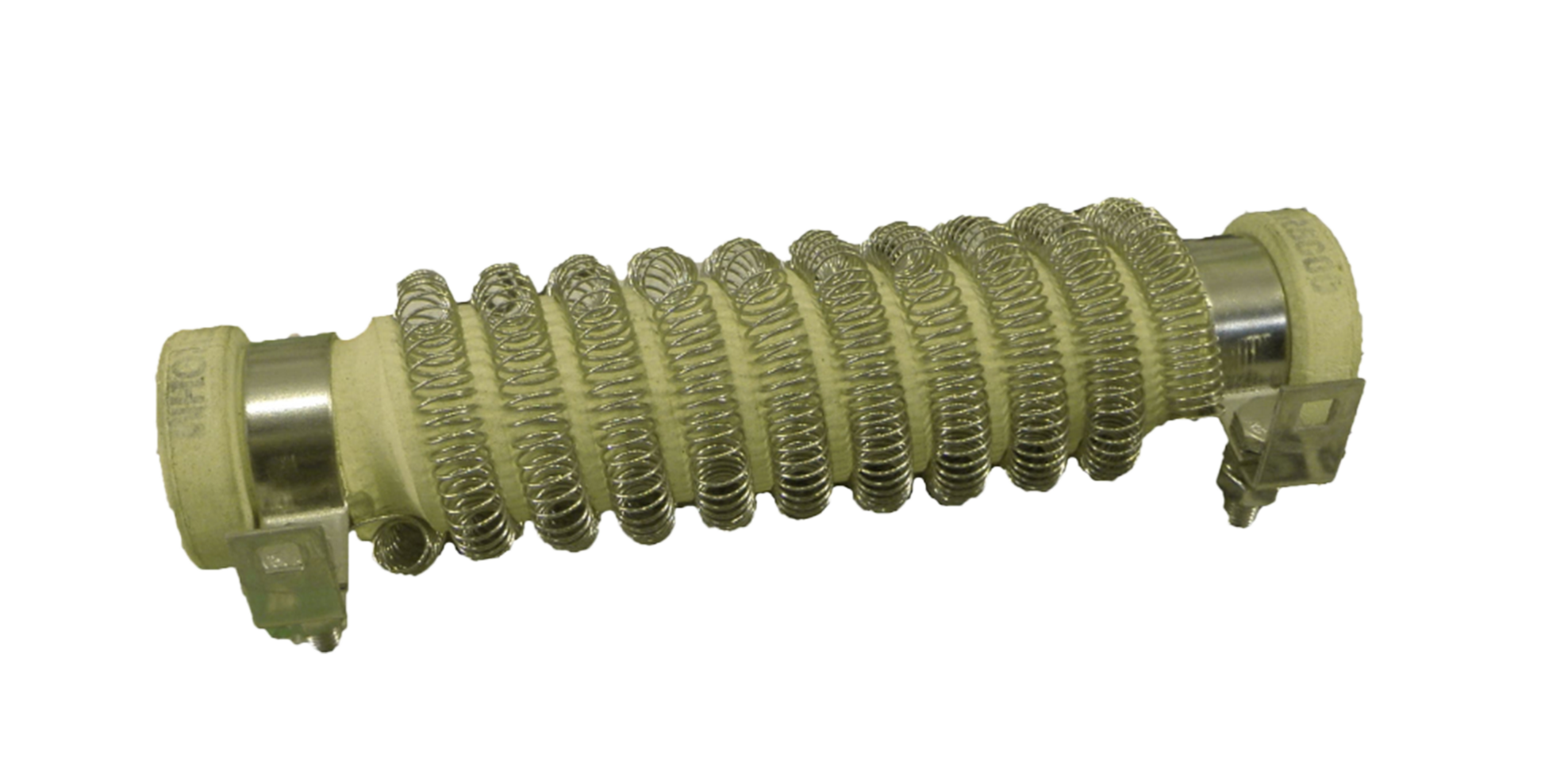

The WLRH is a tough, versatile resistor appropriate for the following applications: motor starting and speed control, neutral grounding, lighting ballasts, and A.C. compressor buffers. This resistor can also be used in heating applications. Choose from 45 models ranging from 0.25 to 250 Ohms to best fit your specific requirements. Resistors feature nickel-copper, nickel-chrome or stainless steel wire wound in a double helix around the center core, depending on size and model. All have ceramic cores with a spiral groove to grip the coiled wire. The 90° flat bus style terminals are corrosion resistant stainless steel. Other mounting options are available; contact us about your specific requirements.
Characteristics
Dimensions
