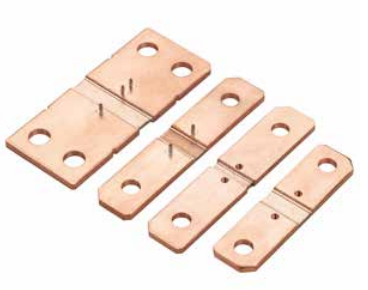

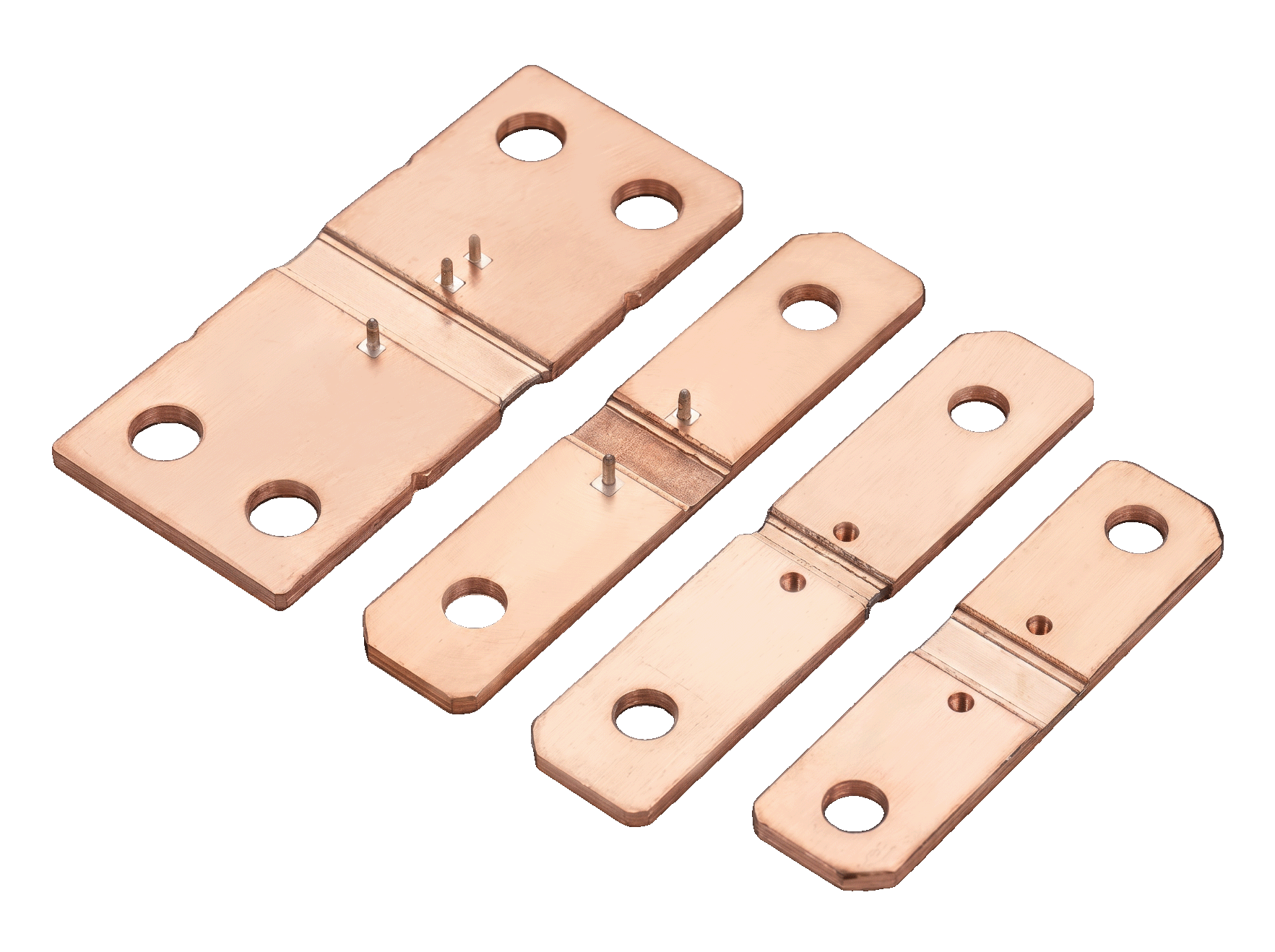

SHA Series Datasheet

Resistance (μΩ):

50, 100

TCR (ppm/°C):

175ppm (-60°C - 175°C), 100ppm (20°C - 60°C)

Rated Current (A) :

700, 500

Current Coefficient:

< 10ppm/A, < 7ppm/A

Rated Power (watts):

25

Weight (g):

35

Resistance (μΩ):

50, 100

TCR (ppm/°C):

175ppm (-60°C - 175°C), 100ppm (20°C - 60°C)

Rated Current (A) :

840, 600

Current Coefficient:

< 10ppm/A, < 7ppm/A

Rated Power (watts):

36

Weight (g):

40

Resistance (μΩ):

50

TCR (ppm/°C):

100ppm (-60°C - 175°C), 50ppm (20°C - 60°C)

Rated Current (A) :

1000

Current Coefficient:

< 10ppm/A

Rated Power (watts):

50

Weight (g):

80

25W, 36W, 50W

±0.5%, ±1%, ±5%

50μΩ 100μΩ, 125μΩ, 250μΩ Other resistance values can be customized

-55°C / 150°C, 1000 cycles, 15 min-utes each, ±0.5% ΔR

5 times rated power, 5 seconds, ±0.5% ΔR

-55°C for 24 hours, ±0.5% ΔR

170°C for 1000 hours, ±1.0% ΔR

+85°C, 85% RH 0.1 times rated power, 1000 hours, ±0.5% ΔR

100G 6mS, 5 times, ±0.5% ΔR

Frequency varied 10Hz to 2000Hz in 1 minute, X-Y-Z direction, 12 hours, ±0.5% ΔR

Rated power, 70°C, 1.5 hours on, 0.5 hours off, 1000 hours, ±1.0% ΔR

35g, 40g, 80g

Tin plated, interference fit
