BG Series Datasheet

Heatsink for BGA, CPU and GPU

Ohmite introduces the low cost, BG-series, standard heat sinks for BGAs and PBGAs, etc. devices. This simple heat sink can be attached to devices with adhesive thermal tape (included with the heatsink kit). The heat sink offers black anodized surface finish and can be used in either natural (free) or forced convection cooling applications. Custom heat sinks are available upon request.

Series Specifications

All heat sinks include thermal tape for proper attachment

Dimensions (mm):

15 X 15 X 12.5

Surface area (mm2):

3,040

Weight(g):

3.4

Dimensions (mm):

15 X 15 X 7.5

Surface area (mm2):

2,060

Weight(g):

2.6

Dimensions (mm):

17 X 17 X 7.5

Surface area (mm2):

2,276

Weight(g):

3

Dimensions (mm):

27 X 27 X 17.5

Surface area (mm2):

11,679

Weight(g):

12.5

Dimensions (mm):

31 X 31 X 7.5

Surface area (mm2):

6,663

Weight(g):

9.5

Dimensions (mm):

19 X 19 X 9.0

Surface area (mm2):

3,337

Weight(g):

4.1

Dimensions (mm):

45 X 45 X 12.5

Surface area (mm2):

20,893

Weight(g):

25.8

Dimensions (mm):

42.5 X 42.5 X 12.5

Surface area (mm2):

18,160

Weight(g):

22.6

Dimensions (mm):

37.5 X 37.5 X 12.5

Surface area (mm2):

15,225

Weight(g):

18.4

Dimensions (mm):

32.5 X 32.5 X 7.5

Surface area (mm2):

7,034

Weight(g):

10.3

Characteristics

Aluminum Alloy 6063-T5 or Equivalent with black anodized finish

Thermal tape standard (adhesive tape included with heatsink)

PCB level heat sink, no soldering

Finished parts are compliant with RoHS.

Thermal Performance

Thermal Interface Material Guide (included with heatsink)

Manufacturer:

Parker Chromerics

Thermal impedance (C-in2/W):

0.25

Thickness (in.):

0.009

Comments:

Good adhesion, Super thermal performance

Dimensions

Height “H”(mm):

12.5

Width “W”(mm):

30.0

Width “B”(mm):

15.0

Length “L”(mm):

15.0

Surface Area(mm2):

3,040

Weight(g):

3.4

Height “H”(mm):

7.5

Width “W”(mm):

28.0

Width “B”(mm):

15.0

Length “L”(mm):

15.0

Surface Area(mm2):

2,060

Weight(g):

2.6

Height “H”(mm):

7.5

Width “W”(mm):

28.0

Width “B”(mm):

17.0

Length “L”(mm):

17.0

Surface Area(mm2):

2,276

Weight(g):

3.0

Height “H”(mm):

17.5

Width “W”(mm):

48.0

Width “B”(mm):

27.0

Length “L”(mm):

27.0

Surface Area(mm2):

11,679

Weight(g):

12.5

Height “H”(mm):

7.5

Width “W”(mm):

44.0

Width “B”(mm):

31.0

Length “L”(mm):

31.0

Surface Area(mm2):

6,663

Weight(g):

9.5

Height “H”(mm):

9.0

Width “W”(mm):

26.0

Width “B”(mm):

19.0

Length “L”(mm):

19.0

Surface Area(mm2):

3,337

Weight(g):

4.1

Height “H”(mm):

12.5

Width “W”(mm):

68.0

Width “B”(mm):

45.0

Length “L”(mm):

45.0

Surface Area(mm2):

20,893

Weight(g):

25.8

Height “H”(mm):

12.5

Width “W”(mm):

72.0

Width “B”(mm):

42.5

Length “L”(mm):

42.5

Surface Area(mm2):

18,160

Weight(g):

22.6

Height “H”(mm):

12.5

Width “W”(mm):

60.0

Width “B”(mm):

37.5

Length “L”(mm):

37.5

Surface Area(mm2):

15,225

Weight(g):

18.4

Height “H”(mm):

7.5

Width “W”(mm):

44.0

Width “B”(mm):

32.5

Length “L”(mm):

32.5

Surface Area(mm2):

7,034

Weight(g):

10.3

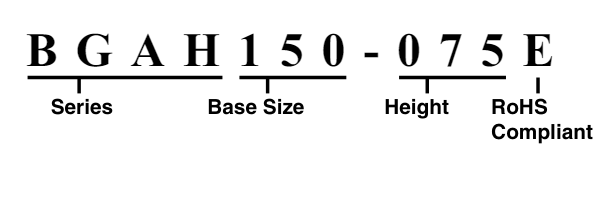

Ordering Information

Standard Part Numbers

BGAH150-075E
BGAH150-125E
BGAH170-075E
BGAH190-090E
BGAH270-175E
BGAH310-075E
BGAH325-075E
BGAH375-125E
BGAH425-125E
BGAH450-125E
