The Ohmite CP4 series Liquid Coldplates are designed for Ohmite heatsinkable type resistors, such as TAP600, TAP800, TA1K0, TA2K0, and various SOT-227 resistor packages. The CP series also provides maximum heat removal for SCRs, rectifiers, diodes, thyristors, and other high-power semiconductor devices. The CP series is customizable to fit multiple applications. Length and mounting hole patterns can be specified.
Features
- Designed for Ohmite products, Pre drilled hole patterns for standard Ohmite planar resistors TAP600/ TAP800 and TAP1K0/TAP2K0.
- Design flexibility, Chill Plate lengths can be configured as well as mounting hole patterns to accept a multitude of devices.
- Thermally efficient copper mounting surface for the most efficient heat transfer.
Series Specifications
* @ flow of 1.5 GPM
Characteristics
Heat Dissipation
Graph data produced using Ohmite TAP2K0.

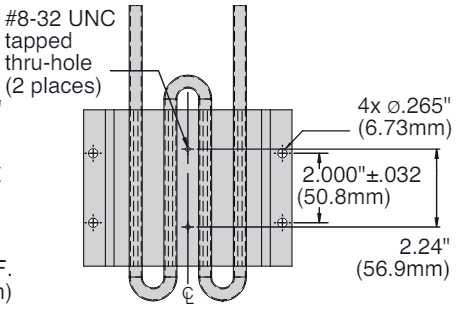

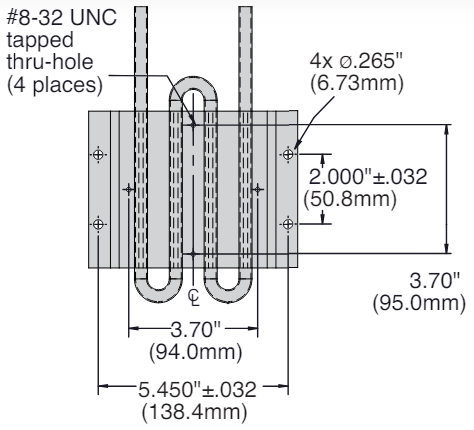

Dimensions
CP4A-114A-108E
CP4A-114B-108E
CP4A-114C-108E
Ordering Information
