PDFs and Datasheets F and R Series Heatsink Datasheet

F and R Series Heatsinks Datasheet

For TO-218, TO-220 and TO-247 devices

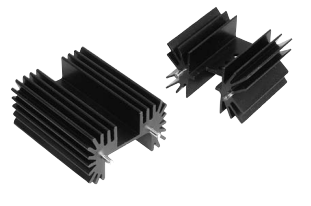

Sink F R Product Image



Features

  • For vertical mounting with solderable pins
  • For TO-220, TO-218, TO-247

Series Specifications

Height(in. ±.010 / mm ±.25):

1.0/25.4

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

8,901

Weight (g):

25

Thermal Res.*(°C/W):

4.8

Height(in. ±.010 / mm ±.25):

1.0/25.4

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

8,901

Weight (g):

25

Thermal Res.*(°C/W):

4.8

Height(in. ±.010 / mm ±.25):

2.0/50.8

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

17,065

Weight (g):

51

Thermal Res.*(°C/W):

3.5

Height(in. ±.010 / mm ±.25):

2.5/63.5

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

21,148

Weight (g):

63

Thermal Res.*(°C/W):

3.1

Height(in. ±.010 / mm ±.25):

1.0 / 25.4

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

9,285

Weight (g):

18

Thermal Res.*(°C/W):

4.7

Height(in. ±.010 / mm ±.25):

1.5 / 38.1

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

13,756

Weight (g):

27

Thermal Res.*(°C/W):

3.8

Height(in. ±.010 / mm ±.25):

2.0 / 50.8

For Package Type

TO-220, -218, -2470

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

18,222

Weight (g):

37

Thermal Res.*(°C/W):

3.4

Height(in. ±.010 / mm ±.25):

2.5 / 63.5

For Package Type

TO-220, -218, -247

Ohmite Resistor Series:

TBH25,TCH35, TEH70, TEH100

Surface Area(mm2):

22,814

Weight (g):

46

Thermal Res.*(°C/W):

3

*Natural convection

Characteristics

Black anodized

6063-T5 aluminum

100% Tin (Sn)

0.091” dia. pre-tinned pins.



Heat Dissipation

Sink F R Image1
Sink F R Image2

Dimensions

Height(in. ±.010 / mm ±.25):

1.0/25.4

Height(in. ±.010 / mm ±.25):

1.5/38.1

Height(in. ±.010 / mm ±.25):

2.0/50.8

Height(in. ±.010 / mm ±.25):

2.5/63.5

Height(in. ±.010 / mm ±.25):

1.0 / 25.4

Height(in. ±.010 / mm ±.25):

1.5 / 38.1

Height(in. ±.010 / mm ±.25):

2.0 / 50.8

Height(in. ±.010 / mm ±.25):

2.5 / 63.5

NOTICE:

Dimensional change. Dimensions shown are for products produced after September 2012.

R Series

fr dimensions

F Series

fr dimensions

Ordering Information

Sink F R Ordering Infro



Standard part numbers

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk

Description:

Heat sink for TO-220, TO-218, TO-247, Black Anodized

Packaging:

Bulk
