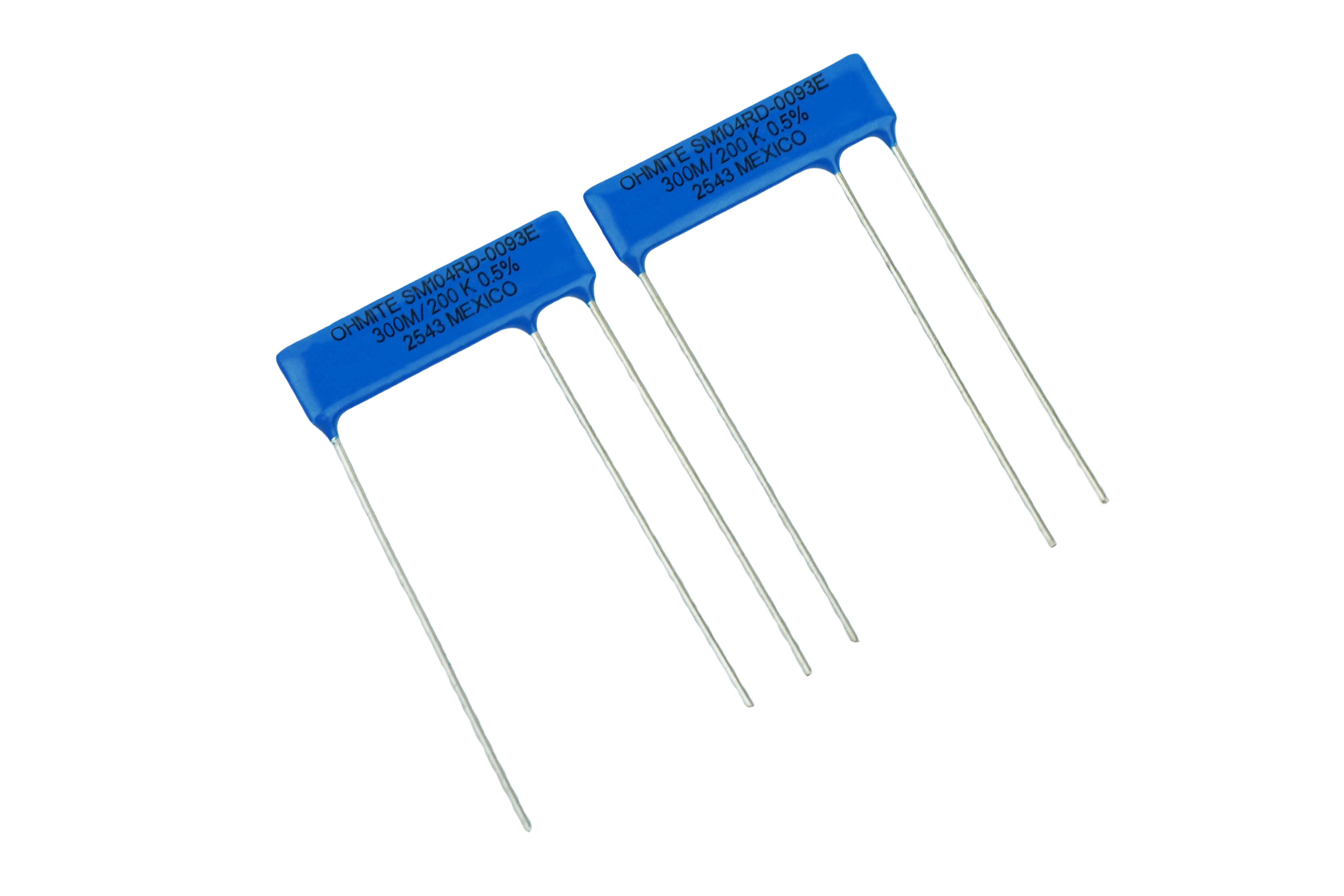

Ohmite’s Slim-Mox provides stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving planar package offers and alternative to traditional high voltage resistors.
Features
- High dielectric & low outgassing epoxy coating
- Low resistor noise
- Non inductive
- RoHS compliant
- Radial terminals
Applications
- HV power supplies
- Medical instrumentation
- Current pulse limiters
- Ionization chambers
Specifications
Resistance Range (Ohms):
100Ω to 500M
Power @25°C:
0.25W
Max. Operating Voltage:
1.5KV
Capacitance (pf):
1.00
Resistance Range (Ohms):
100Ω to 1,000M
Power @25°C:
0.50W
Max. Operating Voltage:
2.0KV
Capacitance (pf):
1.00
Resistance Range (Ohms):
200Ω to 5,000M
Power @25°C:
1.00W
Max. Operating Voltage:
5.0KV
Capacitance (pf):
0.90
Resistance Range (Ohms):
250Ω to 5,000M
Power @25°C:
1.25W
Max. Operating Voltage:
7.5KV
Capacitance (pf):
0.75
Resistance Range (Ohms):
500Ω to 5,000M
Power @25°C:
1.50W
Max. Operating Voltage:
10.0KV
Capacitance (pf):
0.70
Resistance Range (Ohms):
750Ωto 5,000M
Power @25°C:
2.00W
Max. Operating Voltage:
15.0KV
Capacitance (pf):
0.65
Resistance Range (Ohms):
1K to 5,000M
Power @25°C:
2.50W
Max. Operating Voltage:
20.0KV
Capacitance (pf):
0.60
Resistance Range (Ohms):
500Ω to 5,000M
Power @25°C:
1.50W
Max. Operating Voltage:
5.0KV
Capacitance (pf):
1.10
Resistance Range (Ohms):
2K to 5,000M
Power @25°C:
2.50W
Max. Operating Voltage:
15.0KV
Capacitance (pf):
0.75
Resistance Range (Ohms):
2K to 5,000M
Power @25°C:
3.00W
Max. Operating Voltage:
20.0KV
Capacitance (pf):
0.65
Resistance Range (Ohms):
3K to 5,000M
Power @25°C:
3K to 5,000M
Max. Operating Voltage:
3.50W
Capacitance (pf):
0.60
Resistance Range (Ohms):
3K to 5,000M
Power @25°C:
3.50W
Max. Operating Voltage:
15.0KV
Capacitance (pf):
0.75
Resistance Range (Ohms):
4K to 5,000M
Power @25°C:
4.00W
Max. Operating Voltage:
20.0KV
Capacitance (pf):
0.50
Resistance Range (Ohms):
5K to 5,000M
Power @25°C:
4.50W
Max. Operating Voltage:
25.0KV
Capacitance (pf):
0.40
Resistance Range (Ohms):
3K to 5,000M
Power @25°C:
3.00W
Max. Operating Voltage:
10.0KV
Capacitance (pf):
1.00
Resistance Range (Ohms):
5K to 5,000M
Power @25°C:
5.00W
Max. Operating Voltage:
20.0KV
Capacitance (pf):
0.80
Resistance Range (Ohms):
5K to 5,000M
Power @25°C:
5.50W
Max. Operating Voltage:
25.0KV
Capacitance (pf):
0.50
*Contact Ohmite for custom configurations. *Maximum voltage and power rating determined by Ohm’s law: P=V2/R
Characteristics
Thick film on Alumina
Epoxy or Silicone
100 Ohms to 5,000M
0.25W to 5.5W
1.5KV to 25KV
RoHS solder composition is 96% Sn, 3.5% Ag, 0.5% Cu
0.5% to 20%; not all tolerances available in all values
-55°C to +110°C
See Table

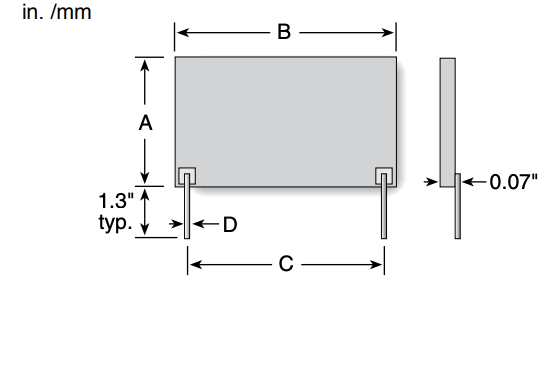

Dimensions
Power @25°C
0.25W
A max.
0.30” / 7.62
B max.
0.30” / 7.62
C ±0.025
0.10” / 2.54
D ±0.002
0.025” / 0.635
Power @25°C
0.50W
A max.
0.34” / 8.64
B max.
0.33” / 8.38
C ±0.025
0.20” / 5.08
D ±0.002
0.025” / 0.635
Power @25°C
1.00W
A max.
0.34” / 8.64
B max.
0.58” / 14.73
C ±0.025
0.40” / 10.16
D ±0.002
0.032” / 0.813
Power @25°C
1.25W
A max.
0.34” / 8.64
B max.
0.83” / 21.08
C ±0.025
0.60” / 15.24
D ±0.002
0.032” / 0.813
Power @25°C
1.50W
A max.
0.34” / 8.64
B max.
1.08” / 27.43
C ±0.025
0.90” / 22.86
D ±0.002
0.032” / 0.813
Power @25°C
2.00W
A max.
0.34” / 8.64
B max.
1.58” / 40.13
C ±0.025
1.40” / 35.56
D ±0.002
0.032” / 0.813
Power @25°C
2.50W
A max.
0.34” / 8.64
B max.
2.08” / 52.83
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
1.50W
A max.
0.59” / 14.99
B max.
0.58” / 14.73
C ±0.025
0.40” / 10.16
D ±0.002
0.032” / 0.813
Power @25°C
2.00W
A max.
0.59” / 14.99
B max.
1.08” / 27.43
C ±0.025
0.90” / 22.86
D ±0.002
0.032” / 0.813
Power @25°C
2.50W
A max.
0.59” / 14.99
B max.
1.58” / 40.13
C ±0.025
1.40” / 35.56
D ±0.002
0.032” / 0.813
Power @25°C
3.00W
A max.
0.59” / 14.99
B max.
2.08” / 52.83
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
3.50W
A max.
0.59” / 14.99
B max.
2.58” / 65.53
C ±0.025
2.40” / 60.96
D ±0.002
0.032” / 0.813
Power @25°C
3.50W
A max.
0.84” / 21.34
B max.
1.58” / 40.13
C ±0.025
1.40” / 35.56
D ±0.002
0.032” / 0.813
Power @25°C
4.00W
A max.
0.84” / 21.34
B max.
2.08” / 52.83
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
4.50W
A max.
0.84” / 21.34
B max.
2.58” / 65.53
C ±0.025
2.40” / 60.96
D ±0.002
0.032” / 0.813
Power @25°C
3.00W
A max.
1.09” / 27.69
B max.
1.08” / 27.43
C ±0.025
0.90” / 22.86
D ±0.002
0.032” / 0.813
Power @25°C
5.00W
A max.
1.09” / 27.69
B max.
2.08” / 52.83
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
5.50W
A max.
1.09” / 27.69
B max.
2.58” / 65.53
C ±0.025
2.40” / 60.96
D ±0.002
0.032” / 0.813
Features
- Custom configurations are available. Contact Ohmite with your specifications
- RoHS compliant
Multiple taps are provided on the Slim-Mox RD for use in advanced circuit designs. Tight ratio tolerances make these resistors ideal for precision applications requiring consistent performance.
Specifications
Power @25°C:
0.75W
Operating Voltage:
5.0KV
Power @25°C:
1.00W
Operating Voltage:
10.0KV
Power @25°C:
1.50W
Operating Voltage:
12.0KV
Power @25°C:
2.00W
Operating Voltage:
15.0KV
Power @25°C:
1.50W
Operating Voltage:
10.0KV
Power @25°C:
2.00W
Operating Voltage:
12.0KV
Power @25°C:
2.50W
Operating Voltage:
20.0KV
Power @25°C:
3.00W
Operating Voltage:
25.0KV
Power @25°C:
3.00W
Operating Voltage:
12.0KV
Power @25°C:
3.50W
Operating Voltage:
20.0KV
Power @25°C:
4.00W
Operating Voltage:
25.0KV
Power @25°C:
4.50W
Operating Voltage:
20.0KV
Power @25°C:
5.00W
Operating Voltage:
25.0KV
Characteristics
1M to 5,000M ohms
100:1 - 5000 : 1 To specify dividers outside this range, please see our website. A complete description of the SLIM-MOX Divider is required. EXAMPLE: RT = 500MΩ 5% R1 = 499.5MΩ 5% R2 = 500KΩ 1% Ratio = RT / R2 = 1,000: 1, 1%
Thick film on Alumina.
0.5% to 5%
TCR tracking to 10ppm and VCR tracking to 1ppm.
Dimensions
C
0.60”/ 15.24
E
0.20”/ 5.08
C
0.90”/ 22.86
E
0.20”/ 5.08
C
1.40”/ 35.56
E
0.20”/ 5.08
C
1.90”/ 48.26
E
0.60”/ 15.24
C
0.90”/ 22.86
E
0.20”/ 5.08
C
1.40”/ 35.56
E
0.20”/ 5.08
C
1.90”/ 48.26
E
0.40”/ 10.16
C
2.40”/ 60.96
E
0.20”/ 5.08
C
1.40”/ 35.56
E
0.30”/ 7.62
C
1.90”/ 48.26
E
0.30”/ 7.62
C
2.40”/ 60.96
E
0.20”/ 5.08
C
1.90”/ 48.26
E
0.30”/ 7.62
C
2.40”/ 60.96
E
0.20”/ 5.08
The Slim-Mox HT provides a higher power rating for high ambient temperature environments. Appropriate for mounting near heat generating components. The Slim-Mox HT is finished with a rugged silicone coating suitable for most environments.
Features
- Outstanding voltage coefficient
- High temperature silicone coating
- Low resistor noise
- Noninductive
- Custom configurations are available. Contact Ohmite with your specifications
- RoHS compliant
- Radial Terminals
Applications
- HV power supplies
- Medical instrumentation
- Current pulse limiters
- Ionization chambers
Specifications
Resistance Range (Ohms):
100Ω to 500M
Power @25°C:
0.40W
Voltage Rating:
1.5KV
Resistance Range (Ohms):
100Ω to 1,000M
Power @25°C:
0.75W
Voltage Rating:
2.0KV
Resistance Range (Ohms):
200Ω to 5,000M
Power @25°C:
1.50W
Voltage Rating:
5.0KV
Resistance Range (Ohms):
250Ω to 5,000M
Power @25°C:
2.00W
Voltage Rating:
7.5KV
Resistance Range (Ohms):
500Ω to 5,000M
Power @25°C:
2.50W
Voltage Rating:
10.0KV
Resistance Range (Ohms):
750Ω to 5,000M
Power @25°C:
3.25W
Voltage Rating:
15.0KV
Resistance Range (Ohms):
1K to 5,000M
Power @25°C:
4.25W
Voltage Rating:
20.0KV
Resistance Range (Ohms):
500Ω to 5,000M
Power @25°C:
2.50W
Voltage Rating:
5.0KV
Resistance Range (Ohms):
1K to 5,000M
Power @25°C:
3.25W
Voltage Rating:
10.0KV
Resistance Range (Ohms):
2K to 5,000M
Power @25°C:
4.25W
Voltage Rating:
15.0KV
Resistance Range (Ohms):
2K to 5,000M
Power @25°C:
5.00W
Voltage Rating:
20.0KV
Resistance Range (Ohms):
3K to 5,000M
Power @25°C:
5.75W
Voltage Rating:
25.0KV
Resistance Range (Ohms):
3K to 5,000M
Power @25°C:
5.50W
Voltage Rating:
15.0KV
Resistance Range (Ohms):
4K to 5,000M
Power @25°C:
6.75W
Voltage Rating:
20.0KV
Resistance Range (Ohms):
5K to 5,000M
Power @25°C:
7.50W
Voltage Rating:
25.0KV
Resistance Range (Ohms):
3K to 5,000M
Power @25°C:
5.00W
Voltage Rating:
10.0KV
Resistance Range (Ohms):
5K to 5,000M
Power @25°C:
8.25W
Voltage Rating:
20.0KV
Resistance Range (Ohms):
5K to 5,000M
Power @25°C:
9.00W
Voltage Rating:
25.0KV
Characterisitcs
Thick film on Alumina
Silicone
100Ω to 5,000M
0.25W to 9.0W
1.5KV to 25KV
0.5% to 20%; not all tolerances available in all values
-55°C to +180°C
Dimensions
Power @25°C
0405W
A max.
0.20” / 5.08
B max.
0.20” / 5.08
C ±0.025
0.10” / 2.54
D ±0.002
0.025” / 0.635
Power @25°C
0.75W
A max.
0.25” / 6.35
B max.
0.25” / 6.35
C ±0.025
0.20” / 5.08
D ±0.002
0.025” / 0.635
Power @25°C
1.50W
A max.
0.25” / 6.35
B max.
0.50” / 12.70
C ±0.025
0.40” / 10.16
D ±0.002
0.032” / 0.813
Power @25°C
2.00W
A max.
0.25” / 6.35
B max.
0.75” / 19.05
C ±0.025
0.60” / 15.24
D ±0.002
0.032” / 0.813
Power @25°C
2.50W
A max.
0.25” / 6.35
B max.
1.00” / 25.40
C ±0.025
0.90” / 22.86
D ±0.002
0.032” / 0.813
Power @25°C
3.25W
A max.
0.25” / 6.35
B max.
1.50” / 38.10
C ±0.025
1.40” / 35.56
D ±0.002
0.032” / 0.813
Power @25°C
4.25W
A max.
0.25” / 6.35
B max.
2.00” / 50.80
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
2.50W
A max.
0.50” / 12.70
B max.
0.50” / 12.70
C ±0.025
0.40” / 10.16
D ±0.002
0.032” / 0.813
Power @25°C
3.25W
A max.
0.50” / 12.70
B max.
1.00” / 38.10
C ±0.025
0.90” / 22.86
D ±0.002
0.032” / 0.813
Power @25°C
4.25W
A max.
0.50” / 12.70
B max.
1.50” / 38.10
C ±0.025
1.40” / 35.56
D ±0.002
0.032” / 0.813
Power @25°C
5.00W
A max.
0.50” / 12.70
B max.
2.00” / 50.80
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
5.75W
A max.
0.50” / 12.70
B max.
2.50” / 63.50
C ±0.025
2.40” / 60.96
D ±0.002
0.032” / 0.813
Power @25°C
5.50W
A max.
0.75” / 19.05
B max.
1.50” / 38.10
C ±0.025
1.40” / 35.56
D ±0.002
0.032” / 0.813
Power @25°C
6.75W
A max.
0.75” / 19.05
B max.
2.00” / 50.80
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
7.50W
A max.
0.75” / 19.05
B max.
2.50” / 63.50
C ±0.025
2.40” / 60.96
D ±0.002
0.032” / 0.813
Power @25°C
5.00W
A max.
1.00” / 25.40
B max.
1.00” / 25.40
C ±0.025
0.90” / 22.86
D ±0.002
0.032” / 0.813
Power @25°C
8.25W
A max.
1.00” / 25.40
B max.
2.00” / 50.80
C ±0.025
1.90” / 48.26
D ±0.002
0.032” / 0.813
Power @25°C
9.00W
A max.
1.00” / 25.40
B max.
2.50” / 63.50
C ±0.025
2.40” / 60.96
D ±0.002
0.032” / 0.813
Features
- Radial Terminals
- RoHS compliant
- High Temperature Operation
Slim-Mox HT RD resistor dividers complete the SlimMox family with the high temperature divider configuration. These resistors are useful wherever multiple voltage drops are needed in a circuit. Designed to customer specifications, the Slim-Mox HT RD resistor utilizes our thick film on alumina technology to offer flexible termination schemes.
Specifications
Power @25°C:
1.25W
Operating Voltage:
5.0KV
Power @25°C:
1.50W
Operating Voltage:
10.0KV
Power @25°C:
2.50W
Operating Voltage:
12.0KV
Power @25°C:
3.25W
Operating Voltage:
15.0KV
Power @25°C:
2.50W
Operating Voltage:
10.0KV
Power @25°C:
3.25W
Operating Voltage:
12.0KV
Power @25°C:
4.25W
Operating Voltage:
20.0KV
Power @25°C:
5.00W
Operating Voltage:
25.0KV
Power @25°C:
4.50W
Operating Voltage:
12.0KV
Power @25°C:
5.00W
Operating Voltage:
20.0KV
Power @25°C:
5.75W
Operating Voltage:
25.0KV
Power @25°C:
6.75W
Operating Voltage:
20.0KV
Power @25°C:
7.50W
Operating Voltage:
25.0KV
Characteristics
1M to 5,000M ohms
100:1 - 5000 : 1 To specify dividers outside this range, please see our website. A complete description of the SLIM-MOX Divider is required. EXAMPLE: RT = 500MΩ 5% R1 = 499.5MΩ 5% R2 = 500KΩ 1% Ratio = RT / R2 = 1,000: 1, 1%
Thick film on Alumina.
0.5% to 5%
TCR tracking to 10ppm and VCR tracking to 1ppm.
Dimensions
Power Rating
1.25W
C
0.60”/ 15.24
E
0.20”/ 5.08
Power Rating:
1.50W
C:
0.90” / 22.86
E:
0.20” / 5.08
Power Rating:
2.50W
C:
1.40” / 35.56
E:
0.20” / 5.08
Power Rating:
3.25W
C:
0.90” / 22.86
E:
0.60” / 15.24
Power Rating:
2.50W
C:
0.90” / 22.86
E:
0.20” / 5.08
Power Rating:
3.25W
C:
1.40” / 35.56
E:
0.20” / 5.08
Power Rating:
4.25W
C:
1.90” / 48.26
E:
0.40” / 10.16
Power Rating:
5.00W
C:
2.40” / 60.96
E:
0.20” / 5.08
Power Rating:
4.50W
C:
1.40” / 35.56
E:
0.30” / 7.62
Power Rating:
5.00W
C:
1.90” / 48.26
E:
0.30” / 7.62
Power Rating:
5.75W
C:
2.40” / 60.96
E:
0.20” / 5.08
Power Rating:
6.75W
C:
1.90” / 48.26
E:
0.30” / 7.62
Power Rating:
7.50W
C:
2.40” / 60.96
E:
0.20” / 5.08
SLIM-MOX
All Products
Temperature /Voltage Coefficients of Resistance
Temp. Coeff. of Resistance* 25 PPM/°C
100 to 300M
Temp. Coeff. of Resistance* 50 PPM/°C
100Ω to 50M
Temp. Coeff. of Resistance* 100 PPM/°C
51M to 500M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
100Ω to 140M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
141M to 500M
Temp. Coeff. of Resistance* 25 PPM/°C
100 to 800M
Temp. Coeff. of Resistance* 50 PPM/°C
100Ω to 100M
Temp. Coeff. of Resistance* 100 PPM/°C
101M to 1,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
100Ω to 270M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
271M to 1,000M
Temp. Coeff. of Resistance* 25 PPM/°C
200 to 1,500M
Temp. Coeff. of Resistance* 50 PPM/°C
200Ω to 250M
Temp. Coeff. of Resistance* 100 PPM/°C
251M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
200Ω to 640M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
641M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
250 to 800M
Temp. Coeff. of Resistance* 50 PPM/°C
250Ω to 440M
Temp. Coeff. of Resistance* 100 PPM/°C
441M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
250Ω to 1,100M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
1,101M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
500 to 2,500M
Temp. Coeff. of Resistance* 50 PPM/°C
500Ω to 450M
Temp. Coeff. of Resistance* 100 PPM/°C
451M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
500Ω to 1,100M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
1,101M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
750 to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
750Ω to 675M
Temp. Coeff. of Resistance* 100 PPM/°C
676M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
750Ω to 1,600M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
1,601M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1K to 2,500M
Temp. Coeff. of Resistance* 50 PPM/°C
1K to 375M
Temp. Coeff. of Resistance* 100 PPM/°C
376M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1K to 940M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
941M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
500 to 1,500M
Temp. Coeff. of Resistance* 50 PPM/°C
500Ω to 200M
Temp. Coeff. of Resistance* 100 PPM/°C
201M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
500Ω to 520M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
521M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1K to 1,750M
Temp. Coeff. of Resistance* 50 PPM/°C
1K to 375M
Temp. Coeff. of Resistance* 100 PPM/°C
376M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1K to 950M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
951M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
2K to 4,500M
Temp. Coeff. of Resistance* 50 PPM/°C
2K to 600M
Temp. Coeff. of Resistance* 100 PPM/°C
601M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
2K to 1,500M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
1,501M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
2K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
2K to 1,000M
Temp. Coeff. of Resistance* 100 PPM/°C
1,001M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
2K to 2,500M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,501M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
3K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
3K to 1,000M
Temp. Coeff. of Resistance* 100 PPM/°C
1,001M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
3K to 2,600M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,601M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
3K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
3K to 1,000M
Temp. Coeff. of Resistance* 100 PPM/°C
1,001M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
3K to 2,600M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,601M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
4K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
4K to 1,200M
Temp. Coeff. of Resistance* 100 PPM/°C
1,201M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
4K to 3,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
3,001M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
5K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
5K to 1,500M
Temp. Coeff. of Resistance* 100 PPM/°C
1,501M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
5K to 4,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
4,001M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
3K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
3K to 1,100M
Temp. Coeff. of Resistance* 100 PPM/°C
1,101M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
3K to 2,800M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,801M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
5K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
5K to 1,250M
Temp. Coeff. of Resistance* 100 PPM/°C
1,251M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
5K to 3,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
3,001M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
5K to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
5K to 1,200M
Temp. Coeff. of Resistance* 100 PPM/°C
1,201M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
5K to 3,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
3,001M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 800M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 70M
Temp. Coeff. of Resistance* 100 PPM/°C
71M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 185M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
186M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 2,500M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 275M
Temp. Coeff. of Resistance* 100 PPM/°C
276M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 720M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
721M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 250M
Temp. Coeff. of Resistance* 100 PPM/°C
251M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 640M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
641M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 2,500M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 350M
Temp. Coeff. of Resistance* 100 PPM/°C
351M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 875M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
876M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 1,750M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 300M
Temp. Coeff. of Resistance* 100 PPM/°C
301M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 750M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
751M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 4,500M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 1,750M
Temp. Coeff. of Resistance* 100 PPM/°C
1,751M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 4,500M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
4,501M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 625M
Temp. Coeff. of Resistance* 100 PPM/°C
626M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 1,550M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
1,551M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 950M
Temp. Coeff. of Resistance* 100 PPM/°C
951M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 2,400M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,401M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 800M
Temp. Coeff. of Resistance* 100 PPM/°C
801M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 2,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,001M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 1,200M
Temp. Coeff. of Resistance* 100 PPM/°C
1,201M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 2,600M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
2,601M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 1,000M
Temp. Coeff. of Resistance* 100 PPM/°C
1,001M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 3,900M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
3,901M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 1,600M
Temp. Coeff. of Resistance* 100 PPM/°C
1,601M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 4,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
4,001M to 5,000M
Temp. Coeff. of Resistance* 25 PPM/°C
1M to 5,000M
Temp. Coeff. of Resistance* 50 PPM/°C
1M to 1,200M
Temp. Coeff. of Resistance* 100 PPM/°C
1,201M to 5,000M
Voltage Coeff. of Resistance** Less than 2PPM/Volt
1M to 3,000M
Voltage Coeff. of Resistance** Less than 5PPM/Volt
3,001M to 5,000M
* Consult factory for TCR values operating higher than 125°C
**VC’s of Less than 2PPM/Volt are available. Contact Ohmite with your requirement
Performance Data
Test Method
MIL-STD-202, Method 103B, Condition B
Specification
±0.25%
Test Method
MIL-STD-202, Method 301, 750V
Specification
±0.25%
Test Method
MIL-STD-202, Method 302, Condition A or B
Specification
>10,000M or greater dry
Test Method
MIL-STD-202, Method 107G, Condition B, B-1, or F
Specification
±0.20%
Test Method
MIL-STD-202, Method 108A, Condition D
Specification
±1.0%
Test Method
MIL-STD-202, Method 215G
Specification
No degradation of coating or marking
Test Method
MIL-STD-202, Method 211A, Condition A or B
Specification
±0.25%
Test Method
MIL-STD-202, Method 213B, Condition I
Specification
±0.25%
Test Method
MIL-STD-202, Method 204D, Condition D
Specification
±.020%
Test Method
MIL-R-49462A, Par 4.8
Specification
±0.50%
Test Method
MIL-STD-202, Method 208F
Specification
>95% Coverage
Derating
Ordering Information
