TGHD Series Datasheet

Chassis Mounting Non-inductive High Power Resistors

#187 Quick connect tabs or fly wire leads
Flat type, 100W high power resistor
Air-cooled heat sink or water-cooling required.
Higher density packing, vibration-proof, insulation withstand voltage and perfect heat dissipation possible.

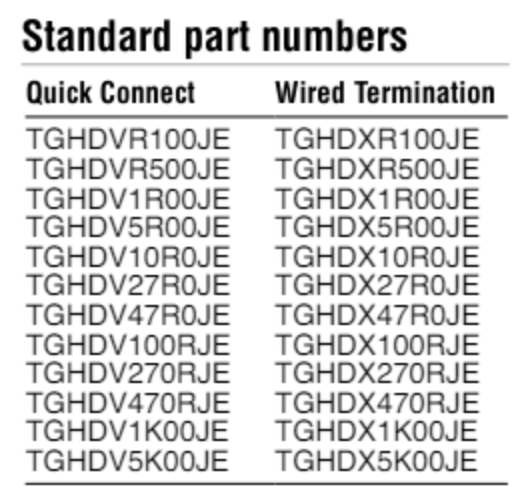

TGHDX contains wire leads and the TGHDV contains QC terminals.

100W at flange temperature -55 to +100°C (wire leads) or -55 to +25°C (quick connect)

0.5°C/W from resistor to flange

0.1Ω to 51kΩ; lowest 0.1 ohm is available

E24+ Modified E24, additionally, 2.0 and 5.0

±100 ppm/K (A) For -55 to +155°C

±5% (J)

-55 to +155°C at flange element surface

E = √P·R or 1000V

5000 VAC 60 seconds, leak current below 0.5mA

Mounting 1.6Nm max, 1.0Nm recommend

23g

Over 1000MΩ between terminals and flange
