TKH Series Datasheet

45W TO-252 Thick Film Resistor

TKH45 product image



Features

  • Small size, low profile, surge capable film resistor
  • 55°C to +175°C temperature range provides for automotive applications.
  • Low thermal resistance under 3.0°C/W shows excellent cooling performance.
  • Easy to replace D-PAK power resistor.
  • Excellent rf characteristics for high speed pulse operation./li>
  • Applications include snubber, gate control, bleeder, filter, rush current protection, PV, UPS and motor control inverters.

Characteristics

45W at -55°C to 25°C backing metal temperature; 1.0W attached on simple foot print.

3.0°C/W resistor to back metal

0.02Ω-510kΩ; 0.02Ω-0.91Ω are available at 5% tol. only. E24 plus 2.5, 4.0, 5.0, 8.0, and 16

±1% (F), ±5% (J)

Thick Film

2.65 pF Equivalent parallel capacitance, typical

14.65 nH Equivalent series inductance, typical

-55°C to+175°C

10A

less than 500V or √P•R P is rated power and R resistance

Requirement:

50W

Method:

Rated power X 2.0 and 5 second at 25°C with heat-sink

Requirement:

100ppm/°C

Method:

10Ω to 51kΩ, around 100 ppm/°C under 9.1Ω

Requirement:

1500 VAC

Method:

Terminal and back metal, 60 seconds. 1mA

Requirement:

±1.0%

Method:

25°C, 90 min. ON, 30 min. OFF, 1000h.

Requirement:

±1.0%

Method:

40°C, 90-95%RH, DC 0.1W, 1000 hours.

Requirement:

±0.25%

Method:

55°C,30 min.,+155°C, 30 min., 5cycle

Requirement:

±0.1%

Method:

350 ±5°C, 3 seconds

Requirement:

Over 95% of surface

Method:

230° ±5°C, 3 seconds

Requirement:

Over 1,000MΩ

Method:

Between terminals and back metal

Requirement:

±0.25%

Method:

IEC60068-2-6

Requirement:

0.36 gram

Method:

-

Derating

TKH45 Graph 1

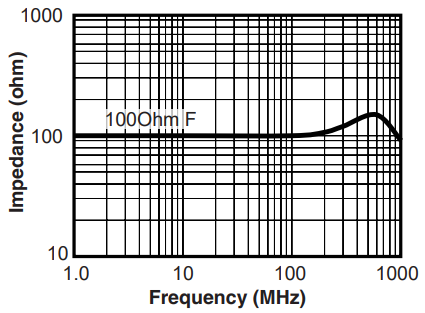

Frequency Characteristics

TKH45 Graph 2



Pulse Energy Durability

TKH45 Graph 3



Tentative continuous-pulse
power allowance at duty 0.01.
Load life test will be necessary
in actual equipments, because
curve may be changed by
resistance, repetition, duty and
operating temperature



Temperature Rise

TKH45 Graph 4



Actual temperature rise for TKH
that is jointed on a metal insulated circuit board of 47mm x
73mm x 1mm thick



Construction

TKH45 Construction

Dimensions

(mm)

TKH45 Dimensions 1
TKH45 Dimensions 2
TKH45 Dimensions 3



Tape And Reel

500 pcs per reel
330 mm reel size

TKH45 Tape

Ordering Information

TKH 45 Order Info



Standard Part Numbers

TKH45PR050JE-TR
TKH45PR100JE-TR
TKH45PR500JE-TR
TKH45P1R00FE-TR
TKH45P1R50FE-TR
TKH45P2R00FE-TR
TKH45P5R00FE-TR
TKH45P7R50FE-TR
TKH45P10R0FE-TR
TKH45P20R0FE-TR
TKH45P25R0FE-TR

TKH45P47R0FE-TR
TKH45P50R0FE-TR
TKH45P100RFE-TR
TKH45P150RFE-TR
TKH45P200RFE-TR
TKH45P300RFE-TR
TKH45P500RFE-TR
TKH45P1K00FE-TR
TKH45P2K50FE-TR
TKH45P5K00FE-TR
