Heat Sink Types

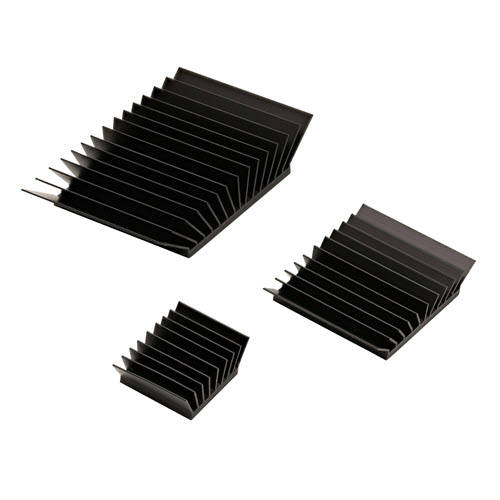

Extruded Aluminum Heatsinks

Extruded aluminum heatsinks are among the most common types used in industrial applications due to their versatility and cost-effectiveness. These heatsinks are manufactured by extruding aluminum profiles into various shapes and sizes, providing excellent thermal conductivity and lightweight construction. Extruded aluminum heatsinks feature a large surface area for heat dissipation, making them ideal for applications where space is limited.

Stamped Heatsinks

Stamped heatsinks are fabricated by stamping or forming thin metal sheets into intricate shapes with fins or channels for increased surface area. They offer a compact and lightweight design, making them suitable for space-constrained industrial applications. Stamped heatsinks are commonly used in electronic enclosures, power supplies, and LED lighting fixtures.

Bonded Fin Heatsinks

Bonded fin heatsinks consist of individual aluminum fins bonded to a base plate using epoxy or other adhesives.

This design allows for customization of the fin density and configuration to optimize heat dissipation for specific applications. Bonded fin heatsinks are favored for high-power applications where efficient thermal management is critical, such as power electronics and motor drives.

Liquid-Cooled Heatsinks

Liquid-cooled heatsinks utilize coolant (usually water or a water-glycol mixture) to dissipate heat away from electronic components. These heatsinks feature channels or tubes through which coolant flows, absorbing heat from the components and carrying it to a radiator for dissipation. Liquid-cooled heatsinks offer superior thermal performance and can handle higher power densities, making them suitable for demanding industrial applications such as laser systems and high-performance computing.

Heat Pipes

Heat pipes are passive heat transfer devices that utilize phase change principles to efficiently transport heat away from electronic components. They consist of a sealed tube containing a small amount of working fluid that evaporates at the hot end and condenses at the cold end, transferring heat in the process. Heat pipes are highly effective in spreading heat over a large area and are commonly used in industrial applications requiring compact and lightweight thermal solutions.

Thermoelectric Coolers (TECs)

TECs, also known as Peltier modules, are solid-state devices that use the Peltier effect to transfer heat away from electronic components. They operate by passing an electric current through a semiconductor junction, creating a temperature gradient that pumps heat from one side of the device to the other. TECs are suitable for industrial applications where precise temperature control and compact form factors are required, such as semiconductor manufacturing and medical equipment.

Advanced Composite Heatsinks

Advanced composite heatsinks combine materials such as graphite, carbon fibers, or ceramic matrices with metals to enhance thermal conductivity and reduce weight. These heatsinks offer superior thermal performance and can withstand harsh operating conditions, making them ideal for aerospace, automotive, and military applications.

In summary, the diverse range of heatsinks available for industrial applications provides engineers with a plethora of options for effective thermal management. Whether it's extruded aluminum heatsinks for cost-effective solutions, liquid-cooled heatsinks for high-power applications, or advanced composite heatsinks for extreme environments, selecting the right heatsink is crucial for optimizing the performance and reliability of industrial electronic systems.
