VM Series Datasheet

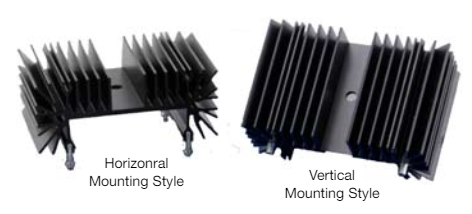

Mount:

vertical

Surface Area (in2 / mm2):

-

Weight (oz / g):

-

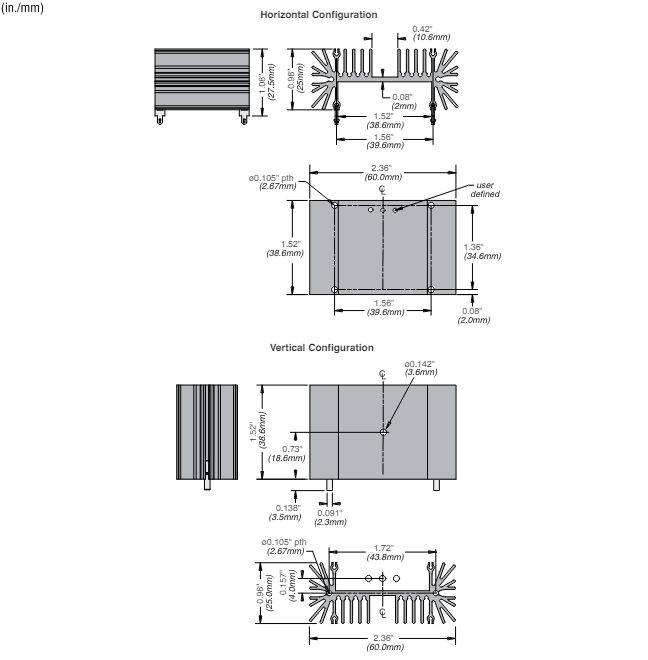

Length L or Height H (mm):

-

Surface Finish:

-

Mount:

horizontal

Surface Area (in2 / mm2):

39.6 / 25,546

Weight (oz / g):

1.48 / 42

Length L or Height H (mm):

38.6

Surface Finish:

anodized

Mount:

universal

Surface Area (in2 / mm2):

-

Weight (oz / g):

-

Length L or Height H (mm):

-

Surface Finish:

-

Aluminum Alloy 6063-T5 or Equivalent with either degreased or black anodized finish

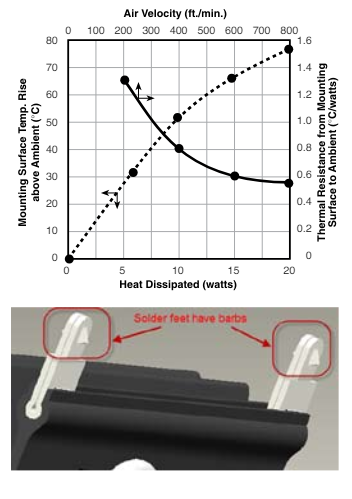

Cold-rolled Steel, Per ASTM A-366 with pure tin over copper strike. RoHS compliant. Barbed for secure attachment

for improvement, use thermal joint compound, 0.005 Grafoil (TGon 800 by Laird), or phase change material (Hi-Flow by Bergquist) Insulator (Optional) Sil-Pad 900-S, K6 800-S and K10 by Bergquist
