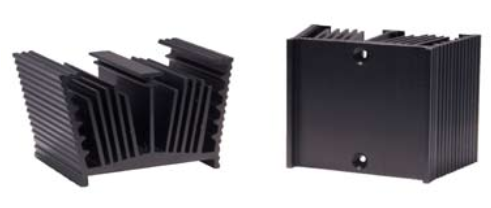

Ohmite introduces the VX series heat sinks for the Ohmite TGHE series and SOT-227 devices. This powerful heat sink has a unique profile that allows thru-hole soldering onto PCBs, panel mounting, or chassis mounting with fasteners. The VX series is an ideal heat sink that is designed for large power yet provides a light weight package and works with forced convection cooling.
Specifications
* Note: Anodized parts are standard; degreased available on request.
Characteristics
Thermal Performance
Power dissipation is 100W, single device
Heat load area 17 x 28mm metal tab
Ducted air flow
Max. case temp. on SOT227 (hot spot) is 69°C @ 5.08m/s (1000 fpm) ducted air flow.
PCB Mounting Examples
Heat sink assembly with a resistor and thermal interface material fastened with two M3.5 screws.
With Ohmite TGHE resistor.

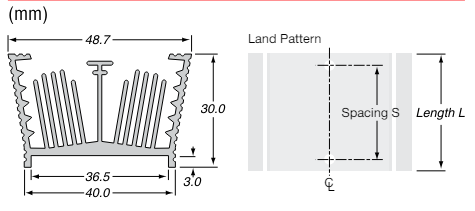

Dimensions
Ordering Information
