Types of Power Resistors: Wirewound, Thick Film, Ceramic & More

Carbon Composition Resistors

Carbon composition resistors are a very widely used type of power resistor, and have been used for many years. They are made of a mixture of carbon dust or graphite and a non-conductive ceramic powder. They're usually suitable for general-purpose applications with moderate power requirements. They are not known for having very tight tolerances.

(As one of the most traditional resistor technologies, carbon composition resistors are known for their ruggedness. Their construction involves forming a solid slug from a mixture of fine carbon powder and a non-conductive ceramic materia;. This design makes them well suited for general purpose roles where they aren't subjected to extreme power loads. The main trade-off with this type of resistor is its lack of precision; they are not known for tight tolerances, so their actual resistance value can vary significantly from what is printed on the component. )

Film Resistors

Film resistors are constructed by depositing a thin resistive film onto a ceramic substrate. They offer superior stability, accuracy, and noise performance compared to carbon composition resistors. They are generally available in two main types: metal film and thick film. Metal film resistors provide higher precision and stability, but are usually more expensive. Thick film power resistors are cost-effective and used in many types of applications.

Thick film resistors are often designed specifically for high-power applications. They offer high power dissipation and excellent thermal management compared to other resistor types.

(Film Resistors, created by applying a thin layer of resistive material onto a ceramic base, are a modern choice offering significantly better accuracy and stability than older carbon types. They primarily come in two main varieties for different jobs: metal film and thick film.

Metal film resistors are engineered for high precision tasks, providing excellent accuracy and stability where performance is critical, though they are typically more expensive. In contrast, thick film resistors are the versatile and cost-effective workhorse. They are specifically designed to handle high power and dissipate heat effectively, making them the go to choice for a vast range of everyday consumer electronics and industrial power supplies.)

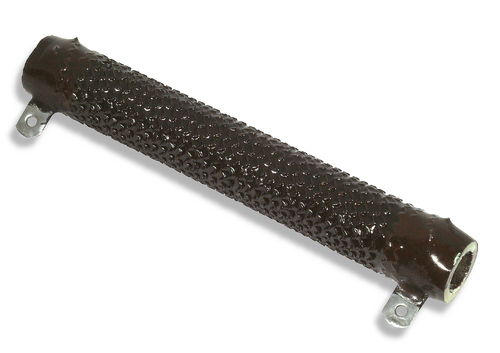

Wirewound Resistors

As the name suggests, wirewound resistors consist of a resistive wire wound around an insulating core. They provide high precision and power handling capabilities. They are ideal for high-power applications when stability and accuracy are very important. They offer low temperature coefficients for better performance over a wide temperature range.

(Wirewound resistors are made by carefully wrapping a special metal wire around a durable, heat-resistant core. This simple and robust design makes them both very powerful and highly precise. One of their biggest advantages is that they are extremely stable, meaning their resistance value stays accurate even when their temperature changes. This makes them an excellent choice for demanding, high power applications where both accuracy and reliability are critical.)

Thermistors

Thermistors are specialized resistors whose resistance varies significantly with temperature changes. Negative Temperature Coefficient (NTC) thermistors decrease resistance as temperature rises, commonly used in temperature sensing applications. Positive Temperature Coefficient (PTC) thermistors increase resistance as temperature rises, often used in overcurrent protection circuits.

When selecting a power resistor for your application, consider factors such as power rating, resistance value, tolerance, temperature coefficient, and environmental conditions. Additionally, ensure compatibility with other components in the circuit for optimal performance.

The diverse range of power resistors available offers engineers flexibility in designing circuits tailored to specific requirements. By understanding the characteristics and applications of different types of power resistors, you can make informed decisions to optimize the performance and reliability of your electronic systems.

(Beyond standard components, specialized resistors like thermistors offer unique capabilities by reacting to temperature. NTC (Negative Temperature Coefficient) thermistors decrease in resistance as temperature rise, making them ideal for precise temperature sensing. Conversely, PTC (Positive Temperature Coefficient) thermistors increase their resistance with heat, allowing them to function as self-resetting fuses for overcurrent protection.

Whether choosing a specialized thermistor or a conventional power resistor, the selection criteria are critical. To ensure optimal performance, a designer must evaluate the required power rating, resistance value, tolerance, and temperature coefficient, all within the context of the circuit's operating environment. Understanding these core characteristics across the diverse range of resistor types is the key to designing reliable, efficient, and robust electronic systems.)
