Forged Pin Technology Heatsink - P Series

P Series Heatsink

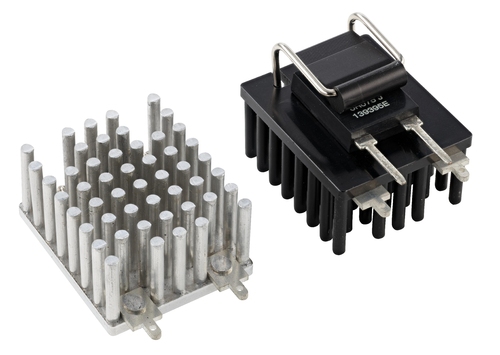

The new P series heatsink from Ohmite uses Forged Pin technology. The forged pins increase the surface area for greater free air convection. Forced air convection applications will benefit from the ability to force air in multiple directions through the pins. This creates versatility as the designer is no longer stuck forcing air in a single direction. Designed for TO-126, TO-220, TO-247 and TO-264 devices. Each heatsink utilizes the patented clipping system. This system requires on tools and can lock in the device with on finger. The cam locking system engages the device securely for a proper thermal connection. The P series from Ohmite is the ideal type of heat sink for high power density and small size (1U or 2U) electronic packaging with forced convection cooling.

P Series Heatsink Features

  • Thermally efficient Pin Fin design
  • Thermal resistance down to 7.46° C / W
  • Pins utilized to create more surface area
  • Air flow advantages created with pins; airflow can enter from any direction
  • Patented Cam Clip attachment for easy assembly with no tools required
  • Compatible with common industry package sizes: TO-220, TO-247, and TO-264
  • Available in anodized and degreased versions

Download Product PDF
